Canon PowerShot S80 LCD Screen Replacement

Geschrieben von: BrettH
  • Kommentare: 3
Canon PowerShot S80 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

The LCD screen of the Canon PowerShot S80 is necessary for the normal operation of the camera. The screen is also vulnerable to cracks, chips and water damage. This guide will show you how to replace your LCD screen.

  1. 2rJyRmhfkP3USfwv
    2rJyRmhfkP3USfwv
    VcJXaLpN1UpOOXM3

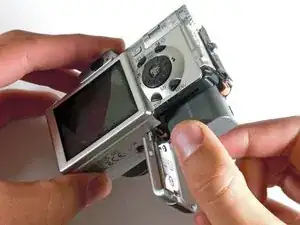

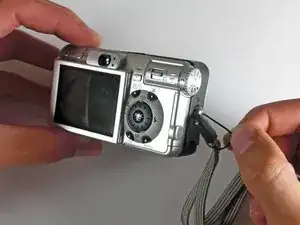

    • Remove the knot on the wrist lanyard.

    • Remove the battery and the memory card.

  2. eaPYJgRYPXn1cYXr
    eaPYJgRYPXn1cYXr
    6Y4CISKDIqlfwm3C

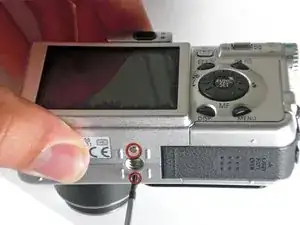

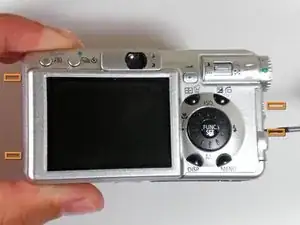

    • Remove all the screws from the sides of the outer casing.

    • Begin removing the screws on the bottom of the outer casing.

    • Remove the rest of the screws from the outer casing.

  3. NKxqiuJ5VcpLsol4
    NKxqiuJ5VcpLsol4
    VhSF2FWl5XybEJmJ
    WOLLFCepUHsdNVlr

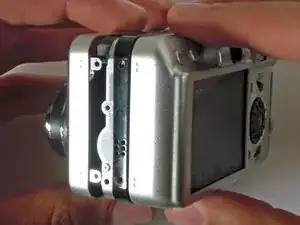

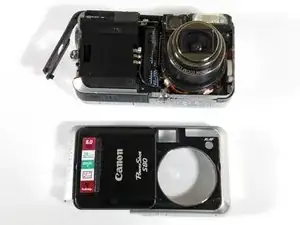

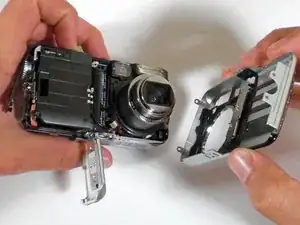

    • Gently pull the front cover off of the camera.

  4. ALMjUAxjANTbI1jg
    ALMjUAxjANTbI1jg
    FWuBaHQNt3MATpk3
    AZFYGOaOC1g5fvEK

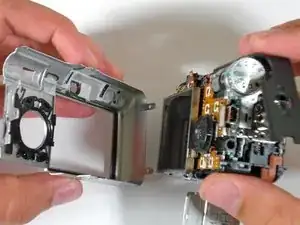

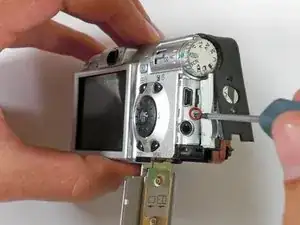

    • Open the "A/V Out Digital" cover. Remove the screw inside.

    • Gently pull off the back casing.

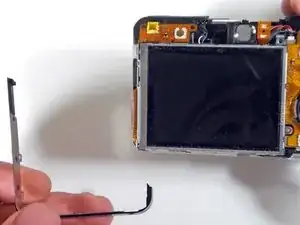

    • Remove the black "L" shaped piece of metal.

  5. KQdmlLTuDOvpTbKG

    • Remove the three screws that are holding the screen in place. Free the screen from the underlying components.

    • Be careful with the ribbon wire that is still attached on the left side of the screen.

  6. i3qUdJKijgBM5ih1
    i3qUdJKijgBM5ih1
    guwAvHChptGWrOYM

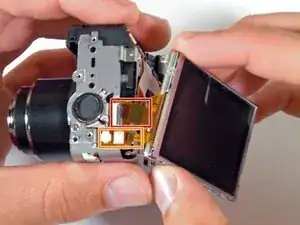

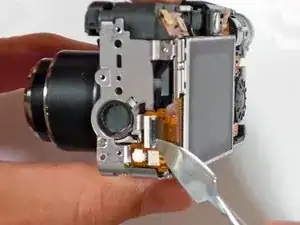

    • With the spudger, gently lift the black flap that is holding the wide ribbon cable wire in place.

    • Unplug the wide ribbon cable.

    • Unplug the narrow ribbon cable to free the LCD screen from the camera body.

    The author failed to mention a couple things. First, the screen is in a holder which you remove, then after pulling off some electrical tape, you have to yank the actual screen out. Second, I only had two screws to pull the screen holder out, not three. Third, the thing that you have to pull to get the screen ribbon cable out is actually a tiny black hinge, so don't worry if it suddenly snaps back. Finally, to put the thing back together, it really helps if you have a tweezers to get the ribbon cables back into place.

    and fyi replacement screens available from canon parts department for about 50 bucks.

    steven -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

BrettH

Mitglied seit: 29/10/09

219 Reputation

2 Kommentare

I presume the narrow ribbon cable supplies power to the backlight behind the screen? I replaced the combined screen and backlight assembly. I now have an image but it is extremely dark, barely visible. Perhaps the backlight didn't come on?

The contacts on both the wide ribbon and the narrow ribbon were corroded, probably the source of the problem.

Any suggestions?

Clive Williams -

I found very easy to follow the instructions provided. I just commenta that the last step should be completed by the separation between the screen and the support plate, which is not shown. However if one reaches that point (having the replacement part at hands) it has easy to find the next step of the “surgery”.

Goodinstruction. Thanks to this I brought to new life my Canon Powrr shot S80

attilio.brighenti -
