Einleitung

This guide serves to remove and replace the motherboard.

  1. 2rJyRmhfkP3USfwv
    2rJyRmhfkP3USfwv
    VcJXaLpN1UpOOXM3
    • Remove the knot on the wrist lanyard.

    • Remove the battery and the memory card.

  2. eaPYJgRYPXn1cYXr
    eaPYJgRYPXn1cYXr
    6Y4CISKDIqlfwm3C
    • Remove all the screws from the sides of the outer casing.

    • Begin removing the screws on the bottom of the outer casing.

    • Remove the rest of the screws from the outer casing.

  3. NKxqiuJ5VcpLsol4
    NKxqiuJ5VcpLsol4
    VhSF2FWl5XybEJmJ
    WOLLFCepUHsdNVlr
    • Gently pull the front cover off of the camera.

  4. ALMjUAxjANTbI1jg
    ALMjUAxjANTbI1jg
    FWuBaHQNt3MATpk3
    AZFYGOaOC1g5fvEK
    • Open the "A/V Out Digital" cover. Remove the screw inside.

    • Gently pull off the back casing.

    • Remove the black "L" shaped piece of metal.

  5. KQdmlLTuDOvpTbKG
    • Remove the three screws that are holding the screen in place. Free the screen from the underlying components.

    • Be careful with the ribbon wire that is still attached on the left side of the screen.

  6. i3qUdJKijgBM5ih1
    i3qUdJKijgBM5ih1
    guwAvHChptGWrOYM
    • With the spudger, gently lift the black flap that is holding the wide ribbon cable wire in place.

    • Unplug the wide ribbon cable.

    • Unplug the narrow ribbon cable to free the LCD screen from the camera body.

    The author failed to mention a couple things. First, the screen is in a holder which you remove, then after pulling off some electrical tape, you have to yank the actual screen out. Second, I only had two screws to pull the screen holder out, not three. Third, the thing that you have to pull to get the screen ribbon cable out is actually a tiny black hinge, so don't worry if it suddenly snaps back. Finally, to put the thing back together, it really helps if you have a tweezers to get the ribbon cables back into place.

    and fyi replacement screens available from canon parts department for about 50 bucks.

    steven -

  7. a5oyAQTklFEAysGN
    • Remove the screws holding down the function set button.

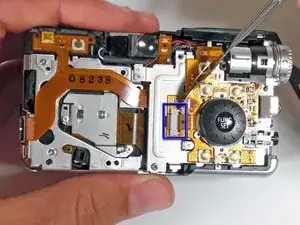

  8. byKtBNVMHH625MiG
    • Gently pry up the tab with a metal spudger and remove the ribbon cable.

  9. hnBDQxYPACfsL6SI

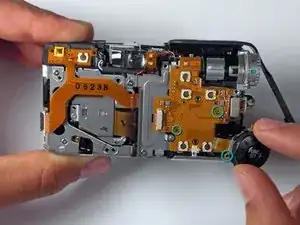

    • Be mindful of the pins as you lift up and remove the function/set button.

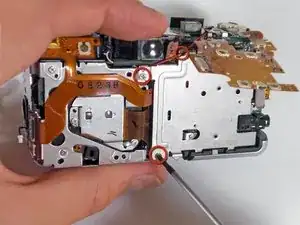

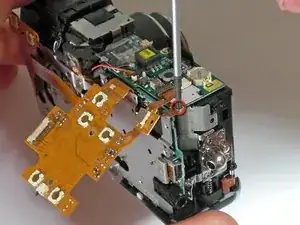

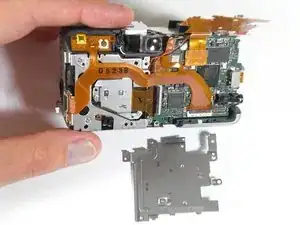

  10. sVGs3onKSqXouqXx
    sVGs3onKSqXouqXx
    nLUgetNIeBaTPhGR
    VrNhw63Z2pPb5fvR
    • Remove the screws from the metal plate.

    • Gently remove the metal plate.

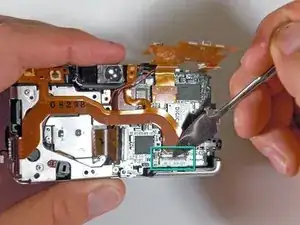

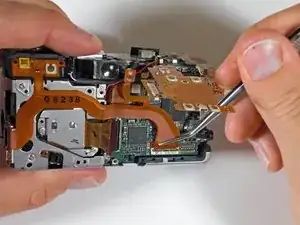

  11. o4a6TrwcdqwewFyD
    o4a6TrwcdqwewFyD
    ALLasfaDrw6fjXvD
    • Lift the tab connecting the ribbon cable and detach.

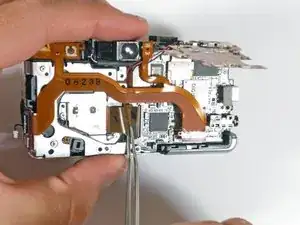

  12. nUBrjs6JDa5YMCZw
    nUBrjs6JDa5YMCZw
    GUQJcITUDa5aVxwF

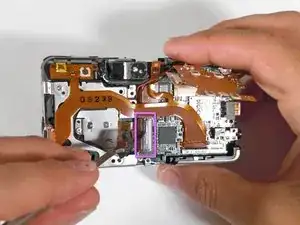

    • Use a spudger to lift up the ribbon cable tab.

    • Detach the ribbon cable.

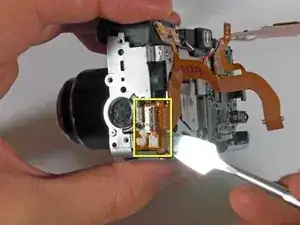

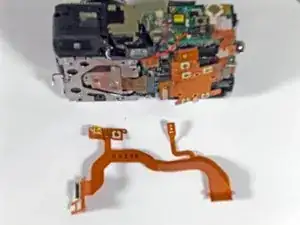

  13. GYcvmbhHbQ3MrPIe
    GYcvmbhHbQ3MrPIe
    jdwBykMSYywfDqEe
    • Gently remove the entire ribbon cable connection to release the ribbon cable from the camera.

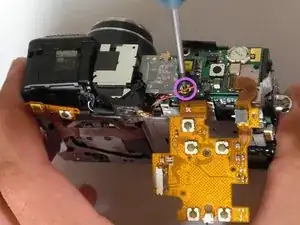

  14. RouDbOYDaAWLsBy4
    • Unscrew the circuit board from the flash unit.

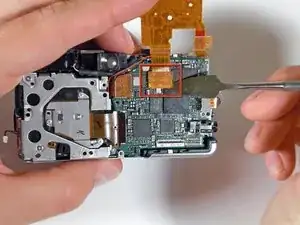

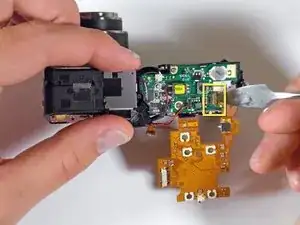

  15. DYQhXoggJVra4kkw
    DYQhXoggJVra4kkw
    lAK2XsBAsUBNIs2l
    YKxSNScCCZDpwfTy

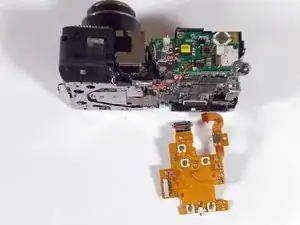

    • Pry up the ribbon cable connection and remove it from the camera.

    • Lift the ribbon cable tab and completely detach the cable from the camera.

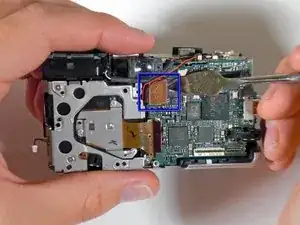

  16. mLiSSC1wCaUvSiD5
    • Pry up the connection, being mindful of the light adhesive.

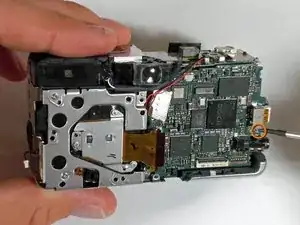

  17. kRXPUe1Qfa1Hg2BR
    • Remove the last screw holding the motherboard to the main body.

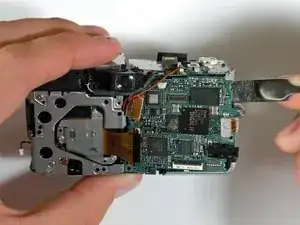

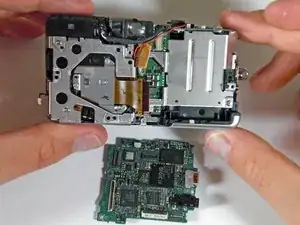

  18. BcIUqw1WqnR2IOsJ
    BcIUqw1WqnR2IOsJ
    fuVyrmqNACwnCBnm
    • Use a spudger to gently lift the motherboard from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
