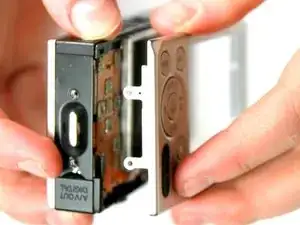

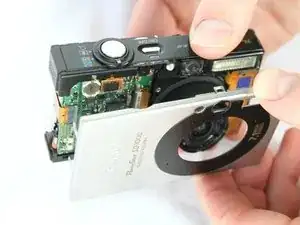

Pull the back panel away from the camera body, starting at the end with the function buttons.
-
-
-

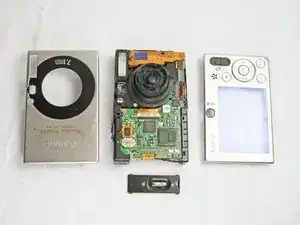

Place the front cover, back cover, and wrist strap mount in a safe place until you are ready for reassembly.
-
-
-

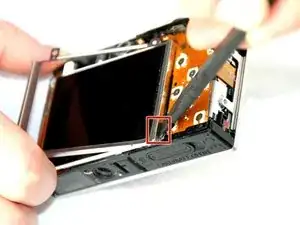

Push the metal frame away from the metal tab using the spudger to detach the frame.
-
Rotate the metal frame upwards.
-
-
-
Carefully lift the metal frame from the camera.
-

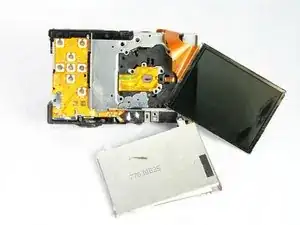

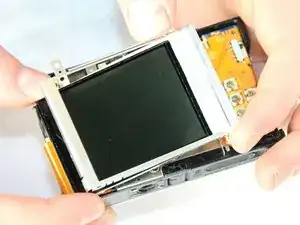

Remove the black LCD screen, leaving the thin lens pieces in place.
-
-
-

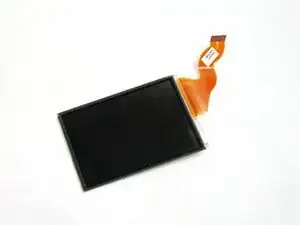

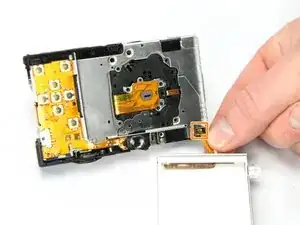

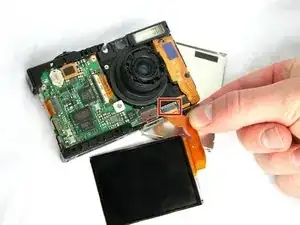

Carefully pull on the orange connector ribbon to disconnect the LCD screen.
-

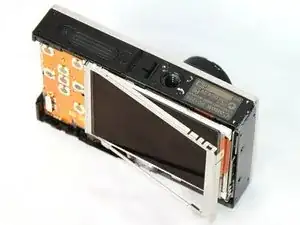

The LCD screen can be pulled out of the frame before disconnecting its connector ribbon.
-
-
-

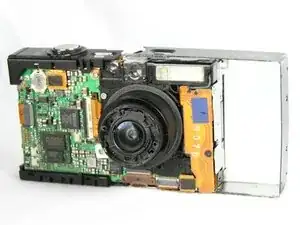

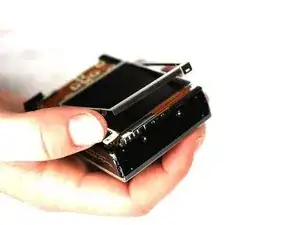

Slide the metal frame off of the camera on the side that is closest to the flash mechanism.
-
-
-

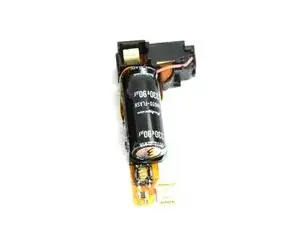

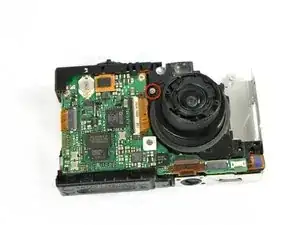

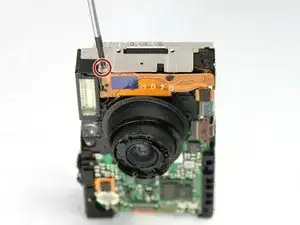

Use a Phillips #00 screwdriver to remove the 2.4 mm screw that secures the flash assembly.
-
-
-
Use the spudger to gently and carefully disconnect the flash assembly ribbon from the black connector lock.
-
-
-
Using the spudger remove the shutter button by prying the small tab on the front side of the camera.
-
-
-

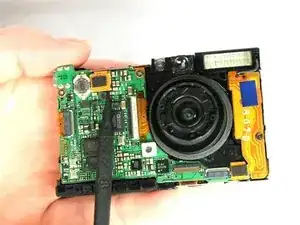

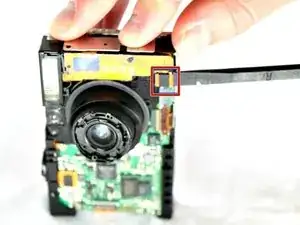

With a spudger disconnect the orange connector ribbon as shown.
-

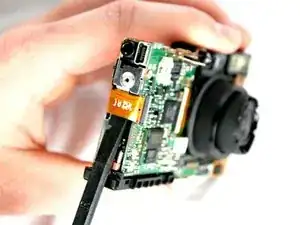

Disconnect the orange connector ribbon that is located under the now removed shutter button.
-
-
-

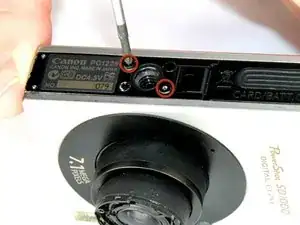

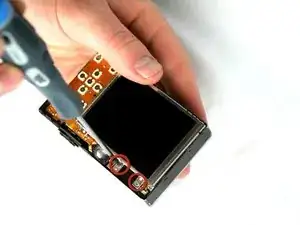

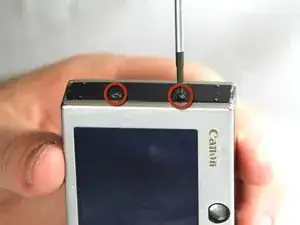

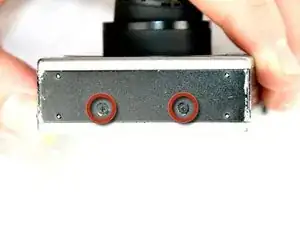

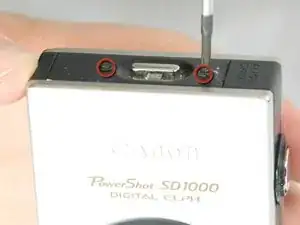

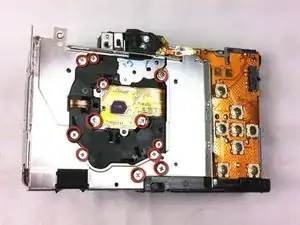

Remove the screws shown. Start with the outside 6 (3-2.90mm & 3-2.40mm) screws on the metal frame. Then remove the 6 (2.40mm) screws on the back of the lens piece
-
-
-

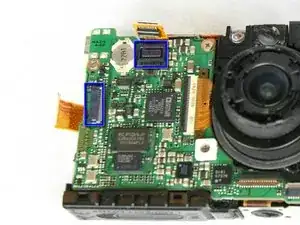

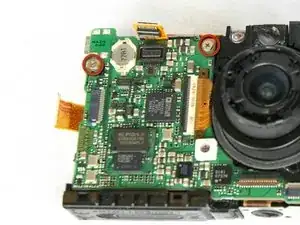

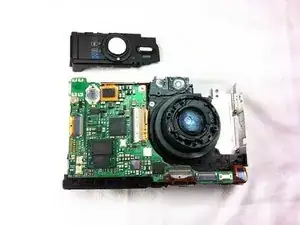

Detach the mother board with lens from body of camera.
-

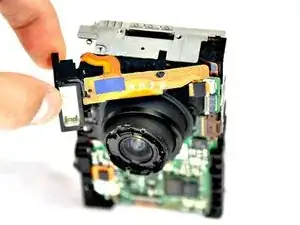

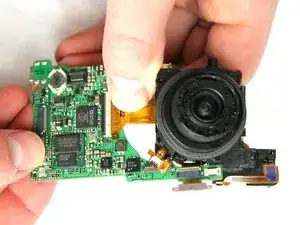

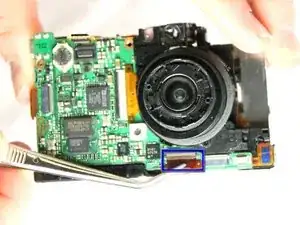

Carefully remove the lens from the motherboard. Use tweezers to remove any of the 4 connecting ribbons from the lens.
-

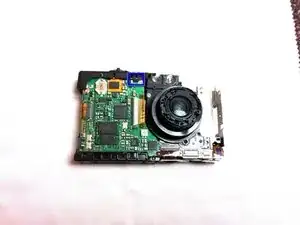

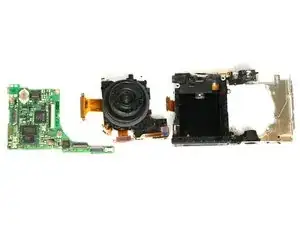

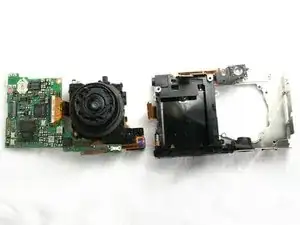

Your lens has been removed from the motherboard and bottom framing.
-
To reassemble your device, follow these instructions in reverse order.
