Einleitung

  1. EajwHR3EUkpKLroe
    EajwHR3EUkpKLroe
    pPDXLlAYZ1OSliPA
    • Remove the two 2.9 mm screws from the side panel closest to the camera lens.

  2. whM6P5nIAPTxoZJ2
    • Remove the two 2.9 mm screws from the camera bottom panel.

  3. a6PBfWvuc1gs62yk
    • Remove the two 2.9 mm screws from the side panel farthest from the lens.

  4. m1JgNdHMiOpqdLyY
    • Pull the back panel away from the camera body, starting at the end with the function buttons.

  5. EOx6jSEoGNcSRLVx
    • Remove the small cover panel and the attached wrist strap mount.

  6. 4Z3Ss316aqyWCoxU
    • Remove the front cover by gently pulling it away from the camera body.

  7. QTvYUcYatrkcYVot
    • Place the front cover, back cover, and wrist strap mount in a safe place until you are ready for reassembly.

  8. FNTqehOkpifQYLEg
    • Remove the two 2.4 mm screws located at the top of the LCD panel.

  9. pdbtgFlwHZSOWIqs
    pdbtgFlwHZSOWIqs
    uW1UnZTAahoVp2UV
    • Pull up the metal frame surrounding the LCD screen starting at the side of the camera.

  10. 5Q2HPuRD1vN6ZAFG
    • Push the metal frame away from the metal tab using the spudger to detach the frame.

    • Rotate the metal frame upwards.

    • The metal framing should be attached by a metal tab towards the bottom of the camera, near the function buttons.

  11. uN2N1TBledQgjxFx
    uN2N1TBledQgjxFx
    FXlLViabNEdixrAi
    • Carefully lift the metal frame from the camera.

    • Remove the black LCD screen, leaving the thin lens pieces in place.

    • BE CAREFUL; both components are attached by an orange connector ribbon and cannot be removed yet.

  12. xaGEcEWJqwfwaNKM
    xaGEcEWJqwfwaNKM
    xHGwesriYRh5TNOc
    JFayVVBcoYuRSGGD
    • Carefully pull on the orange connector ribbon to disconnect the LCD screen.

    • The LCD screen can be pulled out of the frame before disconnecting its connector ribbon.

    • Tweezers are helpful to disconnect the ribbon.

  13. a11OBSrJGxdEABtB
    a11OBSrJGxdEABtB
    CGdwecDS1ijKslS2
    • Slide the metal frame off of the camera on the side that is closest to the flash mechanism.

  14. xOCvfLET5j6flXi6
    • Use a Phillips #00 screwdriver to remove the 2.4 mm screw that secures the flash assembly.

  15. KSGKnodpkAPqjHis
    • Use the spudger to gently and carefully disconnect the flash assembly ribbon from the black connector lock.

  16. boPxymFfQNPD1rGj
    boPxymFfQNPD1rGj
    OQGumIDt2UMYrXkC
    • Pull the flash assembly forward out of the camera to remove it.

    • BE CAREFUL when handling the flash assembly. Touching the capacitor (the black cylinder attached to the flash assembly) could shock you.

  17. T5aaMjtsENs4HkTm
    T5aaMjtsENs4HkTm
    YYTVty6ic2mbw2iZ
    • Using the spudger, take off the shutter button by prying the small tab on the front side of the camera.

  18. hDsFnU5hIIVUkoTP
    • Remove the 2.90mm screw from the lens, near the motherboard.

  19. xbVN3ZrxVN1LW54P
    xbVN3ZrxVN1LW54P
    JuV5sIteESGjVsJO
    • Using the spudger remove the shutter button by prying the small tab on the front side of the camera.

  20. O6UUKwIp2J2OF2k1
    O6UUKwIp2J2OF2k1
    WKNKTlvqFc1j6lfv
    • With a spudger disconnect the orange connector ribbon as shown.

    • Disconnect the orange connector ribbon that is located under the now removed shutter button.

  21. WHcXAX4DBbT6LlEy
    • Remove the two 2.90 mm screws from the motherboard.

  22. FLlUfvFNLTyKOmRH
    • With Tweezers detach the bottom orange ribbon.

  23. QdQdK6jQk5oMeSbX
    • Remove the screws shown. Start with the outside 6 (3-2.90mm & 3-2.40mm) screws on the metal frame. Then remove the 6 (2.40mm) screws on the back of the lens piece

  24. WYdvir22dk2VEaHF
    • With spudger gently remove the Viewfinder Window that is directly above the lens.

    Remove screw attaching viewfinder piece to lens framing.

    Adam Biesok -

  25. i2gVY64fAZ5nysTG
    i2gVY64fAZ5nysTG
    TK4lpCNyQMvaAYro
    oficSoguATraRQ1D
    • Detach the mother board with lens from body of camera.

    • Carefully remove the lens from the motherboard. Use tweezers to remove any of the 4 connecting ribbons from the lens.

    • Your lens has been removed from the motherboard and bottom framing.

  26. fH4cOmtt4JiOGLnF

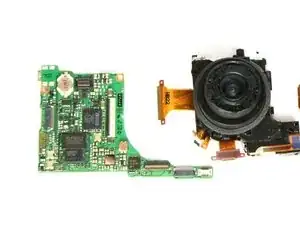

    • The motherboard (left) is now separated from the lens.

Abschluss

To reassemble your device, follow these instructions in reverse order.
