This guide will show you how to properly replace your Flash Assembly on your Canon PowerShot SD1300 IS.
Werkzeuge
-
-

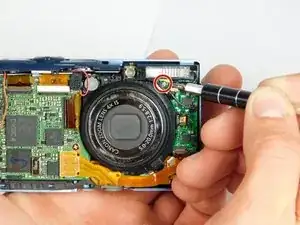

Remove the two 2mm J00 screws on the right exterior.
-

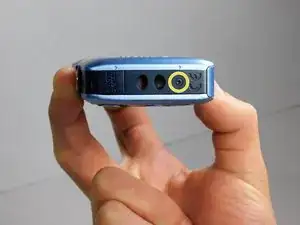

Remove a single 4 mm J00 on the bottom exterior.
-

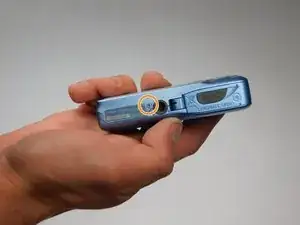

Remove a single 3mm J00 on the left exterior.
-
-
-

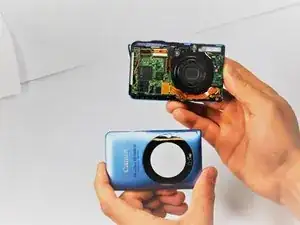

Once the front shell of the camera is removed the back shell should slide off just the same.
-
-
-

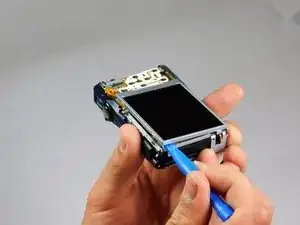

Use plastic opening tool to remove the screen to gain access to the screws to remove the Flash Assembly.
-
-
-

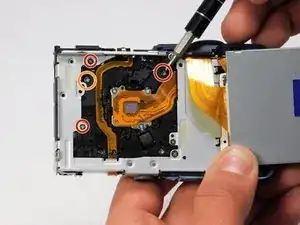

Remove the two 3mm J00 screws under the screen.
-
Remove the 4mm J00 screws under the screen.
-
The flash assembly is now released and should be able to be removed from the front side of the camera.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
