This guide will show you how to properly replace a faulty lens on your Canon PowerShot SD1300 IS.

  1. kmuVCeiJmCeC2oXR
    kmuVCeiJmCeC2oXR
    SJSJuGVASPUkpZmA
    KLwOGwyYXrUZEyP1

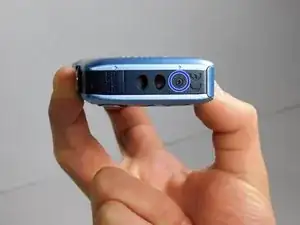

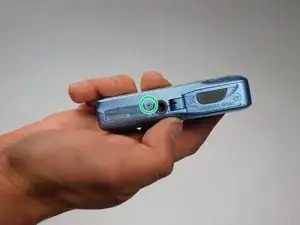

    • Remove the two 2mm J00 screws on the right exterior.

    • Remove a single 4 mm J00 on the bottom exterior.

    • Remove a single 3mm J00 on the left exterior.

  2. 4qvSuEtMlLZkZSyV

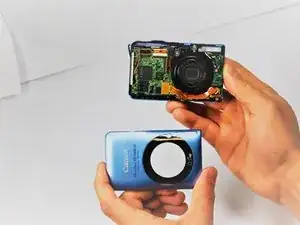

    • Once the front shell of the camera is removed the back shell should slide off just the same.

  3. ggmXNjXKQZB3UUxh

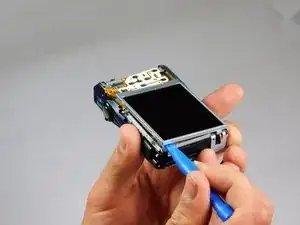

    • Use one of your plastic opening tools to separate the screen from the main body of your PowerShot.

  4. OGaNOAnwMn1Nb5OB

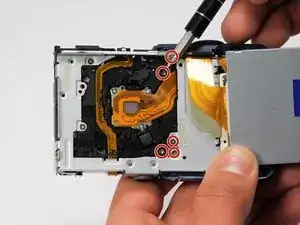

    • Remove five of the 3mm J00 screws under the screen to release the lens for replacement.

    • Lens assembly should be removed through the front of the camera once screws are removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Clayton

Mitglied seit: 20/03/17

560 Reputation

Ein Kommentar

I have a SD1300 IS and it has another case screw beneath a plastic cover just below the USB port.

Also step 4 shows 2 screws to remove on the lens that do not go through the metal frame. These should not be removed for lens removal.

It is necessary on mine to remove the 2 screws on the left side of the metal frame that attach to the lens assy.
