Einleitung
This guide will show you how to properly replace the screen on your CanonPowershot SD1300 IS.
Werkzeuge
-
-
Remove the two 2mm J00 screws on the right exterior.
-

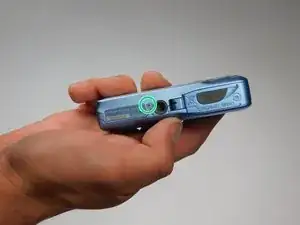

Remove a single 4 mm J00 on the bottom exterior.
-

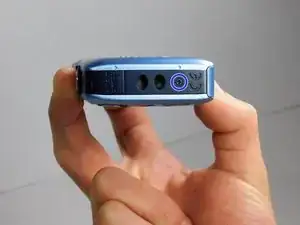

Remove a single 3mm J00 on the left exterior.
-
-
-

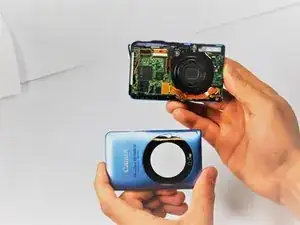

Once the front shell of the camera is removed the back shell should slide off just the same.
-
-
-

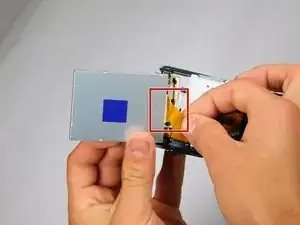

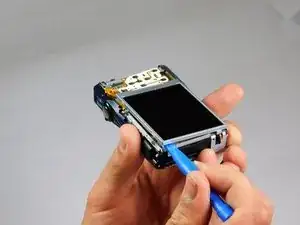

Use one of your plastic opening tools to separate the screen from the main body of your PowerShot.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
