Einleitung
The image capture button can break or become stuck. This guide details how to replace the image capture button and the surrounding plastic housing on the Canon PowerShot SD1400 IS camera.
-
-

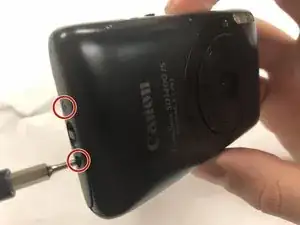

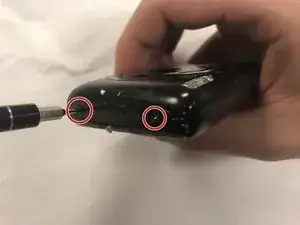

Use a Phillips #00 driver to remove the four 2.0 mm Phillips screws on the camera housing.
-
-
-
Use a Phillips #1 driver to remove the one 4.0 mm Phillips screw located on the bottom of the camera.
-
-
-

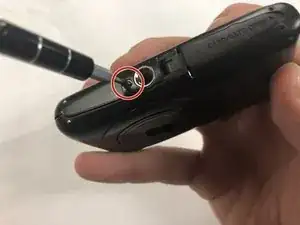

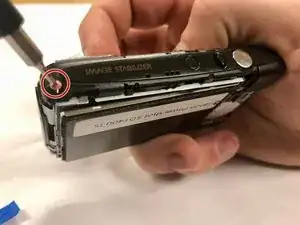

Use a Phillips #0 driver to remove the one 3.0 mm Phillips copper screw from the top of the camera.
-
-
-

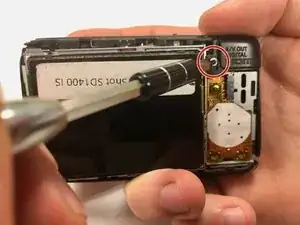

Use a Phillips #0 driver to remove the one 3.0 mm Phillips silver screw from the rear face of the camera.
-
-
-

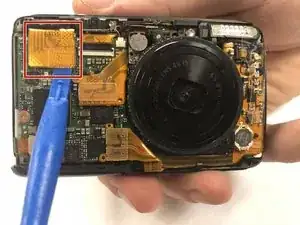

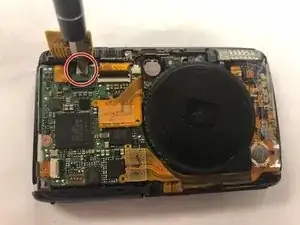

Use a plastic spudger to lift the golden film off of the microchip on the front face of the camera, exposing a screw.
-
-
-

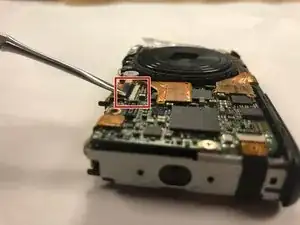

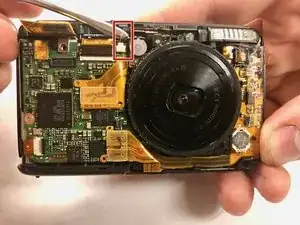

Use a metal spudger to carefully pry the small black tab away from the connector that secures one end of the golden film.
-
-
-

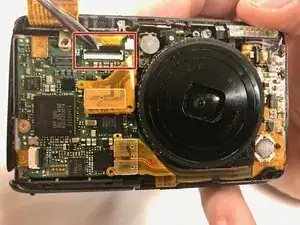

Carefully insert a metal spudger under the two clusters of wires that are plugged into the small chip on the face of the camera.
-
Pull the wires parallel to the face of the camera to disconnect them from the small chip.
-
-
-

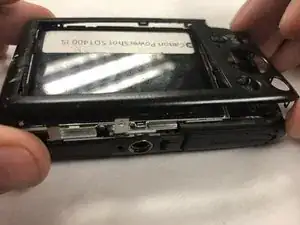

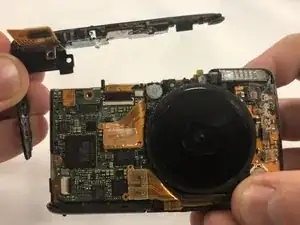

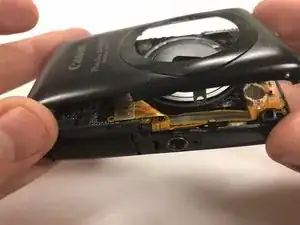

The image capture button housing can now be removed from the body of the camera and replaced.
-
Follow these instructions in reverse order to reassemble the device.
