Canon PowerShot SD1400 IS Motherboard Replacement

Geschrieben von: Faris Rezwan
  • Kommentare: 0
Canon PowerShot SD1400 IS Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 - 30 Minuten

Einleitung

The motherboard can be damaged because of overheat and a short circuit which can cause the camera to stop working. This guide will show how to replace the motherboard in the device.

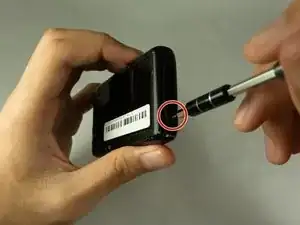

  1. LQlUKQJWrS4NPfxf
    LQlUKQJWrS4NPfxf
    bA1VBxQOhpRmSRms
    SHFHdNoDYOMNmnfh

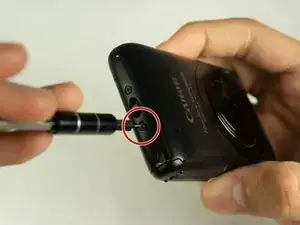

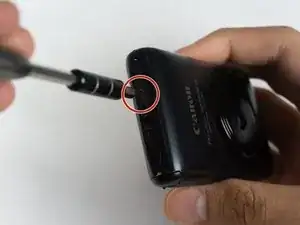

    • Remove two 2mm Phillips #00 screws on both sides of the camera.

  2. Ut5NnQq2mUUCOSqP

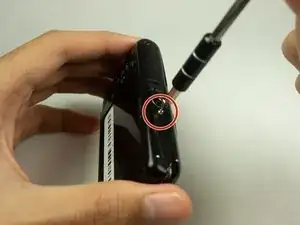

    • Remove the 4mm Phillips #000 screw from the bottom.

  3. KR1cCyQRT4nfCrPS

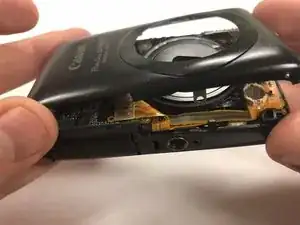

    • Remove the front face panel of the camera.

  4. scbT4fNk2hqZ5VUJ

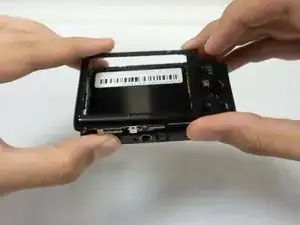

    • Remove the rear panel of the camera by using hand with firm pressure.

    • The user interface panel, side and bottom panel of the camera may fall down by itself while you are taking the rear panel of the camera.

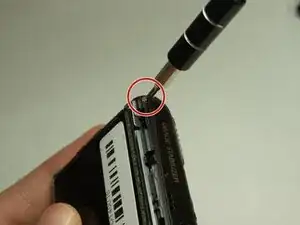

  5. HBrsd4tsFWBay43v

    • Remove the 3mm Phillips #000 screw from the top of the camera.

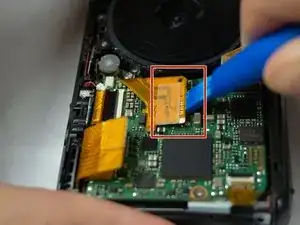

  6. glWiKEqQG3ukHD3x
    glWiKEqQG3ukHD3x
    GOumNAUkgwXElTiU
    6CdxYgsp4IcMMCaD

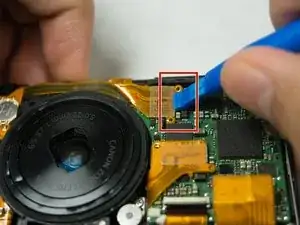

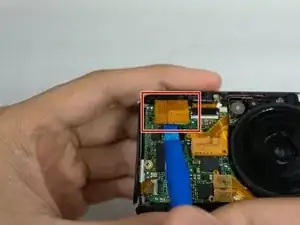

    • Pry the three golden ribbons off the motherboard using a plastic opening tool.

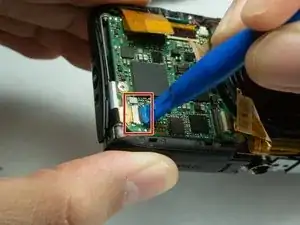

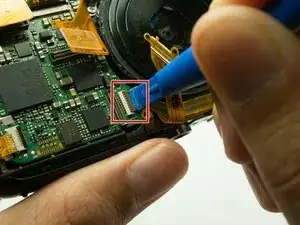

  7. yPkALYUFdTTQCeXl
    yPkALYUFdTTQCeXl
    bNMrrcAgSDaYr4rG
    2UnwVhexm5ByZPZV

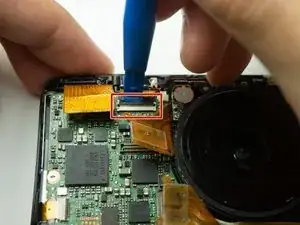

    • Use a plastic opening tool to flip up the retaining flap on the ribbon cable ZIF socket.

    • Once released, the small black tab will point straight away from the front face of the camera and the golden film will no longer be attached to the motherboard.

  8. RCHSCUTDY5LsHyQZ
    RCHSCUTDY5LsHyQZ
    gSfPvULxDJoELhef

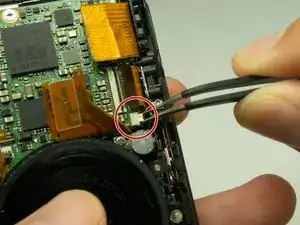

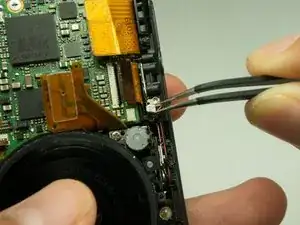

    • Unplug the small chip from the face of the camera using a pair of tweezers.

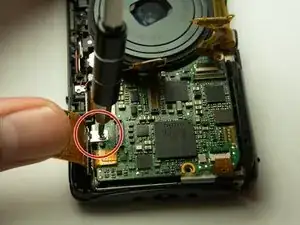

  9. MMNnt6gPTVVqltmm
    MMNnt6gPTVVqltmm
    wCVcJ4JRE1FRQ2rZ
    4JTRJS1eWIUxFvaI

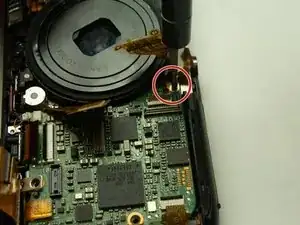

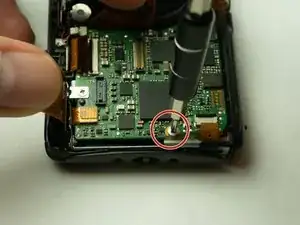

    • Remove the three 3mm Phillips #000 screws from the motherboard.

  10. ErHVuyZkrCnYoHVu

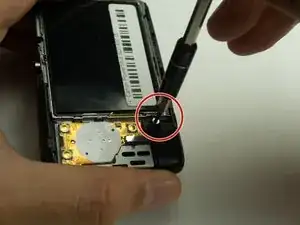

    • Remove the 3mm Phillips #000 screw from the rear face of the camera.

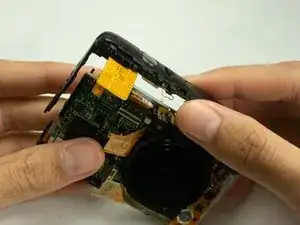

  11. K2SLXKjLNJsTPTju

    • Remove the top panel from the camera.

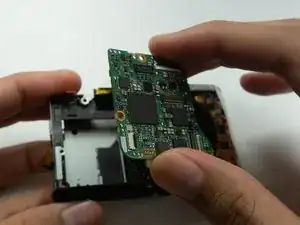

  12. IaEtSFYqgUU5Zdnu
    IaEtSFYqgUU5Zdnu
    iPTEDCNyiXmYeKPe

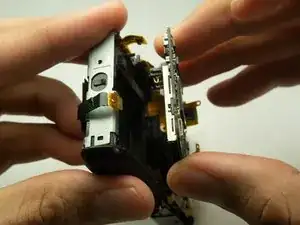

    • Remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
