Canon PowerShot SD1400 IS USB Port Replacement

Geschrieben von: Faris Rezwan
  • Kommentare: 0
Canon PowerShot SD1400 IS USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

15 - 30 Minuten

Einleitung

USB Port can be damaged from force exertion on the pins which can prevent it to connect to an external device. This guide will show the steps to replace the USB port in the device.

  1. PZZxLiQpK4BxWmEM
    PZZxLiQpK4BxWmEM
    raWmbtx1bsaHtMQL
    3D6XA5gMMsgyyKHg

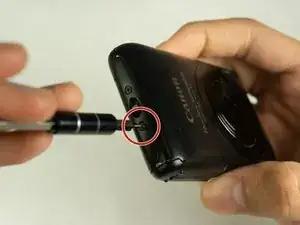

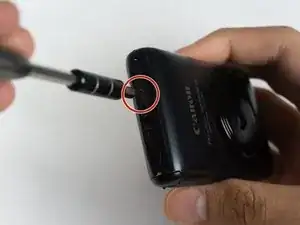

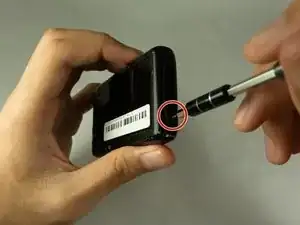

    • Remove the four 2mm Phillips #00 screws on both sides of the camera.

  2. fmgmpRcVbCZ2KWuD

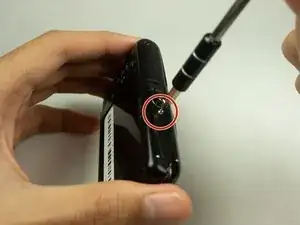

    • Remove the single 4mm Phillips #00 screw from the bottom.

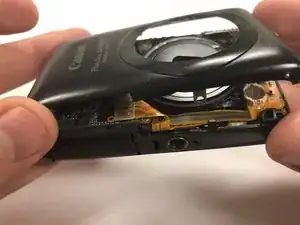

  3. CFcvkTpbYEGcexYV

    • Remove the front face panel off of the camera.

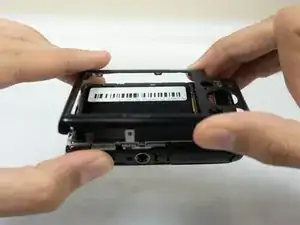

  4. Eng3oAUosgAIFPpF

    • Remove the rear panel of the camera.

    • The user interface panel, side and bottom panel of the camera may fall down by itself while you are taking the rear panel of the camera.

  5. DmY1BNMoPGt3YUfc

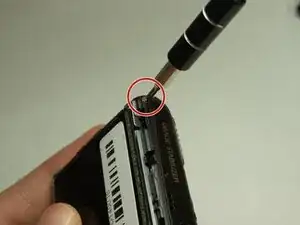

    • Remove the 3mm Phillips #000 screw from the top of the camera.

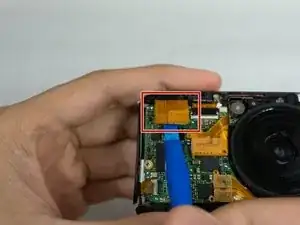

  6. SQcGlPGYOCNwouem

    • Pry the golden ribbon cable from the motherboard with a plastic opening tool.

    • A screw will be visible underneath the golden ribbon after prying it.

  7. LxWUWpfTtvWRL1LD

    • Remove the 3mm Phillips #000 screw from the motherboard.

  8. AnteGDxYMCmJINHU

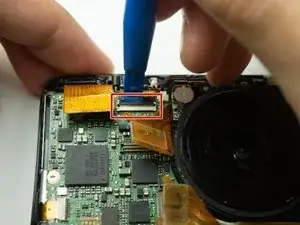

    • Use a plastic opening tool to flip up the retaining flap on the ribbon cable ZIF socket.

  9. 1NpKcRqVXToFjRpJ
    1NpKcRqVXToFjRpJ
    IqvyGPyJU1M6IdXp

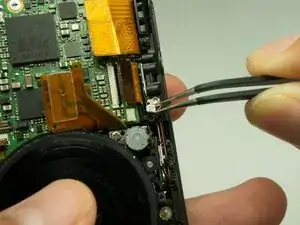

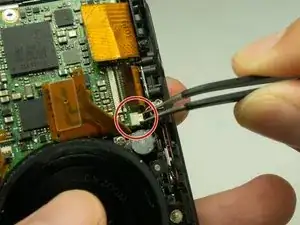

    • Unplug the small chip from the face of the camera using a pair of tweezers.

  10. xT12A2TsSDFEWHpe

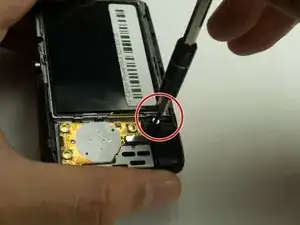

    • Remove the 3mm Phillips #000 screw from the rear face of the camera.

  11. CPvYP2kOHGs3ZXqO

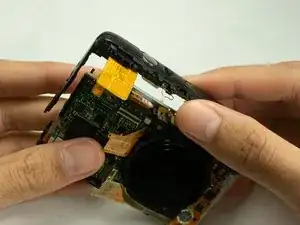

    • Remove the top panel from the camera.

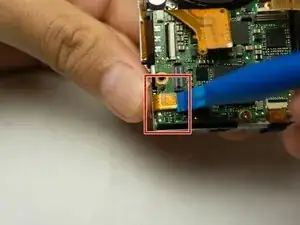

  12. IMSCSKG6Bfxbctec

    • Pry the golden ribbon cable attached to the USB port using a plastic opening tool.

  13. OsC6k4Wxy1WQmYLT

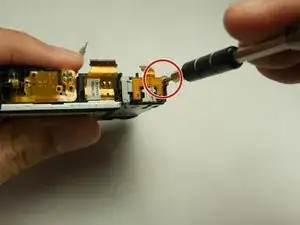

    • Remove the 3mm Phillips #000 screw located at the top right of the USB port.

  14. BSjGkAc4soE1yhdb
    BSjGkAc4soE1yhdb
    TvRUlRNgkwoJcZud

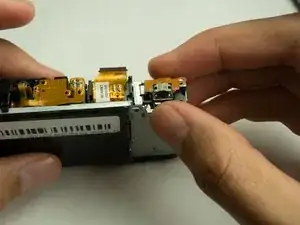

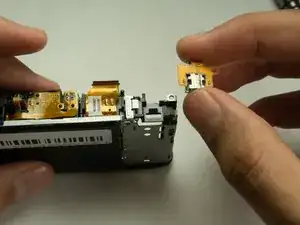

    • Remove the USB port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
