Use this guide to replace the control panel in your camera.
Werkzeuge
-
-
Remove the two 2mm black screws that are located on the underside of the camera.
-
Remove the two 3mm silver screws from the right side of camera.
-
-
-
Remove the 2mm screw from the back of the camera.
-
Remove two 2mm screws from the bottom of the camera.
-
Remove two 2mm screws the left side of camera.
-
-
-

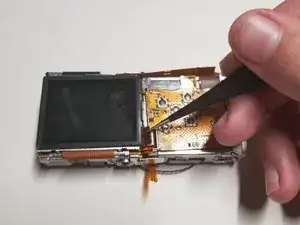

Use the tweezers to pull up on the piece of black plastic connected to the ribbon to unhook and remove the ribbon connected to the screen.
-
-
-

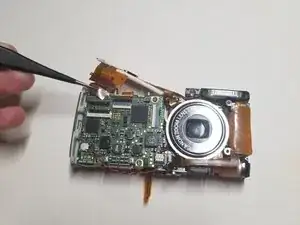

Turn the camera over to the side with the lens and remove the ribbon on the left side.
-

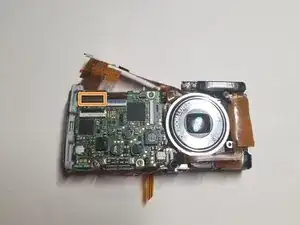

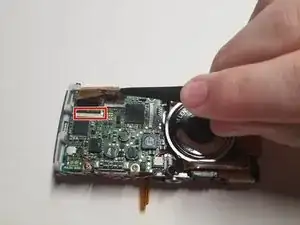

After removing the ribbon there will be a second ribbon to remove that was hiding underneath the first ribbon.
-
-
-

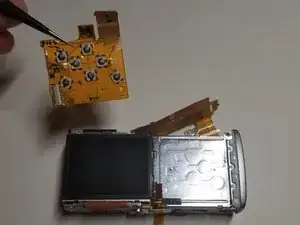

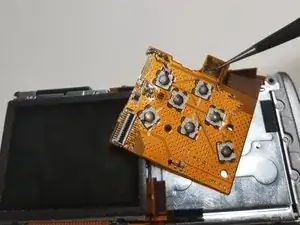

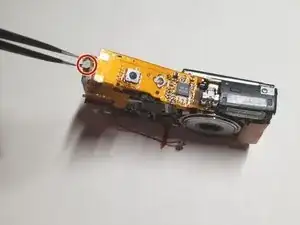

Lift up the button that connects to the power button of the camera so you can remove the control panel.
-
To reassemble your device, follow these instructions in reverse order.
