Canon PowerShot SD500 Digital ELPH Shutter Button Replacement

Geschrieben von: Taylor Shields
  • Kommentare: 0
Canon PowerShot SD500 Digital ELPH Shutter Button Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

5 Minuten

Einleitung

The shutter button is one of the most commonly used buttons on a camera. Therefore, it is also the most likely to break.

  1. UQgnr14RfcD3mAyL

    • Slide open the battery cover.

    • Push the small orange tab to the side so the battery can be removed.

  2. U1AZWXVmMEtdyqtP
    U1AZWXVmMEtdyqtP
    camUGdUevG6ovB1T

    • Slide the battery out of the battery compartment.

  3. HIpHCY4njALhJl1P
    HIpHCY4njALhJl1P
    MRiPxjysjMjylFOX

    • Two Phillips screws need to be removed using a #00 Phillips screwdriver. The upper screw is under the USB port cover, which can simply be pulled away gently from the casing. the lower screw is visible on the panel.

    • The screws are different sizes. The .125 inch screw is located under the USB port cover. The 0.85 inch screw goes in the lower hole on the panel.

    • When looking at the back of the camera, these two screws are on the right panel of the camera.

  4. TACKFVnsJ4E3DV4G

    • Remove the right side cover from the camera casing.

  5. aIUQFYeQfRJNysLB

    • Remove a .07 inch Phillips screw using a #00 Phillips screwdriver.

  6. FIKCV4oAkPDSJPDl

    • Remove two .085 inch Phillips screws from the left side of the camera using a #00 Philips screwdriver.

  7. kROKnMK5mAmXtOu2

    • Remove the left side cover from the camera.

  8. wGkX1Uhkl6gjHHZE

    • Remove three .15 inch Phillips screws from the bottom of the camera using a #00 Phillips screwdriver.

  9. URBG6gRghbydhEIl
    URBG6gRghbydhEIl
    Xw1QetN1IUucrWkG

    • Once the casing is unscrewed, hold the camera with one side facing down, and lift the opposite face of the casing to open it.

    • Remove the internal camera components and layout out all pieces on a clean surface.

    • The front and back cover may require gentle rocking to remove.

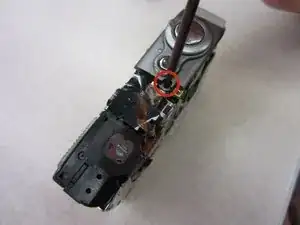

  10. ZsI1TQPwyHkSpeSa

    • Unscrew one .235 inch long Phillips screw using a #00 Phillips screwdriver from the top of the camera.

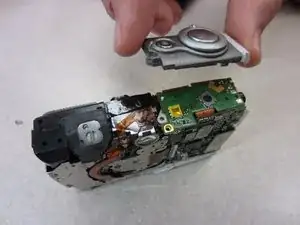

  11. wITAJCGFMqID2n1e

    • Gently remove the shutter button unit from the rest of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
