Einleitung
The wrist strap mount is the piece that the wrist strap wraps around. The wrist strap allows the user to conveniently carry around the Powershot SD500 Digital ELPH. If broken, the camera will no longer have a wrist strap.
Werkzeuge
-
-
Slide open the battery cover.
-
Push the small orange tab to the side so the battery can be removed.
-
-
-
Two Phillips screws need to be removed using a #00 Phillips screwdriver. The upper screw is under the USB port cover, which can simply be pulled away gently from the casing. the lower screw is visible on the panel.
-
The screws are different sizes. The .125 inch screw is located under the USB port cover. The 0.85 inch screw goes in the lower hole on the panel.
-
-
-
Remove two .085 inch Phillips screws from the left side of the camera using a #00 Philips screwdriver.
-
-
-
Remove three .15 inch Phillips screws from the bottom of the camera using a #00 Phillips screwdriver.
-
-
-
Once the casing is unscrewed, hold the camera with one side facing down, and lift the opposite face of the casing to open it.
-
Remove the internal camera components and layout out all pieces on a clean surface.
-
-
-

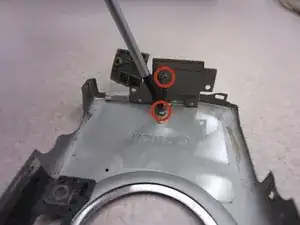

Unscrew two Phillips screws using a #00 Phillips screwdriver from front cover of the camera.
-
-
-

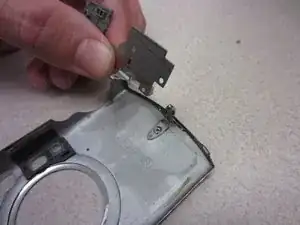

Remove plastic cover from front side of camera.
-

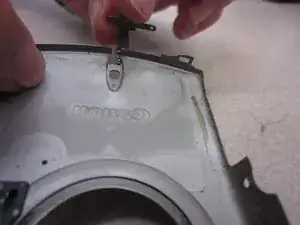

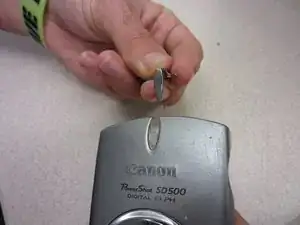

Remove and pull away wrist strap mount from the front side of the camera.
-
To reassemble your device, follow these instructions in reverse order.
