Canon PowerShot SD700 E18 Error Replacement

Geschrieben von: Aaron Lee
  • Kommentare: 0
Canon PowerShot SD700 E18 Error Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

If you experience the E18 error, go to this site and try their solutions. http://www.e18error.com/repair.html

If you still experience the error, you can follow this guide to disassemble the camera and manually clean the inside of the camera and the lens.

  1. qYKF5GXMXCgO5D5O

    • Turn off the camera by pressing the power button above the LCD screen.

    • Remove the battery and memory card.

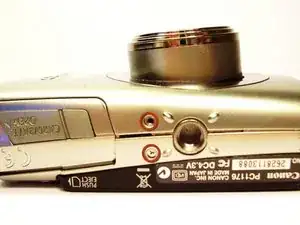

  2. tuRtbvBEwOERpACe

    • Remove the screws on the bottom of the camera using a Phillip's #00 screwdriver.

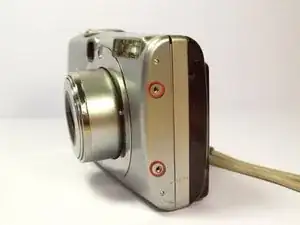

  3. UJyBXyDKiI5Jqh3J

    • Use a Phillips #00 screwdriver to remove the screws on the right side of the camera.

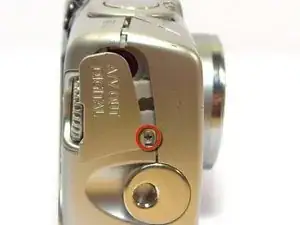

  4. Qs2evXXk4gNhZM5q

    • Use a Phillips #00 screwdriver to remove the screws on the left of the camera underneath the "A/V out Digital" cover flap.

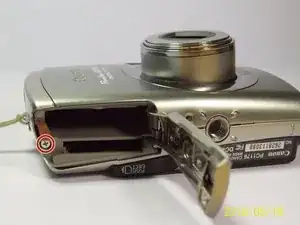

  5. YBbt6BODIFR5p5dM

    • Remove the screw on the bottom of the camera near the battery and memory card slots using a Phillips #00 screwdriver.

    • This screw will be longer than the rest of the screws.

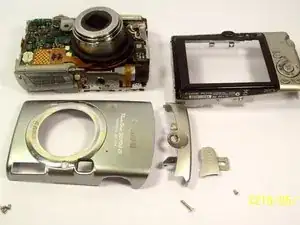

  6. Nk1plWGxIQHAJwE4

    • Remove the front, back, and side casings from the camera.

  7. eRDJYbsSUTHD4EY5

    • Clean the lens and the area surrounding the lens with a brush.

    • Tweezers can be helpful when removing sand.

    • Reassemble the camera and if the E18 error persists, further disassembly of the camera may be required.

Abschluss

To reassemble your device, follow these instructions in reverse order.
