This manual is for replacing the function/set button located on the back of the camera.
-
-
Slide the light grey tab toward the edge of the camera using your fingernail.
-
Pull the light grey tab up to open the door.
-
-
-
Slide the small brown tab toward the edge of the camera using your fingernail.
-
Let go of the brown tab when the battery pops up.
-
Grab battery and pull straight up to remove from holder.
-
-
-
Remove the following 4 screws:
-
Two 2.8 mm Phillips #00 at the bottom of the camera.
-
Two 2.75 mm Phillips #00 on the opposite side of the wrist strap.
-
-
-
Open the A/V OUT DIGITAL flap on the side of the wrist strap.
-
Remove the 2.75 mm Phillips #00 under the A/V OUT DIGITAL flap on the side of the wrist strap.
-
-
-
On the bottom of the camera, use your fingernail to slide the light gray tab towards the edge of the camera.
-
Slide light gray door and pull up to open the door.
-
Remove the 8.35 mm Phillips #00 next to the brown tab that holds the battery.
-
-
-
Gently pull the front cover straight out from the camera. This will expose the wiring on the front of the camera.
-
-
-

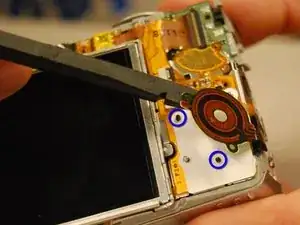

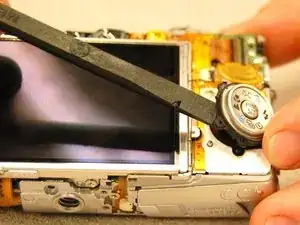

Identify and remove the plastic function set button. Do this by gently prying up as indicated in the photo.
-
-
-
Remove the ribbon cable by lifting on the flat tab and pulling the ribbon cable from the connection.
-
To reassemble your device, follow these instructions in reverse order.
