Einleitung

Use this guide to remove and replace a faulty motherboard in your Canon PowerShot SD870 IS.

  1. JDATFbYQyQYeT2L5
    • Remove the wrist strap, if present.

    • Remove the lithium-ion battery.

  2. H2pHMq6YgcRNIr52
    H2pHMq6YgcRNIr52
    aL3RRjkQUmbMBf54
    EJ3H4jpfQQEmNKe1
    • Remove the two 4 mm Phillips #00 screws on the bottom of the camera.

    • Remove the screw next to the wrist strap attachment.

    • Pull up the “A/V OUT DIGITAL” cover and remove the screw above the USB port.

    Note: The PH000 bit from my iFixit toolkit fits the screws better than the PH00 described above. The 00 bit is too pointed to bottom out in the screw and therefore does not engage as well.

    wayne -

  3. gdGJV4iuJnODHwqW
    • Carefully unhook the “A/V OUT DIGITAL” cover from the hinge.

    With the camera I was repairing, to remove the front cover as shown below, it was necessary to first remove the two smaller screws on the opposite end of the body from the “A/V OUT DIGITAL” cover. That is . . . the screws shown in step 5 which in my camera also hold the front cover in place (design change apparently).

    RWM

    wayne -

  4. Yk2lZgkK4Fa3QDbI
    Yk2lZgkK4Fa3QDbI
    aPuaXHl1pwRNqdQP
    • Pull the front cover from the camera by using gentle upward pressure.

  5. sQ1WIRNsXTwBpO2s
    sQ1WIRNsXTwBpO2s
    gjITfEQ4sqhbe5ja
    • Remove the two Phillips #00 screws from the flat end of the camera.

    • Remove the black L-shaped side cover plate.

    • Remove the silver u-shaped retainer plate.

  6. V1R1tqoyAR621DwD
    • Slide the back casing off.

  7. yjG3MBo4MLwQSTAD
    • The first screw that needs to be removed is located on the bottom of the camera, on the left hand side.

    • Using a Phillips #00 screwdriver remove the 0.133in silver screw on the bottom left-hand side.

  8. EZJ12UyUqHHooVSx
    EZJ12UyUqHHooVSx
    4GnmjP2LvPIeMxDw
    • The second screw that needs to be removed is located on the top of the camera.

    • Using the same Phillips head screwdriver, remove the last 0.133in silver screw.

    • This will detach a silver U-shaped piece that was holding LCD screen on. Remove the piece and put it to the side.

  9. ic1yJEKeMMiSAuuv
    • The LCD screen should now only be attached by the LCD data cable.

    • Lift the screen from the right side and use a small screwdriver or other small opening device to flip the black portion of the connector upward to unlock it.

    • Carefully slide the data cable out of the connector.

    • The LCD should still be connected by the backlight cable.

  10. 6WlkHjXbd5ejiysT
    6WlkHjXbd5ejiysT
    jrKkoxfOHIjWmQNB
    • To remove the backlight cable, use another small opening device to unlock the backlight cable.

    • Carefully slide out the backlight cable.

    • The LCD screen should now be fully detached from the camera body.

  11. YvRhRnZFsbGWRtk4
    • The LCD screen casing is connected by 4 claws located on the top and bottom on the left and right hand side.

    • Carefully disengage the claws by gently prying them off one by one.

    • Once the claws are disengaged, the back of the casing will still be connected to the front casing by the backlight cable.

    • Carefully peel the backlight cable off of the casing.

  12. i2VuqHlg4cAiZBjC
    • The LCD screen and housing should now be in three pieces:

    • LCD screen

    • LCD screen frame

    • LCD screen back housing

    • The LCD screen itself can now be removed and fixed/replaced.

  13. Sv4EsZIBIDrypABO
    Sv4EsZIBIDrypABO
    TRFRiDeSG4suLFsP
    • With the case and LCD screen removed, you are ready to remove the release button.

    • Begin by using the Philips #00 screwdriver to remove two silver 0.159in screws on the top and front of the camera.

  14. skphsvFsYOKbMwAd
    • The top plastic piece holding the release button should be held on only by a red-and-black wire connector to the logic board.

    • Remove the connector from the logic board and detach the release button housing from the camera.

  15. NQEfCE5ypX2nD1E4
    NQEfCE5ypX2nD1E4
    euT2JcPYS1NwwRia
    • With the plastic housing for the release button removed from the camera, use the Philips #00 screwdriver to remove two silver 0.090in screws.

    • The release button can now be removed and fixed or replaced.

  16. FMIKE1KlFvVq4SjH
    FMIKE1KlFvVq4SjH
    RgwXjilihCEPl6fk

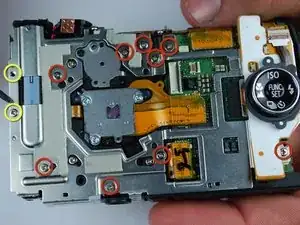

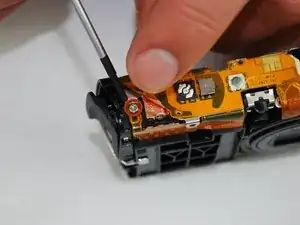

    • With the case, LCD screen, and release button housing removed, the logic board can be accessed and removed for replacement or repair.

    • Begin by using the Philips #00 screwdriver to remove two silver 0.080in screws on the left side of the metal housing plate (yellow circles).

    • Use the Philips #00 screwdriver to remove nine silver screws from the back and top of the camera (red circles).

    • You will have to lift the Function button and its wiring up from the pins holding it in place to access some of the screws.

  17. jWoalProX6iRbLmQ

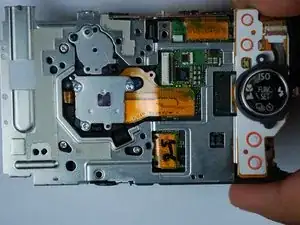

    • The metal back plate can now be removed. All that is holding it on at this point are pins and wires connected to the logic board.

  18. 6EyWUEQ6RILAjDxM
    6EyWUEQ6RILAjDxM
    TXB42XRTs2vMVAkX

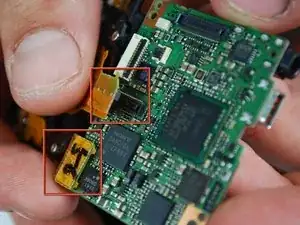

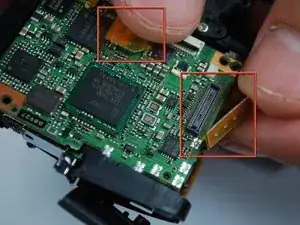

    • Now, the wires connected to the logic board must be removed. Gently pull them out of their holders on the logic board.

    • Once the connectors are disconnected, the logic board can be removed for repair or replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
