Einleitung
This guide walks you through how to replace a format wheel on your Canon PowerShot SX160 IS by disassembling a portion of the camera to access the non operational piece.
Werkzeuge
-
-

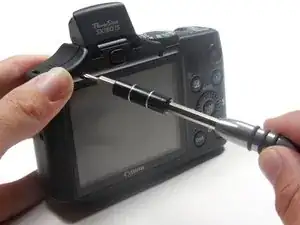

Use a #0 phillips screwdriver to unscrew the two black 4.8mm phillips head screws from the back of the camera.
-
-
-

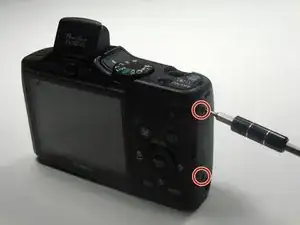

Use a #0 phillips screwdriver to unscrew the two black 4.8mm phillips head screws from the side of the camera.
-

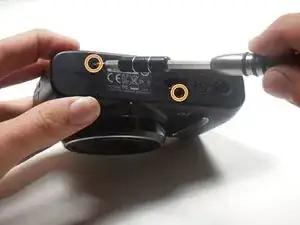

Use a #0 phillips screwdriver to unscrew the two black 4.8mm phillips head screws from the bottom of the camera.
-
-
-

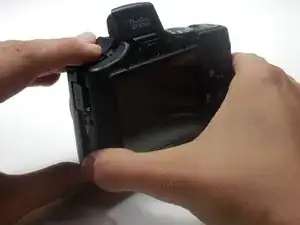

Use your hands to gently separate the back plate from the camera.
-

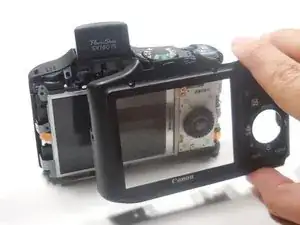

Slowly pull off the camera plate until it fully detaches from the camera.
-
-
-

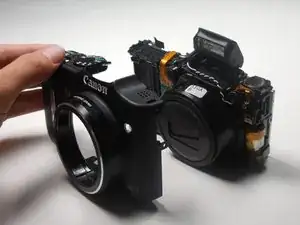

Use your hands to gently separate the front plate from the camera.
-

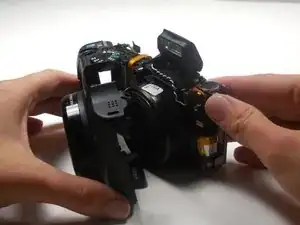

Slowly pull off the camera plate until it fully detaches from the camera.
-

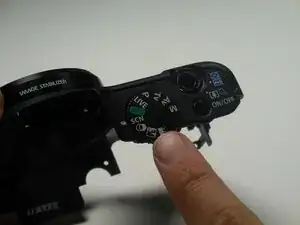

Congratulations, you have successfully replaced your format wheel. To reassemble your device, follow these instructions in reverse order.
