Canon PowerShot SX160 IS Function Wheel Replacement

Geschrieben von: Jamie Secretan
  • Kommentare: 1
Canon PowerShot SX160 IS Function Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide provides a breakdown that shows how to replace the function wheel on your Canon PowerShot SX160 IS by disassembling a portion of the camera to access the function wheel.

  1. LnOT6GhNDWaPhrgG
    LnOT6GhNDWaPhrgG
    AVlv5NyHq12rG1iD
    SPGGe5LF5BsWjw1E

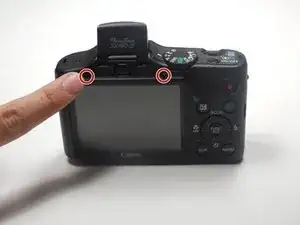

    • Unscrew the 2-4.8mm black Phillips head screws from the front of the camera using a #0 Phillips screwdriver.

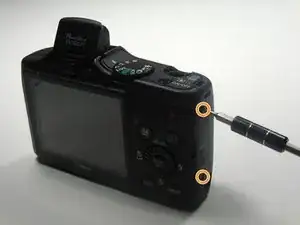

    • Unscrew the 2-4.8mm black Phillips head screws from the side of the camera using a #0 Phillips screwdriver.

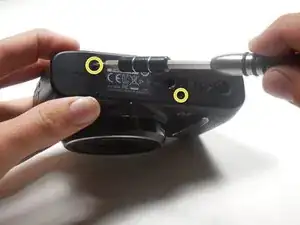

    • Unscrew the 3-4.8mm black Phillips head screws from the bottom of the camera using a #0 Phillips screwdriver.

  2. 2VSdf2PZrtLYFvl2
    2VSdf2PZrtLYFvl2
    mojDZaghwoISRGk4

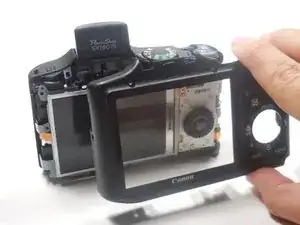

    • Using your hands, gently separate the back panel from the camera.

    • Continue to pull the back panel until it completely detaches from the camera.

  3. eROFFXDqklRnIwqM
    eROFFXDqklRnIwqM
    EQHBx6gECrI6XCLI

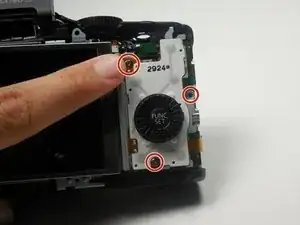

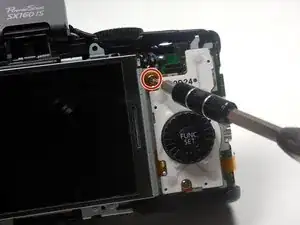

    • Use a #0 phillips screwdriver to unscrew the 3-3.75mm silver Phillips head screws from the function wheel panel of the camera.

  4. KH6WkXHRrPaHSfkl

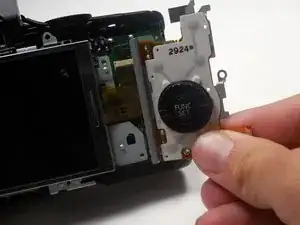

    • Remove and replace the function wheel.

Abschluss

Congratulations, you have successfully replaced your function wheel. To reassemble your device, follow these instructions in reverse order.
