Einleitung
This guide walks you through how to replace a broken LCD screen on your Canon PowerShot SX160 IS by disassembling a portion of the camera to access the non operational piece.
Werkzeuge
-
-

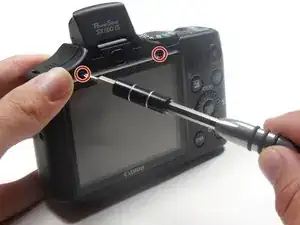

Unscrew the 2-4.8mm black screws from the front of the camera using a #0 Phillips head screw driver.
-
Unscrew the 2-4.8mm black screws from the side of the camera using a #0 Phillips head screw driver.
-

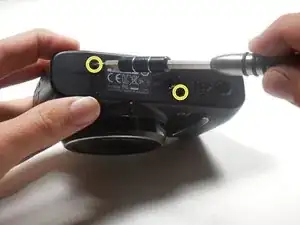

Unscrew the 3-4.8mm black screws from the bottom of the camera using a #0 Phillips head screw driver.
-
-
-

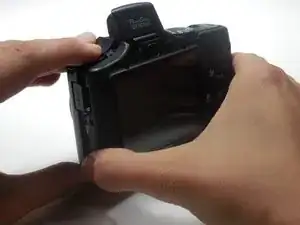

Use your hand to gently separate the back panel from the camera.
-

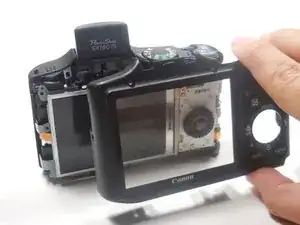

Continue to pull the panel until it becomes completely detached from the camera.
-
-
-

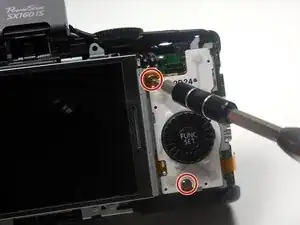

Unscrew the 3-3.75mm silver screws from the function wheel panel of the camera using a #0 Phillips head screw driver.
-

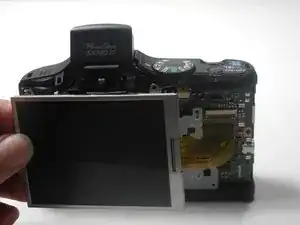

Remove the function wheel panel from the camera and set aside.
-
-
-

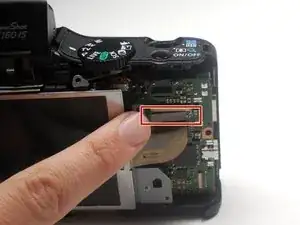

Unlatch the LCD ribbon connector from the camera by gently lifting up on the ribbon while pulling away from the camera.
-
Congratulations, you have successfully replaced your LCD screen. To reassemble your device, follow these instructions in reverse order.
