Canon PowerShot SX260 HS Flash Assembly Replacement

Geschrieben von: Tyler Kelch
  • Kommentare: 2
Canon PowerShot SX260 HS Flash Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

  1. ExYM1GedPfEcOenn
    ExYM1GedPfEcOenn
    1OLfQgOGvJeqDcaY
    Pomf1b6SY5ChnDdp

    • Be sure to always remove the battery from the camera before disassembling to avoid permanent damage.

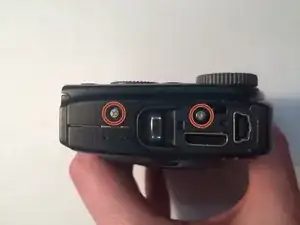

    • The camera has a total of 6 (3 mm) external screws that will need to be removed; 2 on the left side, 2 on the bottom, and 2 on the right side.

    • Remove the 2 screws on the left side.

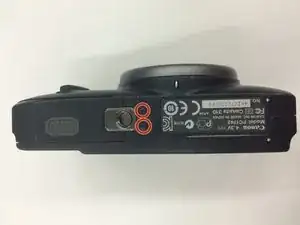

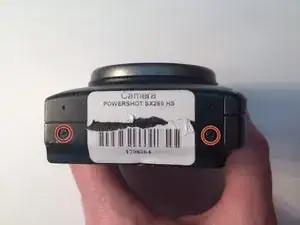

    • Remove the 2 screws on the bottom of the camera.

    • Remove the 2 screws on the right side of the camera.

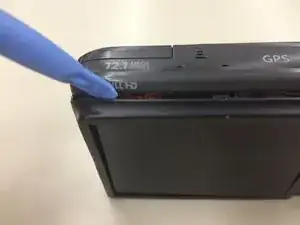

  2. He5eUnsqtDhZ5rCL

    • Use your plastic opening tool to gently lift and remove the back face plate.

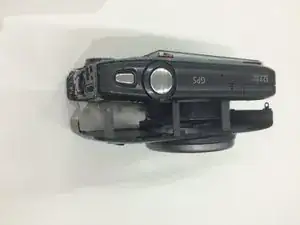

  3. JHAOdXOxJTXssqHY

    • After removing the exterior screws, use your fingers to gently lift off the front face plate.

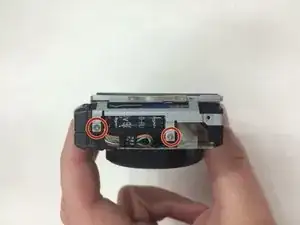

  4. DXZQiuPDrL5cRN1r

    • Next, remove the 2 (3 mm) interior screws on the left side of the camera.

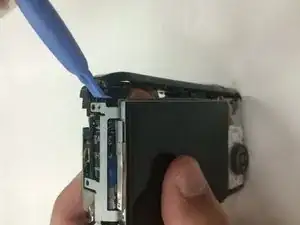

  5. VyFDrh2JdoiYsoew

    • After removing the interior left screws, use a plastic opening tool to gently pull the top face plate off.

    There is another screw in the front and another one on the right side that also need to be removed before the top face plate can be lifted.

    Manuel Schwarze -

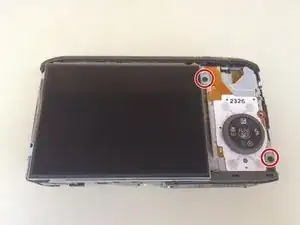

  6. FO5HQ5uZMM3HTOOm

    • Next, you will need to remove the dial panel by removing the 2 (3mm) screws on the back side of the camera.

    • Gently remove the dial panel with your fingers.

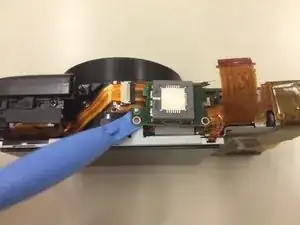

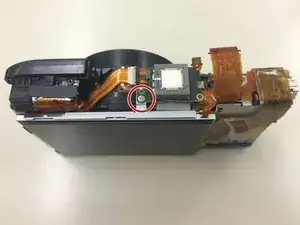

  7. RWOTu2t2jqyINFpw
    RWOTu2t2jqyINFpw
    TvQVYUCj3YvENw1f

    • Remove 1 (3 mm) screw from the flash generator with a Phillips screw driver

    • Gently lift the flash generator off of the camera with the plastic opening tool .

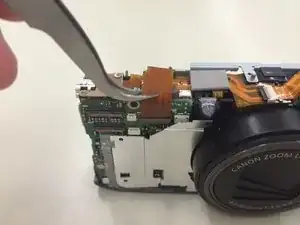

  8. 2FmDCSogJALbPBEu

    • Gently unplug the ribbon cable with your tweezers.

    • Be careful not to rip it.

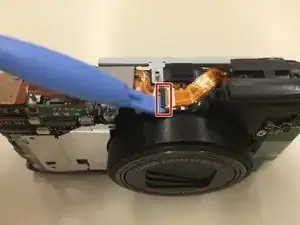

  9. ZBxSLH13chihZTSP
    ZBxSLH13chihZTSP
    mwTyNEjTGivYZSkK

    • Using your plastic opening tool to gently move the plug lock from the end of the ribbon cord by lifting it upward.

    • Gently remove the ribbon cable from the connector with tweezers.

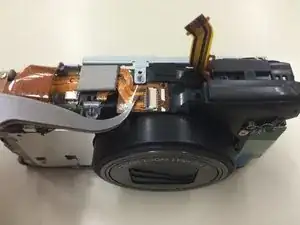

  10. suQYIvJPJCRxQ5bt
    suQYIvJPJCRxQ5bt
    Qjs3XdbjOGRlRnKJ

    • Gently remove the ribbon cable assembly from the top of the camera with your tweezers.

    • This cable is a long piece that runs across the top of the camera.

    • The flash assembly is connected to this cable.

    • Once removed gently lift out of the camera

    • Replace the ribbon cable with the attached flash assembly.

    The display at the back needs also to be removed, because underneath is a long tiny black screw that keeps the flash assembly in place. After this is removed, the flash assembly can be carefully jiggled, and finally gets out. Again it requires some patience and jiggling to get the new unit in place.

    Manuel Schwarze -

Abschluss

To reassemble your device, follow these instructions in reverse order.
