Canon PowerShot SX280 HS Back Button Panel Replacement

Geschrieben von: Mason Boyd
  • Kommentare: 0
Canon PowerShot SX280 HS Back Button Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

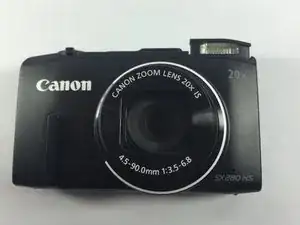

  1. uMpCuLR1yt4vstZw

    • Before taking apart your device the two most important steps are:

    • Turning the camera off

    • Removing the battery to reduce the risk of shock

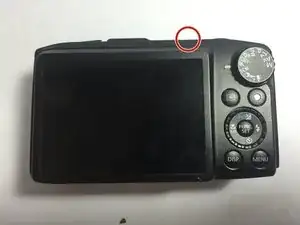

  2. XV5P6vRYQRYLIlmP

    • Turn off the camera by holding the ON/OFF on the top of the camera.

    • Now that the camera is off the battery must be removed.

    • Firmly place your finger on the battery door and slide to the right.

    • Once the door is open, there will be a small orange button, which is the battery release. Slide this button down to release the battery.

  4. XdR43RGuaSZg6RsA

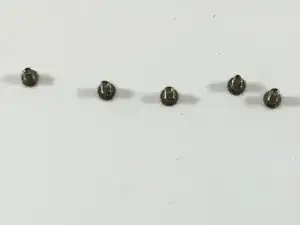

    • Once the battery is removed, you can begin to take the outer screws out. Removing these will allow you to remove the camera case. It will require a #00 phillips screwdriver.

    • Be sure to be careful when removing these screws as they are easy to lose. Be gentle as well, as they are made of weak material and can strip easily.

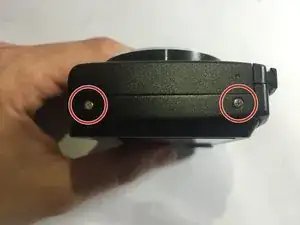

  5. MakTe5Tq5wkSolM6

    • There are two screws in the left side of the camera, which are marked in the photo. These screws are

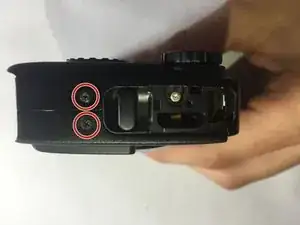

  6. bifcQOKMcSlcE2Qq

    • There are two screws to remove on the right side of the camera, which are marked in the photo. These screws are

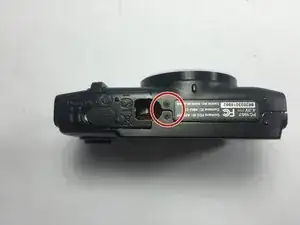

  7. dldDhDpBKHJXVUtT

    • Finally, there are two screws on the bottom that need to be removed. These screws are

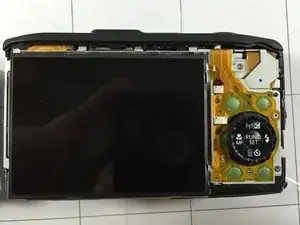

  8. kyMTNiAAM2soVPQp
    kyMTNiAAM2soVPQp

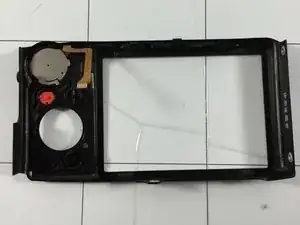

    CFFY3kyOgnFlWuxE

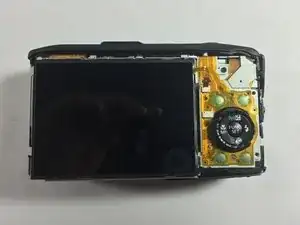

    • Now that the outer screws have been removed you can begin to remove the back case which contains the buttons.

    • Gently remove the back case, and replace it with the new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
