Replace the func. set turn dial of the Canon PowerShot SX50 HS.

  1. QAnFsNVYsKcTfZGJ
    • Locate the battery compartment on the bottom of the camera.

    • Push the latch on the outside of the battery door to the right to get to the battery pack inside.

  2. SnfviiKQnDcPJFQE
    • Pull the brown latch on the inside of the battery door towards your palm (to the left). The battery pack should pop out (battery not pictured).

    • Now remove the battery pack from the camera with your fingers.

  3. ECObW33MDcxbaWKp
    ECObW33MDcxbaWKp
    lHIVOLkfirLk1PSI
    • Remove the two Phillips #000 screws, length 5 mm, on either side of the viewfinder.

    • Remove the one Phillips #000 screw, length 4 mm, on the bottom, closer to the back side of the camera.

  4. ngiulKeCXDMFZCyc
    ngiulKeCXDMFZCyc
    MlUZxdUeOjuMYxFX
    • Remove the two Phillips #000 screws, length 3 mm, on the left side of camera.

    • Remove the Phillips #000 screw, length 4 mm, located between the two 3 mm screws.

    • Remove the two Phillips #000 screws, length 4 mm, on the bottom left corner of the camera.

  5. KPwqqXJIINXmmwnR
    • Find the "A/V Out Digital" charging station and lift up the flap.

    • Remove the two Phillips #000 screws, length 5 mm, that are under the "A/V Out Digital" flap.

    • Remove the one Phillips #000 screw, length 5 mm, that is outside the "A/V Out Digital" flap.

  6. FKkFXuNkgvLU5RaZ
    FKkFXuNkgvLU5RaZ
    KmBMlmnndwMMkDAP
    • Use the plastic opening tool to carefully start lifting up the camera's left-side panel. Then use your fingers to pry off the rest.

  7. 5QvTPumPQHliOs54
    5QvTPumPQHliOs54
    dak5BBX4EdtdrSuT
    Lr6ZP5wH2WXE5YGc
    • Make sure the LCD screen panel, the battery compartment door, and the 'A/V Out Digital" flap are all open.

    • Using your fingers, carefully pry off the back encasement (you may need to use a plastic opening tool to help you).

    • Do not remove the back casing too far or too quickly. There is a wire ribbon attaching the back encasement to the motherboard that is very delicate.

  8. JBMKtapA4X25Z5qb
    JBMKtapA4X25Z5qb
    wrFLkPlVvBYy5m3Z
    gQnmjKnnpauiXDKX
    • Find the orange wire ribbon attaching the back encasement to the I/O board in the lower right-hand corner of the camera (lens facing away).

    • Carefully lift up the brown clip holding the wire ribbon in place and pull the ribbon out of the clasp with your fingers or tweezers.

    • Be cautious when the removing the wire ribbon; it is very delicate.

    I broke the brown clip…..now what to do?

    Edward -

  9. SQjpV2klIGVJPLYy
    • Now you can completely separate the back encasement from the rest of the camera.

  10. CIHSOxelkDLtVvNn

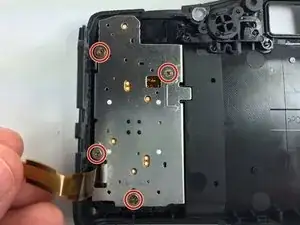

    • Remove the four Phillips #000 screws, length 3 mm, attaching the metal panel to the inside of the back encasement.

  11. WkMIowRcDORGkKWf
    WkMIowRcDORGkKWf
    TxGZJunrEi5QHHUx

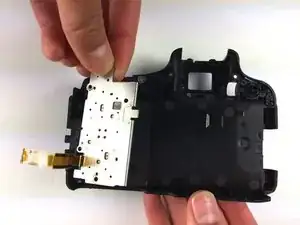

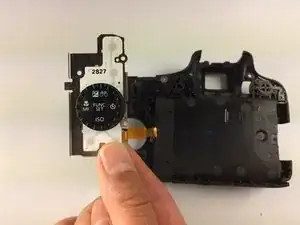

    • Take off the metal plate with your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
