Canon PowerShot SX520 HS LCD Screen Replacement

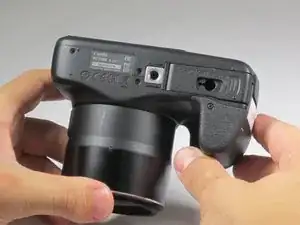

Using your fingers, slide the battery compartment door to the right until it unlocks.

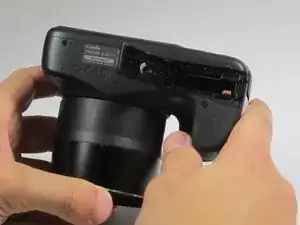

Rotate the door along hinges to open.

Take out the battery with your fingers.

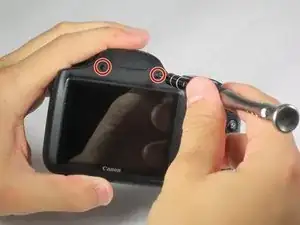

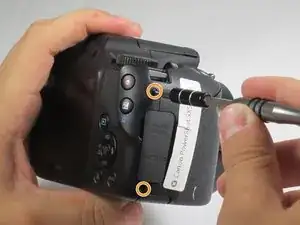

Remove 2-3.4 mm screws that secure the back panel using a Phillips #000 screwdriver.

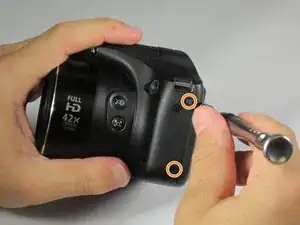

Remove 4-4 mm screws on the left and right sides of the camera using a Phillips #000 screwdriver.

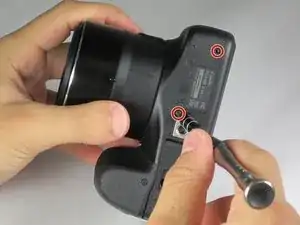

Remove 2-4 mm screws that secure the bottom of the camera using a Phillips #000 screwdriver.

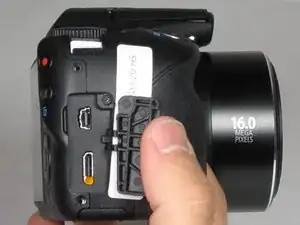

Pull back the rubber facing to access the A/V and HDMI output compartment.

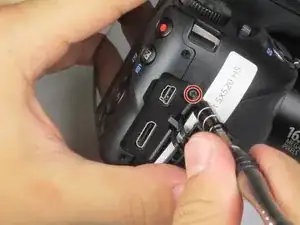

Remove 1-3.4mm screw inside the compartment using a Phillips #000 screwdriver.

Once all screws are removed, pull the back facing off with your fingers.

Remove 3-4.4 mm screws that secure the small metal plate using a Phillips #000 screwdriver.

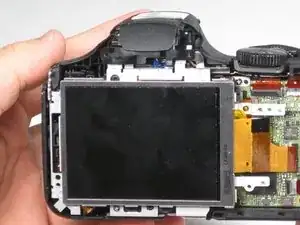

Carefully pop out the LCD screen with your fingers.
