Canon PowerShot SX520 HS Lens Replacement

Geschrieben von: Lisa Choe
  • Kommentare: 1
Canon PowerShot SX520 HS Lens Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

If you crack the lens of your camera or if it is not functioning properly, this guide may be for you. This guide will help you remove and replace the lens.

  1. PYX4NmEZxhdNMp3n

    • Using your fingers, slide the battery compartment door to the right until it unlocks.

  2. daqtFOHvPm6eNVZM

    • Rotate the door along hinges to open.

    • Take out the battery with your fingers.

  3. vpXvNRglEUvBawKL
    vpXvNRglEUvBawKL
    IBQLRBr2y4gdtAQT
    Pdt4HLvhl64GYE1I

    • Remove 2-3.4 mm screws that secure the back panel using a Phillips #000 screwdriver.

    • Remove 4-4 mm screws on the left and right sides of the camera using a Phillips #000 screwdriver.

  4. NwhElEg2RLgBE4Bs

    • Remove 2-4 mm screws that secure the bottom of the camera using a Phillips #000 screwdriver.

  5. LWHdiHptBoFUWD5Z
    LWHdiHptBoFUWD5Z
    BNGItp2ndspZ6sTJ

    • Pull back the rubber facing to access the A/V and HDMI output compartment.

    • Remove 1-3.4mm screw inside the compartment using a Phillips #000 screwdriver.

  6. IC26h5uEJMao1LEo

    • Once all screws are removed, pull the back facing off with your fingers.

  7. MBEsEC1h6Et3MfWg

    • Remove 3-4.4 mm screws that secure the small metal plate using a Phillips #000 screwdriver.

  8. BRmihWTaNSIQ4E6n

    • Carefully pop out the LCD screen with your fingers.

  9. wb2ZsUU6dFbXQaEu
    wb2ZsUU6dFbXQaEu
    NwKp1VWLATWDnuRQ
    wG3LGkBH51r16Dau

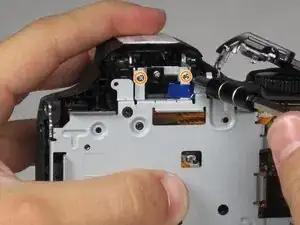

    • Remove 6-4.4 mm screws that secure the metal cover using a Phillips #000 screwdriver.

    • Remove 2-2.5 mm screws that secure the back panel using a Phillips #000 screwdriver.

    • After all 8 screws are removed, pull the metal plate out with your fingers.

  10. 3EqMXQR5BOALRf2R

    • Unlcip the large cable by pulling up on the metal part with your finger.

    • Slide out the 2 smaller cables with your fingers.

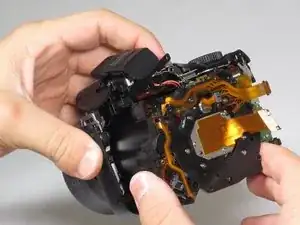

  11. qVCXbYjPS4FM2DnI

    • Lift up the lens by grabbing the sides with your fingers.

    Como consigo más sesiones completas estoy en limpieza de mi cámara canon powershot sx 520 hs que se me cayó en una posa sucia y necesito desarmarla por completa para limpiarla y me gustaría conseguir un manual completo para desarmarla y armarla de nuevo gracias / la cámara estaba apagada al lograrla sacar le quite la batería para que no sufriera ningún daño

    Leonardo Fabio Castro Cruz -

Abschluss

To reassemble your device, follow these instructions in reverse order.
