Canon PowerShot SX60 HS Flash Replacement

Geschrieben von: Ethan Boone

Kommentare: 11

Canon PowerShot SX60 HS Flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

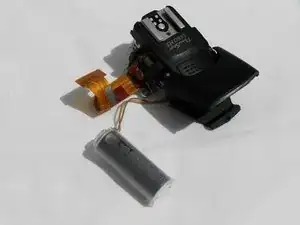

If the flash isn’t working on your Canon PowerShot SX60 HS then use this guide to replace the flash assembly.

The flash on this device is used to help the user take pictures in low-light conditions.

Ensure that the settings are correct for the flash to work on your device. For more clarifying information review our troubleshooting guide.

Before starting this guide, ensure that your device is powered off completely.

Werkzeuge

Schritt 1

Make sure to power off the device before completing any more steps.
Remove the battery by releasing the orange clip in the battery compartment.

Schritt 2

Remove the rubber eye piece by pulling it back.
Use the Phillips #00 screwdriver to remove the two 5mm #00 screws located on the side of the viewfinder.

Check end punctuation here.

Alex Watkins - 31/07/19

Schritt 3

Use the Phillips #00 screwdriver to remove the 4mm #00 screw located on the bottom left of the device.
Use the Phillips #00 screwdriver to remove the 5mm #00 screw located on the bottom center of the device.
Use the Phillips #00 screwdriver to remove the 7mm #00 screw on the right top corner of the camera, just above the media ports.
Use the Phillips #00 screwdriver to remove the two 5mm #00 screws located on the right side, under the media port dust cover.

Schritt 4

Ensure the LCD screen is swung fully to the left before taking off the back panel.
Use the iFixit opening tool to pry off the back panel.
Don't completely pull off the back panel because there is still a ribbon attached.
Use the black spudger to unclip the ribbon located behind the battery compartment. Then remove it using the nylon tipped tweezers.
Once the ribbon is unplugged, remove the back panel from the camera body.

The first step is a little confusing to me—can you clarify what you mean? Also, be sure to check end punctuation on each step.

Alex Watkins - 31/07/19

On the third step, only the thin plastic ribbon comes out, the brown and gray plastic parts are the connector and will stay with the board, I pulled the gray plastic part and broke the connector.

Antonio Xeira - 16/04/20

Schritt 5

Remove the sunshade located on the front of the lens by twisting it 90 degrees in either direction, then pull straight off the lens.

Should this be two steps? Do you have any images of you removing the lens?

Alex Watkins - 31/07/19

Schritt 6

Remove the 5mm Phillips #00 screw located on the left side below the microphone connection.
Remove the 4mm Phillips #00 screw located on the bottom left of the camera.
Remove the 5mm Phillips #00 screw located on the bottom center of the camera.
Pop open the flash and remove the 5mm Phillips #00 screw located under the flash.

Schritt 7

Remove the front cover by pulling along the lens housing while holding the body of the camera.

This is a great example of the final shot that I think some of your other guides need, which iFixit was referring to in the feedback.

Alex Watkins - 31/07/19

Schritt 8

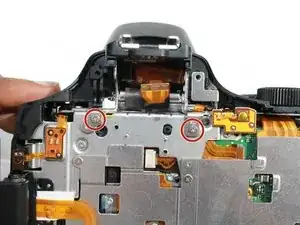

Use the Phillips #00 screwdriver to remove the two 2mm #00 silver screws located under the viewfinder.
Don't pull the viewfinder all the way out because there is still a wire ribbon attached.
Remove the plastic housing around the viewfinder by using a black spudger or opening tool to unclip the 3 plastic clips on the sides of the viewfinder.

Can you be clearer in the orange bullet about how to remove? Also, make sure to check all steps for end punctuation.

Alex Watkins - 31/07/19

Schritt 9

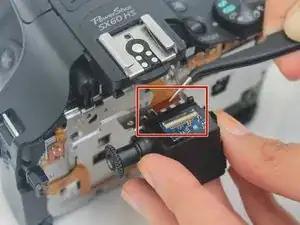

Unclip the ribbon from the ZIF connector on the viewfinder.

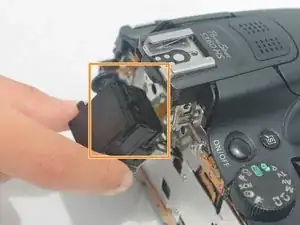

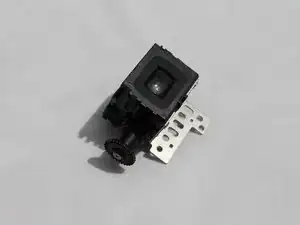

Pull out the viewfinder.

Use a square, rather than a circle, for the ribbon markup here.

Alex Watkins - 31/07/19

Schritt 10

Remove the 4mm #00 Philips screw located on the top left corner beneath the front panel.
Remove the 5mm #00 Philips screw located on the top left corner beneath the front panel.
Remove the 5mm #00 Philips screw located on the top of the left side panel near the microphone connection.
Remove the 4mm #00 Philips screw located on the bottom left corner beneath the front panel.
Using a black spudger, unclip the orange wire ribbon on the lower left corner of the motherboard and then remove it using the nylon tipped tweezers.
The side panel is now free and can be removed by pulling the panel to the left.

I think I would be clearer about who’s unclipping and how. I might consider making this its own step. Also, what is “it” referring to in the last bullet?

Alex Watkins - 31/07/19

Schritt 11

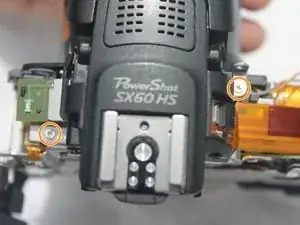

Remove one silver 2mm #00 Philips screw on the front side located next the flash assembly.

Schritt 12

Use the black spudger to unclip the ribbon on the top right corner and then remove it using the nylon tipped tweezers.
Remove one silver 2mm #00 Philips screw found underneath the ribbon.
Once the screw is removed, the top panel is completely detached from the device. To remove it, grab it by hand and gently pull it off the device.

Check capitalization here, and see specifically the lack of clarity in the orange bullet. How will the top cover come free—does the user need to lift it off? will it fall off? Etc.

Alex Watkins - 31/07/19

Schritt 13

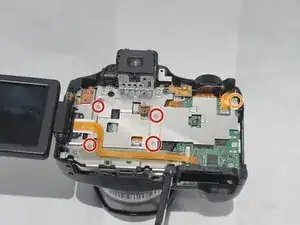

Remove the four 2mm #00 Phillips head screws from the metal back plate.
Remove the 4mm #00 Phillips head screw from the top corner of the metal back plate.

Be sure, for all steps, to check capitalization at the beginning, and punctuation at the end.

Alex Watkins - 31/07/19

Schritt 14

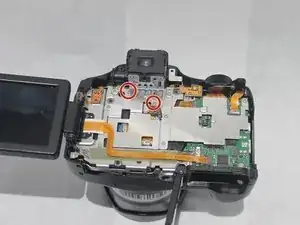

Remove two silver 2mm #00 Phillips head screws located near the top of the back panel.
Remove the two silver 2mm #00 Phillips head screws on the top side.

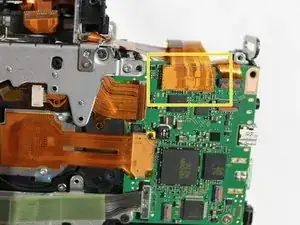

Use the black spudger to unclip the ribbon on the top right corner and remove it.
