Canon PowerShot SX60 HS Motherboard and Lens Motor Replacement

Geschrieben von: Ethan Boone
  • Kommentare: 14
Canon PowerShot SX60 HS Motherboard and Lens Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

1 Stunde

Einleitung

This guide will walk you through the necessary steps to replace either the motherboard or lens assembly from your Canon PowerShot SX60 HS.

The motherboard controls all aspects of the device and its operation. The lens assembly houses all the optics used to capture images.

Before starting this guide make sure to consult our troubleshooting page to ensure that this repair is necessary for your device.

This guide essentially requires you to completely disassemble the device, so there are lots of ribbons, electronics and optics that could break potentially damaging your device further.

Make sure to completely power off the device before starting this repair.

  1. SjmTZQnqINjhuBrf

    • Make sure to power off the device before completing any more steps.

    • Remove the battery by releasing the orange clip in the battery compartment.

  2. IdaqbtZN3dnRDdqY
    IdaqbtZN3dnRDdqY
    flWOTZFWHFXeguRU

    • Remove the rubber eye piece by pulling it back.

    • Use the Phillips #00 screwdriver to remove the two 5mm #00 screws located on the side of the viewfinder.

    Check end punctuation here.

    Alex Watkins -

  3. ebsDYWDdO4GCsJUU
    ebsDYWDdO4GCsJUU
    1KJAE3iE3BZQWWor

    • Use the Phillips #00 screwdriver to remove the 4mm #00 screw located on the bottom left of the device.

    • Use the Phillips #00 screwdriver to remove the 5mm #00 screw located on the bottom center of the device.

    • Use the Phillips #00 screwdriver to remove the 7mm #00 screw on the right top corner of the camera, just above the media ports.

    • Use the Phillips #00 screwdriver to remove the two 5mm #00 screws located on the right side, under the media port dust cover.

  4. KxQJteNYpwpHS5dJ
    KxQJteNYpwpHS5dJ
    lKDBHvE2ToSRPL3c

    • Ensure the LCD screen is swung fully to the left before taking off the back panel.

    • Use the iFixit opening tool to pry off the back panel.

    • Don't completely pull off the back panel because there is still a ribbon attached.

    • Use the black spudger to unclip the ribbon located behind the battery compartment. Then remove it using the nylon tipped tweezers.

    • Once the ribbon is unplugged, remove the back panel from the camera body.

    The first step is a little confusing to me—can you clarify what you mean? Also, be sure to check end punctuation on each step.

    Alex Watkins -

    On the third step, only the thin plastic ribbon comes out, the brown and gray plastic parts are the connector and will stay with the board, I pulled the gray plastic part and broke the connector.

    Antonio Xeira -

  5. U25PT4RUFN431jGX
    U25PT4RUFN431jGX
    hPEkfNMOoY1USeFN

    • Remove the sunshade located on the front of the lens by twisting it 90 degrees in either direction, then pull straight off the lens.

    Should this be two steps? Do you have any images of you removing the lens?

    Alex Watkins -

  6. N43HogGWxvDBmaXB
    N43HogGWxvDBmaXB
    JkoZ3dFRPDGqvo2h
    IA3I1XoGRWufGRrL

    • Remove the 5mm Phillips #00 screw located on the left side below the microphone connection.

    • Remove the 4mm Phillips #00 screw located on the bottom left of the camera.

    • Remove the 5mm Phillips #00 screw located on the bottom center of the camera.

    • Pop open the flash and remove the 5mm Phillips #00 screw located under the flash.

  7. JXeJWSuGIj4e2DwS

    • Remove the front cover by pulling along the lens housing while holding the body of the camera.

    This is a great example of the final shot that I think some of your other guides need, which iFixit was referring to in the feedback.

    Alex Watkins -

  8. 4L6xQBBV5XUsvINH
    4L6xQBBV5XUsvINH
    kohgNAd6BTrwPZ3l

    • Use the Phillips #00 screwdriver to remove the two 2mm #00 silver screws located under the viewfinder.

    • Don't pull the viewfinder all the way out because there is still a wire ribbon attached.

    • Remove the plastic housing around the viewfinder by using a black spudger or opening tool to unclip the 3 plastic clips on the sides of the viewfinder.

    Can you be clearer in the orange bullet about how to remove? Also, make sure to check all steps for end punctuation.

    Alex Watkins -

  9. laWTbfgfR1rfDSRg
    laWTbfgfR1rfDSRg
    6QCB2feUGvnJcjue

    • Unclip the ribbon from the ZIF connector on the viewfinder.

    • Pull out the viewfinder.

    Use a square, rather than a circle, for the ribbon markup here.

    Alex Watkins -

  10. 6wHnGWwRgHrLy4FQ
    6wHnGWwRgHrLy4FQ
    grhavIOe4RutVlGx
    dmXqF4em6JCIGJ1o

    • Remove the 4mm #00 Philips screw located on the top left corner beneath the front panel.

    • Remove the 5mm #00 Philips screw located on the top left corner beneath the front panel.

    • Remove the 5mm #00 Philips screw located on the top of the left side panel near the microphone connection.

    • Remove the 4mm #00 Philips screw located on the bottom left corner beneath the front panel.

    • Using a black spudger, unclip the orange wire ribbon on the lower left corner of the motherboard and then remove it using the nylon tipped tweezers.

    • The side panel is now free and can be removed by pulling the panel to the left.

    I think I would be clearer about who’s unclipping and how. I might consider making this its own step. Also, what is “it” referring to in the last bullet?

    Alex Watkins -

  11. EWTNgICMBc125M2J
    EWTNgICMBc125M2J
    HeuVMC4skyBSBKG3
    NZcTILNDOEB3WrrH

    • Remove two 4mm #00 Philips screws located at the hinge of the LCD Screen.

    • Unclip the green ribbon using the nylon tipped tweezers.

    • Be careful when removing this plug. The wires in the green ribbon are not connected together and can easily be damaged.

    • Once the ribbon is unclipped, remove the LCD screen.

    Comma splice, here, between plug and wires. Check the name of the screwdriver throughout (Phillips).

    Alex Watkins -

  12. MoRUaO3NuuIFHcoZ

    • Remove one silver 2mm #00 Philips screw on the front side located next the flash assembly.

  13. Y2YqnYvIr1DFIGOW
    Y2YqnYvIr1DFIGOW
    WNMPCXBpbU1NZvRu
    FfPLjGiTUumXVGyy

    • Use the black spudger to unclip the ribbon on the top right corner and then remove it using the nylon tipped tweezers.

    • Remove one silver 2mm #00 Philips screw found underneath the ribbon.

    • Once the screw is removed, the top panel is completely detached from the device. To remove it, grab it by hand and gently pull it off the device.

    Check capitalization here, and see specifically the lack of clarity in the orange bullet. How will the top cover come free—does the user need to lift it off? will it fall off? Etc.

    Alex Watkins -

  14. hrBgEXvOgQFPMKXM

    • Remove the four 2mm #00 Phillips head screws from the metal back plate.

    • Remove the 4mm #00 Phillips head screw from the top corner of the metal back plate.

    Be sure, for all steps, to check capitalization at the beginning, and punctuation at the end.

    Alex Watkins -

  15. Ah6IEAWsPmUEyljZ
    Ah6IEAWsPmUEyljZ
    NjCpMPSwXIXDToRW
    xcv2YsgWuTAHWfN5

    • Remove two silver 2mm #00 Phillips head screws located near the top of the back panel.

    • Remove the two silver 2mm #00 Phillips head screws on the top side.

    • Use the black spudger to unclip the ribbon on the top right corner and remove it.

  16. cS4NDXIpHJsrSY1a

    • Once the above steps are completed, gently pull the flash assembly from the device and snap out the capacitor located on the front side of the camera

    Do you have any shots of your team doing this that you could add?

    Alex Watkins -

  17. fLEAjePcQKsyIrVx
    fLEAjePcQKsyIrVx
    infCDuHkQNDIjjlN

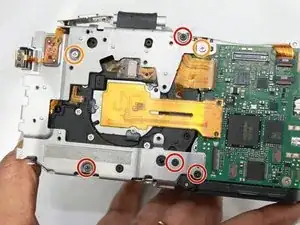

    • Remove the four black 3.5mm #00 Phillips head screws holding the lens motor and motherboard to the metal back plate.

    • Remove the two silver 4mm #00 Phillips head screws holding the lens motor and motherboard to the metal back plate.

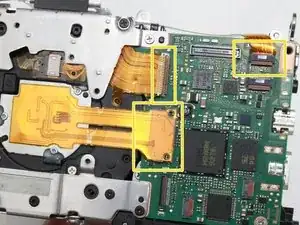

    • Use the black spudger to remove the 3 wire ribbon connections on the motherboard.

  18. QEDVtMGKNLQZKMeO
    QEDVtMGKNLQZKMeO
    uYab1SLwjF2QVX4K
    TWW2KtCECpNxtbul

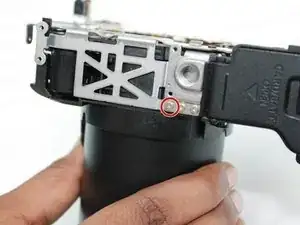

    • Remove one 2mm #00 Philips head screw from the bottom of the camera frame. This will free the lens and motherboard from the frame.

    • Be careful not to completely remove the metal frame, there is still a small wire ribbon attached.

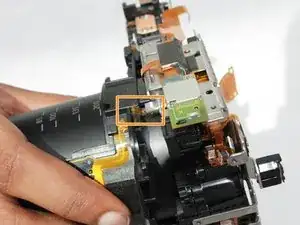

    • Gently separate the metal frame from the lens assembly just enough to reach the wire ribbon on the front side of the camera.

    • Use the rubber tipped tweezers to unplug the wire ribbon.

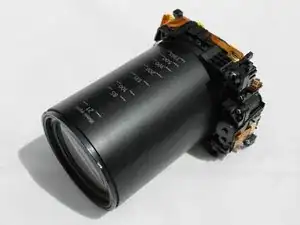

    • Remove the metal frame and slide the lens motor assembly out of the plastic frame.

    Check plural screws here for one screw, as well as the comma splice between frame and there.

    Alex Watkins -

  19. rYklQ5EIxNDo2Hmy
    rYklQ5EIxNDo2Hmy
    DkHxqXqNsYDapwbU
    e3ZkErE3VPi3pGPj

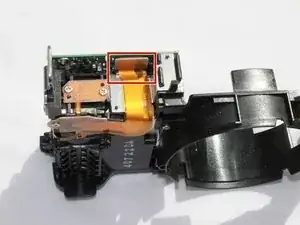

    • Use the black spudger to remove the last remaining wire ribbon plug on the motherboard, located on the side facing the plastic frame.

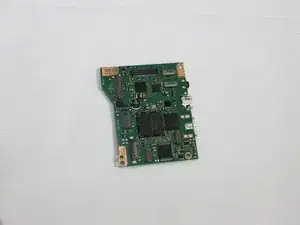

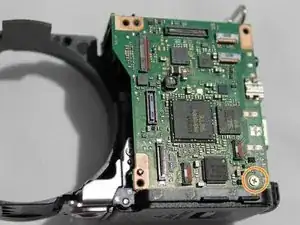

    • Remove the 2mm #00 Phillips head screw on the lower left corner of the motherboard. The motherboard should now lift free from the plastic frame.

    Can you add a photo, here, of you removing the motherboard with the spudger?

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
