Canon PowerShot SX620 HS LCD Screen Replacement

Geschrieben von: Karl Loechelt
  • Kommentare: 0
Canon PowerShot SX620 HS LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 - 30 Minuten

Einleitung

If your Canon PowerShot SX620 HS has a display screen that is broken or malfunctioning, use this guide to replace the display screen.

The LCD screen is the large screen on the back of the camera that allows the user to frame photos, view images, change camera settings, and more. The screen is glass, so it could also crack easily if dropped. It could also go black if an electronic component inside the screen fails. In these situations, you will need to replace your screen using the process in this guide.

Make sure your device is powered off and your SD card is removed before performing this fix.

  1. sTIUp6BBGsT6GTy3

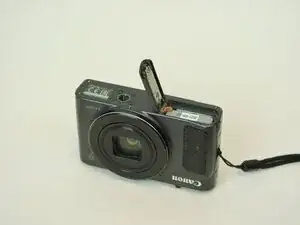

    • Open the battery door located on the bottom of the camera.

    • Push the orange tab until the battery springs upwards and out.

    • Remove the battery from the camera.

  2. HWWItQaVMAVCAf6t
    HWWItQaVMAVCAf6t
    p4J2PycoEVYwvmOh

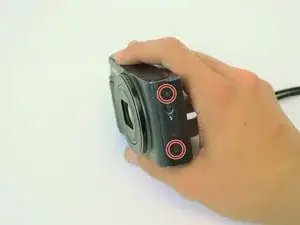

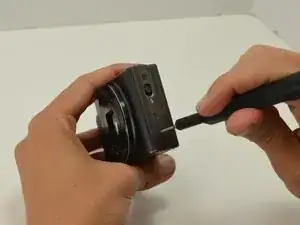

    • Remove the two 4 mm screws from the side of the camera with the flash assembly using a Phillips #000 screwdriver

    • Make sure to keep your screws from different steps separate.

  3. JrJp3EHGgysaHkef
    JrJp3EHGgysaHkef
    IS3OyywCiJOYIRRT

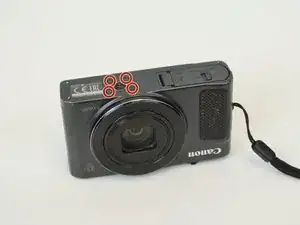

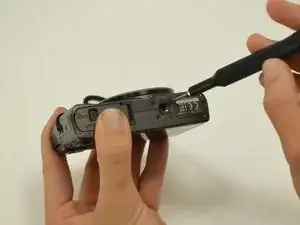

    • Remove the four 2 mm screws from the bottom of the camera using a Phillips #000 screwdriver.

  4. HPKTF6mbBQ2mRpAW
    HPKTF6mbBQ2mRpAW
    EimoaPsXIRrGdUP3

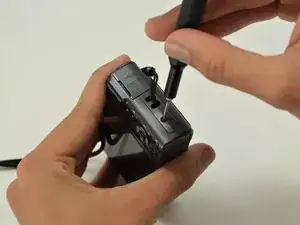

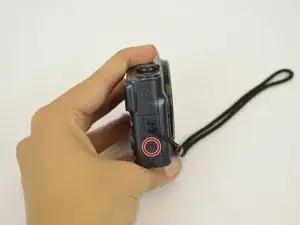

    • Remove the single 4 mm screw from the other side of the camera using a Phillips #000 screwdriver.

  5. AChJJ6aeBwMxkrxk
    AChJJ6aeBwMxkrxk
    vhVFQcRgOxUORSAq

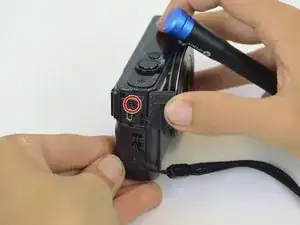

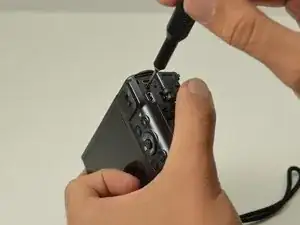

    • Open the HDMI cover.

    • Remove the single 4 mm screw inside the HDMI cover using a Phillips #000 screwdriver.

  6. 1WGHnyBqAcq6Tv1i
    1WGHnyBqAcq6Tv1i
    Mw3MN5jdQtQqY3RS
    bbIGCR4e6LqP6wS1

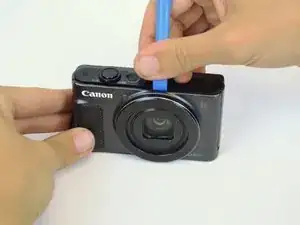

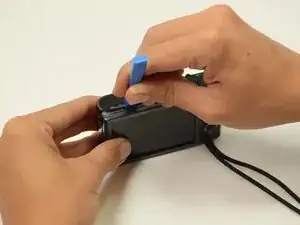

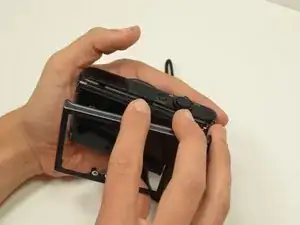

    • Use a plastic opening tool at the top of the camera to loosen the back piece of the outer case. Once it is loose, pull it straight out.

    • Use the same technique to remove the front piece of the camera case.

  7. OUBrNl2cUGTGSFXR
    OUBrNl2cUGTGSFXR
    LknDmbGLNQYUPNVG
    BdWbFArTmyRYatGw

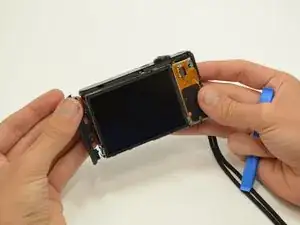

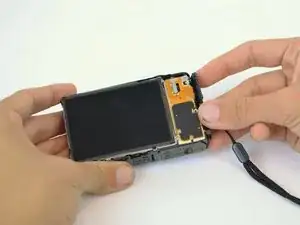

    • Place the camera with the LCD screen facing up.

    • Pull the side cover pieces out.

  8. QQDcBrfntFT5rQlf

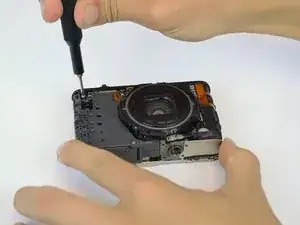

    • Flip the camera over so the lens is facing upwards.

    • Use the Phillips #000 screwdriver to remove the screw located near the photo button.

  9. TKwABDdY6PPDKy2f
    TKwABDdY6PPDKy2f
    lkLTl3BN5Ea1SwDL

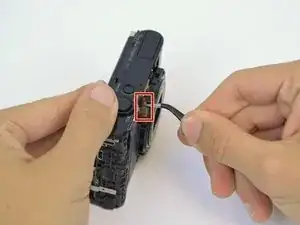

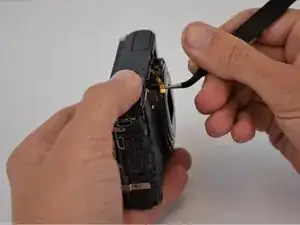

    • Detach the orange connector from the lens piece using tweezers.

    • Be extremely careful with any of these connectors. They are very fragile and contain important electronic components. If one is damaged, your camera will not work at all.

  10. jDYMgl2rhvBTsSUT
    jDYMgl2rhvBTsSUT
    StxZRAHJpVUTUmtL

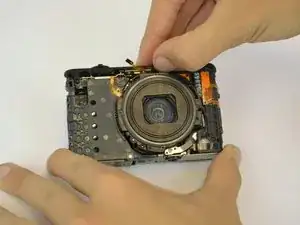

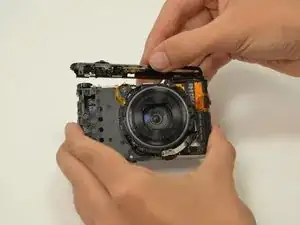

    • Grab the top cover piece directly above the lens. Pull upward to remove it from the camera body.

  11. DlW5XELBjWgxWBgo
    DlW5XELBjWgxWBgo
    uQplF3CtWPKZe4CT

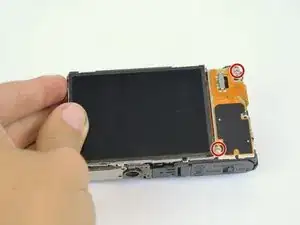

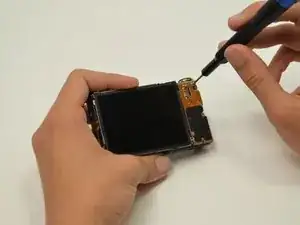

    • Use the Phillips #000 screwdriver to remove the two 2 mm screws from the button panel.

  12. ICFNXoV6lH4LrGd2
    ICFNXoV6lH4LrGd2
    yFlZUdgcMIjVK56A
    IDcxqLfOaB61dHjU

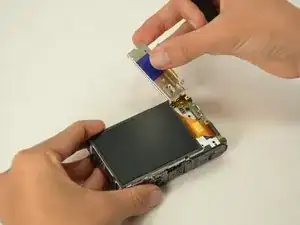

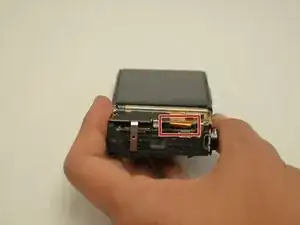

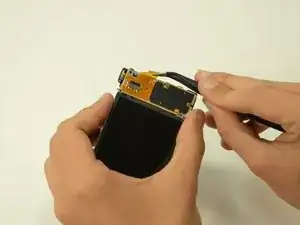

    • Use tweezers to carefully detach the connector that is hidden underneath the button panel.

    • Be careful not to damage anything on the motherboard underneath.

    • Flip the button panel upward.

  13. wuNNtTeUOIaRUTTO
    wuNNtTeUOIaRUTTO
    fgOCfsM4PJqvTBAQ
    RaMDhhmpsXmPZihM

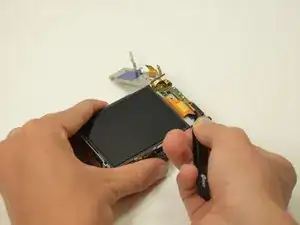

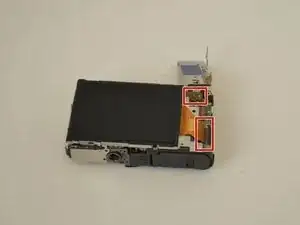

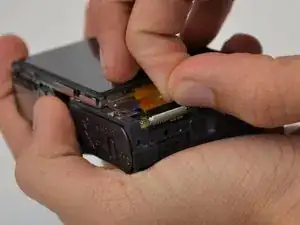

    • Flip the small black cover upward so you can remove the large orange connector. Carefully remove this connector and the smaller connector holding the LCD screen in place.

    • Lift the LCD screen out of the metal frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
