Canon Powershot A70 Front Exterior Panel Replacement

Geschrieben von: Brian
  • Kommentare: 0
Canon Powershot A70 Front Exterior Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

How to remove the front panel of a Canon Powershot A70 camera.

  1. 2tKlOnHVejLt1Ioa

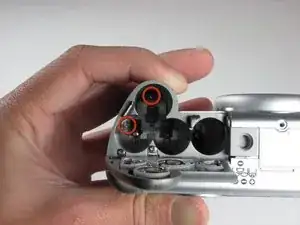

    • Open the battery compartment and remove the batteries.

    • Remove the two screws that are deep in the battery compartment with a Phillips #00 screwdriver.

  2. MBalOJAtBDYYfkk3
    MBalOJAtBDYYfkk3
    keFfQeKgoeUIvaM6

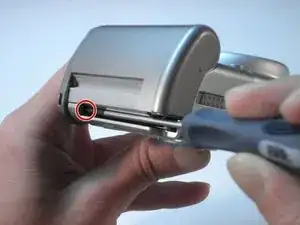

    • Open the CF compartment and remove the top screw with a Phillips #00 screwdriver.

    • The panel that holds the shutter button and zoom will come off.

    • Be careful! There are two small wires connecting the speaker to the body of the camera. These are very delicate so proceed with caution. Do not remove.

  3. fc4htTXKDEcFPgcJ

    • Unscrew the three small screws on the bottom of the camera with a Phillips #00 screwdriver.

    • Remove the wrist strap.

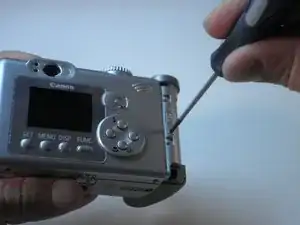

  4. 3pognSvMACe3cnoA

    • Remove the screw in the CF compartment with a Phillips #00 screwdriver.

  5. 3SV3TdNPUUWtLoPH
    3SV3TdNPUUWtLoPH
    LoXGV2NHCXbPgGSa
    nYZkfSLCWuTtf2WP

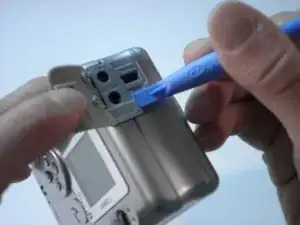

    • Open the rubber Digital AV Out compartment flap.

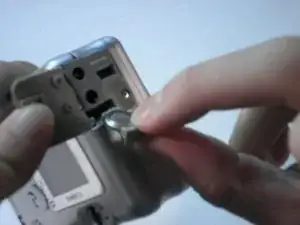

    • Pry the battery with an opening tool.

    • Carefully pull out the battery with two fingers.

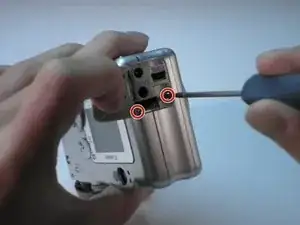

    • Remove the two screws that are now visible with a Phillips #00 screwdriver.

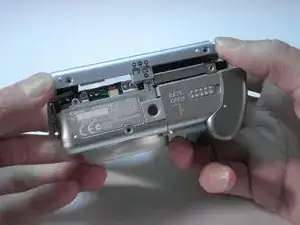

  6. YLTvyOwxD1fN6qHH
    YLTvyOwxD1fN6qHH
    VRJb3bfpZGxDM1lS

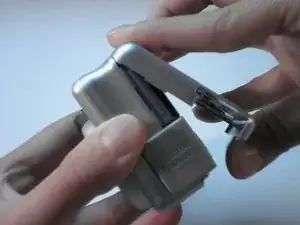

    • Starting from the bottom, carefully pull the casing off.

    • The casing will now pivot at the top.

    • There are three catches that hold the back casing to the body.

    • You may have to pull with some force. The rear panel will make a snapping noise when it separates from the body.

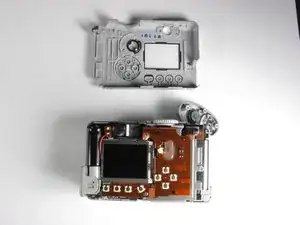

  7. JclfWrTnrZiw23HO

    • The interior of the camera should look like this.

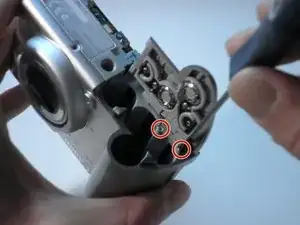

  8. 4dhsfvlVfjjNlxYi

    • Remove the two screws at the top of the battery compartment with a Phillips #00 screwdriver.

  9. r6ZjAUN1oxMPGS6L
    r6ZjAUN1oxMPGS6L
    EoEGu4soyh5AT1lE

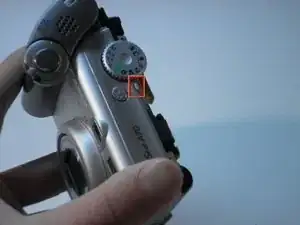

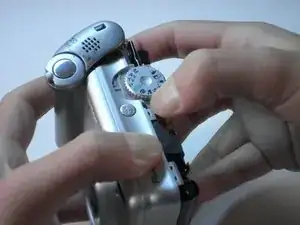

    • With your right thumb, pull back on the tab while using your left hand to pull the face of the camera away from the body.

Abschluss

To reassemble your device, follow these instructions in reverse order.
