This repair guide will explain, step-by-step the process necessary to replace the LCD Screen.

  1. 2tKlOnHVejLt1Ioa
    • Open the battery compartment and remove the batteries.

    • Remove the two screws that are deep in the battery compartment with a Phillips #00 screwdriver.

  2. MBalOJAtBDYYfkk3
    MBalOJAtBDYYfkk3
    keFfQeKgoeUIvaM6
    • Open the CF compartment and remove the top screw with a Phillips #00 screwdriver.

    • The panel that holds the shutter button and zoom will come off.

    • Be careful! There are two small wires connecting the speaker to the body of the camera. These are very delicate so proceed with caution. Do not remove.

  3. fc4htTXKDEcFPgcJ
    • Unscrew the three small screws on the bottom of the camera with a Phillips #00 screwdriver.

    • Remove the wrist strap.

  4. 3pognSvMACe3cnoA
    • Remove the screw in the CF compartment with a Phillips #00 screwdriver.

  5. 3SV3TdNPUUWtLoPH
    3SV3TdNPUUWtLoPH
    LoXGV2NHCXbPgGSa
    nYZkfSLCWuTtf2WP
    • Open the rubber Digital AV Out compartment flap.

    • Pry the battery with an opening tool.

    • Carefully pull out the battery with two fingers.

    • Remove the two screws that are now visible with a Phillips #00 screwdriver.

  6. YLTvyOwxD1fN6qHH
    YLTvyOwxD1fN6qHH
    VRJb3bfpZGxDM1lS
    • Starting from the bottom, carefully pull the casing off.

    • The casing will now pivot at the top.

    • There are three catches that hold the back casing to the body.

    • You may have to pull with some force. The rear panel will make a snapping noise when it separates from the body.

  7. JclfWrTnrZiw23HO
    • The interior of the camera should look like this.

  8. 4dhsfvlVfjjNlxYi
    • Remove the two screws at the top of the battery compartment with a Phillips #00 screwdriver.

  9. r6ZjAUN1oxMPGS6L
    r6ZjAUN1oxMPGS6L
    EoEGu4soyh5AT1lE
    • With your right thumb, pull back on the tab while using your left hand to pull the face of the camera away from the body.

  10. FFJShRpIO16TLkJh
    • After removing the front and rear panels, locate the viewfinder directly above the lens on top of the camera.

    • Three screws hold the viewfinder in place: two on the top and one on the lens side of the camera.

    • First, remove the screw in the bent corner of the viewfinder with a Phillips #00 screwdriver.

    make circle red

    Madison Smith -

  11. MXkwi5Wa1YldoJJt
    • Remove the second screw directly across from the bent corner.

    • It may be hidden in the space under the orange circuitry with a Phillips #00 screwdriver.

    make circle red

    Madison Smith -

  12. oqTjBZqIiNb5FJpd
    • Remove the final screw directly under the left side of the viewfinder (on the lens side) with a Phillips #00 screwdriver.

    make circle red

    Madison Smith -

  13. jBZiqbKAxQG3OPFb
    • After removing the three screws, the only thing still holding the viewfinder in place is a small plastic peg.

    • Remove the viewfinder with a firm pull directly upwards.

  14. aEelAn13VKe4AxwQ
    • Remove the two clearly visible screws from the control dial with a Phillips #00 screwdriver.

    • Remove the dial—it should come off easily.

  15. fIEhwZmDpQix6LBf
    fIEhwZmDpQix6LBf
    bHJMUxatCLQoZaH3

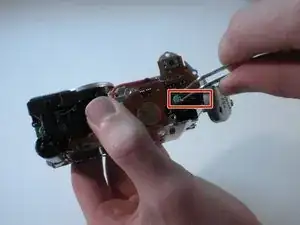

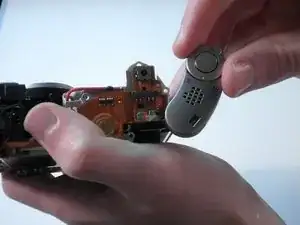

    • With tweezers, carefully unplug the two small wires from the green plug.

    • Carefully replace the broken speaker/shutter panel with a new one.

  16. DR3TItUmmdRxRmvo

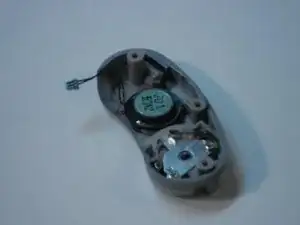

    • The removed panel should look like this.

  17. DBmfsQCCgnjSHu52
    • Using a Phillips #00 screwdriver, remove the one visible screw that attaches the flex assembly to the back of the camera.

    no markup needed

    Madison Smith -

  18. jdaxAQJZrA4FB6N6
    jdaxAQJZrA4FB6N6
    ZFSSvfX2EycQPPvL

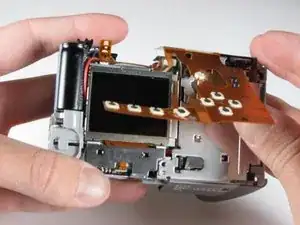

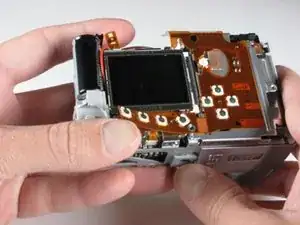

    • Starting with the bottom-left corner (below the screen), lift the flex assembly away from the camera chassis.

  19. WukHWfZd4Yldj5CJ

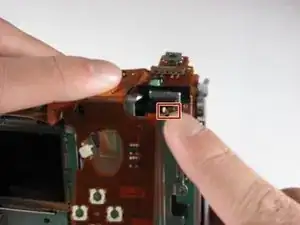

    • Use your finger to release the small metal tab that attaches the flex assembly to the upper-right corner of the camera.

    • The tab is very small and may be hard to see.

  20. jRpeBb2oQLHDKwGP
    • Disconnect the black connector by lifting it up.

    • Potential for device damage: You may damage the flex assembly if you forcibly remove it without disconnecting the connector.

  21. aY2eMXjkAqtTWlQK
    • Gently pull the rest of the flex assembly away from the camera body until you reach the last connector.

  22. scYIelfSmWmpoxE2
    scYIelfSmWmpoxE2
    RV3lCUutqIvoH2YC

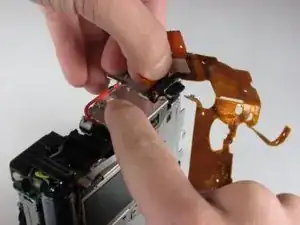

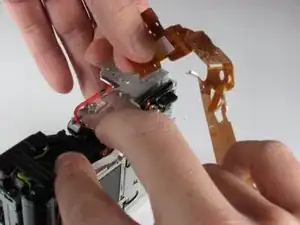

    • Hold the flex assembly gently but firmly, and pull it out of the connection with two fingers.

    • Be sure to pull straight up, not at an angle.

  23. xpYX1dCL35BCJelp
    • Remove the two screws from the bottom of the camera with a Phillips #00 screwdriver.

  24. jOAqDKxCskYhnPUN

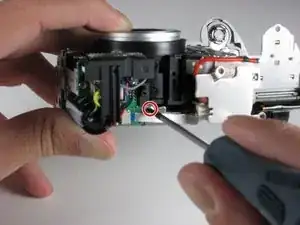

    • Remove the last screw located on the top of the camera with a Phillips #00 screwdriver.

  25. qNcD3pGdIFbv3S3Q
    qNcD3pGdIFbv3S3Q
    TZAYZ5NV3et42DSZ

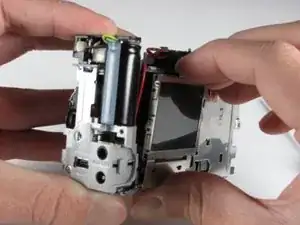

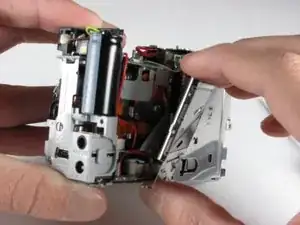

    • The screen should no longer be screwed to the body.

    • Gently push the screen down and then pull it away from the body of the camera.

    • It will swing away, because it is still plugged into the camera.

  26. Nu1MWwTCQmxgKMCK
    Nu1MWwTCQmxgKMCK
    11Q5tntHdlLDdIwE

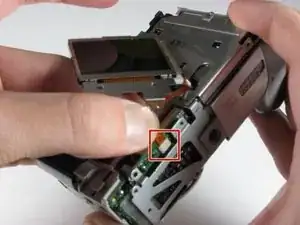

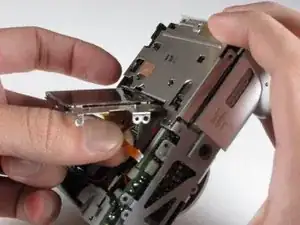

    • Unplug the thin orange ribbon cable (located towards the bottom of the camera) by carefully pulling it away from the white connector.

  27. rjP2GvarOROHuMya

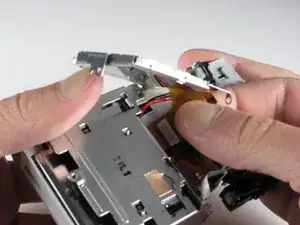

    • Finally, repeat the previous step with the thick orange strip located on the side of the screen.

    And there is ABSOLUTELY NO WAY of reinserting the cable pulled out in this step.

    Edis0n -

  28. P1oE5qD3gFjAxKNH

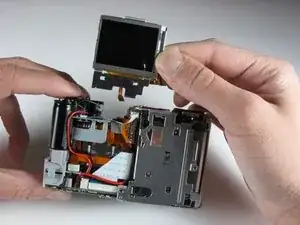

    • You have successfully removed the LCD screen. The camera is now ready for the replacement screen.
