If your Canon Powershot A720 LCD screen has been scratched, cracked, or shattered, your screen most likely needs to be replaced in order for your digital camera to continue running effectively. This guide will show you how to properly replace your screen without causing further damage to the camera in a matter of seven simple steps.

Remember, this camera has sensitive internal components that should be handled with both extreme caution and care. To get started, you'll need a Phillips-head screwdriver, a pair of tweezers, and a magnetic mat to ensure all of the magnetic components are safely stowed while working.

Be safe. You are working with glass components, so wear protective gloves if necessary.

  1. ingM2pQpxUHCcJTA
    ingM2pQpxUHCcJTA
    OV2r3Q3dEyC3p12i

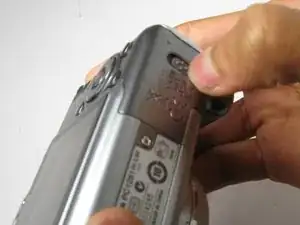

    • Use your thumb to push up the battery lock on the bottom of the camera.

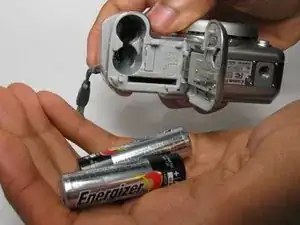

    • The battery compartment door will spring open and the batteries will slide out.

  2. jbUlAM3Z66cYcFXo
    • Place the camera down so that the lens is facing up.

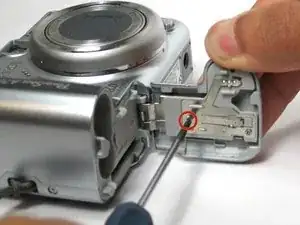

    • Remove the single 4 mm screw from the inside of the battery compartment using a Phillips #00 screwdriver.

    • Remove the door from the camera.

    • Always place screws on a magnetic mat and write the size and location of where they were removed to know where to place them back.

  3. iXXZjvgK3frRWLJs
    iXXZjvgK3frRWLJs
    T5U2wPTyKf2iAfXt
    KOTHDhJLy4nNikLs

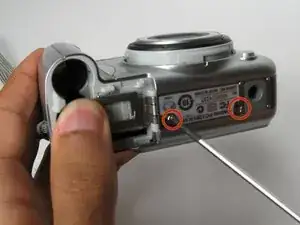

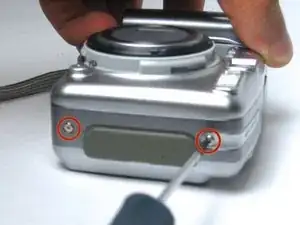

    • Remove the six 4 mm screws from the sides and bottom of the camera with a Phillips #00 screwdriver.

  4. 2mrGZ5sLjnDOE1EW
    2mrGZ5sLjnDOE1EW
    kUi1E6ZmlqUl5PXP
    JTZZGCHvNo6tgFrk

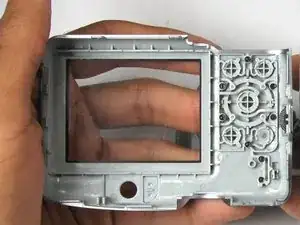

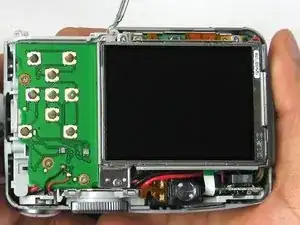

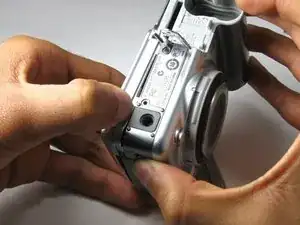

    • Separate the back case panel from the rest of the camera by gently prying it open with your hands.

    • The gray rubber cover labeled DC IN DIGITAL A/V OUT may fall out.

  5. Eu3efLNRguamyKZl

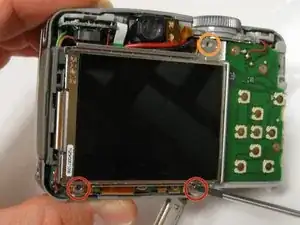

    • Remove the two 3 mm screws below the LCD screen mount with a Phillips #00 screwdriver.

    • Remove the top 4 mm screw with the Phillips #00 screwdriver.

  6. 2YF6MoWQoRW1aMM3
    2YF6MoWQoRW1aMM3
    rTDV1e2EmxpiFnRG
    hlCVMdMIJh4ZBpTM

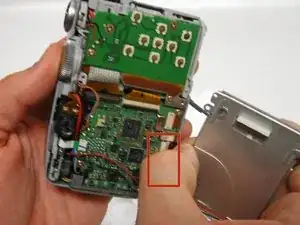

    • Carefully lift and turn over the LCD screen so that you are able to see the motherboard.

    • Potential for device damage: Treat the motherboard with care since it is very sensitive to static discharge.

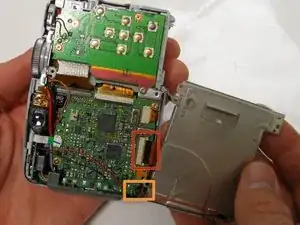

    • Carefully disconnect the LCD screen ribbon cable from its ZIF connector with your thumb and index finger.

    • Have your thumb and index finger cover as much of the ribbon's width and keep as close to the ZIF connector as possible without touching the motherboard, while pulling the ribbon cable out.

    • Potential for device damage: Be careful to not rip the ribbon wire when pulling it out.

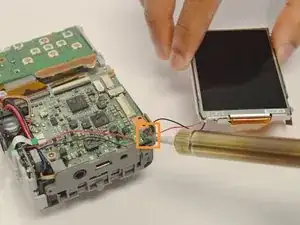

    • Use the soldering iron to separate the black and red power wires from the motherboard.

    • Note the location of where each wire was attached. The black wire is the negative power wire and the red wire is the positive power wire. Replacing them incorrectly could lead to power outages and damage to the motherboard.

  7. K5JmUbTAKo1a5RUk
    K5JmUbTAKo1a5RUk
    PHjw53HBoo2CD5bx
    DIrQfyM1UQsHSKNi

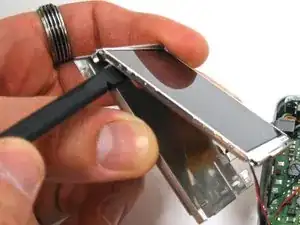

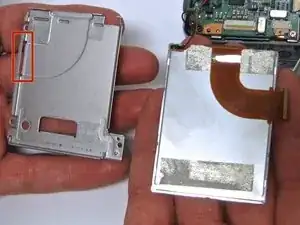

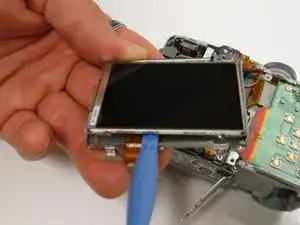

    • Insert the tip of the blue plastic opening tool between the LCD screen and the mount to unsnap the metal tabs.

    • Insert the flat end of the spudger underneath the LCD screen to break apart the glue that is attaching the LCD screen to the mount.

    • Potential for device damage: Avoid scraping against the power wires and ribbon wire. This may cause the ribbon wire to rip or detach the power wires.

    • Once you have separated the the glue, carefully pull out the LCD screen from the mount.

    • Pay attention to the wires and ribbon cable as you pull the LCD screen out of the mount. Make sure that you slide the ribbon wire through the slot to separate the LCD screen and mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
