Canon Powershot A720 IS Motherboard Replacement

Geschrieben von: Jamie
  • Kommentare: 0
Canon Powershot A720 IS Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

15 Minuten

Einleitung

This guide will assist in replacing the motherboard for the Canon Powershot A720 IS. Due to the difficulty of this project, it is important to be sure that the motherboard is what needs to be replaced. Improperly handling the motherboard can potentially result in permanent damage to the camera or the motherboard. To reduce the risk, an anti-static bracelet should be used. This project does require the use of a soldering iron; therefore, make sure you know how to safely and properly solder.

Be mindful to not touch the surface of the board. The oils in your hands can be harmful to the motherboard. If you need to adjust the camera, make sure to hold on to the case.

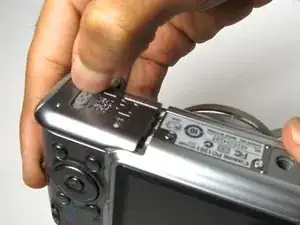

  1. bmEdAklYpoKpaU3p
    bmEdAklYpoKpaU3p
    jqLGZYMDtNQ3fiV1

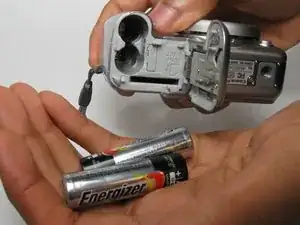

    • Push the grey rubber battery lock on the bottom of the camera to open the battery compartment.

    • Remove the batteries and set them aside.

  2. TMpx1iHdcTSNYAJs

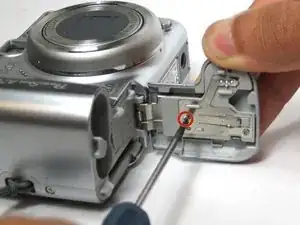

    • Place the camera down so that the lens is facing up.

    • Remove the single 4 mm screw from inside the battery door using a Phillips #00 screwdriver.

    • Remove the door from the camera.

  3. iMKOIxrBRKnN1wKS
    iMKOIxrBRKnN1wKS
    ekZbrZKHhwRfPTKr
    Q4bUsCeMXKhWdY35

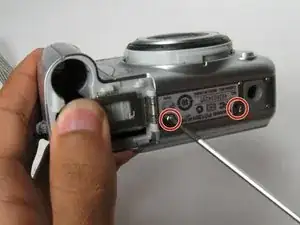

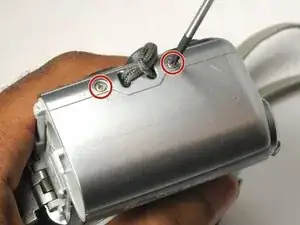

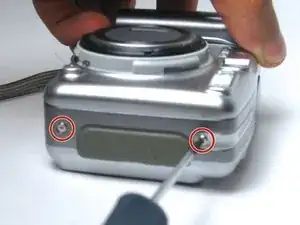

    • Remove the six 4 mm screws on the sides and bottom of the camera using a Phillips #00 screwdriver.

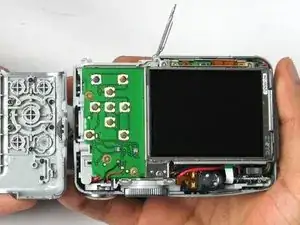

  4. E5XMpBItpfcfHqHI
    E5XMpBItpfcfHqHI
    hl4HMMBMPOpZtOaI
    ULvYCFQ4DwtNioQ2

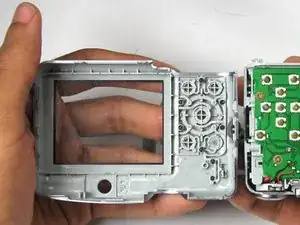

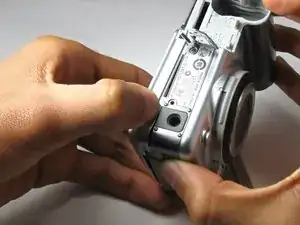

    • Separate the back case panel from the main camera body.

    • When separating the back panel, be careful; the internal wiring and electronics are fragile.

    • The gray rubber cover labeled DC IN DIGITAL A/V OUT may fall out.

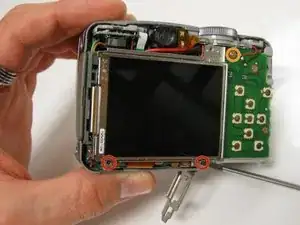

  5. FAUNGhkVtws5uX3f

    • Remove the two 3 mm screws below the LCD screen mount using a Phillips #00 screwdriver.

    • Remove the top 4 mm screw using a Phillips #00 screwdriver.

  6. JObhZfQ2fDbxsxEN
    JObhZfQ2fDbxsxEN
    IjBdjsQA3PyI5kvm
    5EwALRJUHRHnghI6

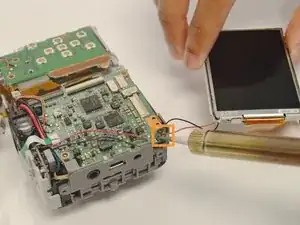

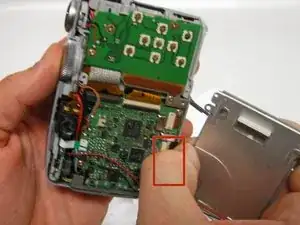

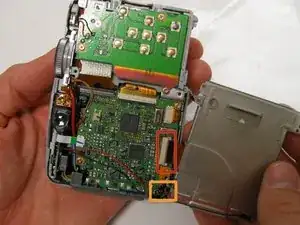

    • Carefully lift and turn over the LCD screen so that you are able to access the motherboard.

    • Carefully disconnect the LCD screen ribbon cable from its ZIF connector with your thumb and index finger.

    • When removing the ribbon, it is best to firmly grasp the ribbon cable with your thumb and pointer finger. Pull out the cable as straight as possible. This is the best practice to prevent damage to the ribbon cable.

    • Be careful to not rip the ribbon wire or the red and black power wires when pulling the LCD screen out.

    • Use the soldering iron to separate the black and red power wires from the motherboard.

    • Not knowing where the power wires go could disrupt the power distribution and lead to power outages and damage to the motherboard. The black wire is the negative power wire and the red wire is the positive power wire.

  7. ImSlgI45HDpdZodp
    ImSlgI45HDpdZodp
    ZQA2GlNOsisE5Jdb

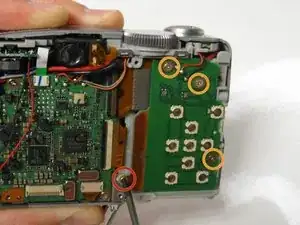

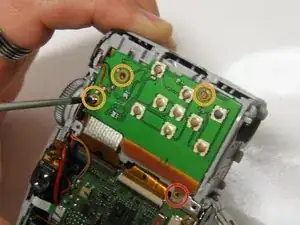

    • Remove the 3 mm screw that is between the circuit boards using a Phillips #00 screwdriver.

    • Remove the three 3.5 mm screws that are on the button circuit board using a Phillips #00 screwdriver.

  8. Dy1oucILL1iHogN6

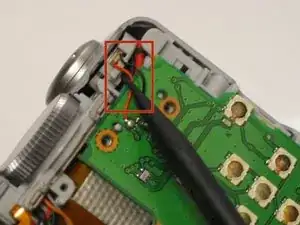

    • Use the spudger to carefully unclip both wires from underneath the shutter button and the dial housing unit.

    • Be careful not apply too much force on the wires with the spudger because you may rip them off.

    • Make a note of which wire goes where. Putting the wires back in the wrong spot may cause damage to the camera.

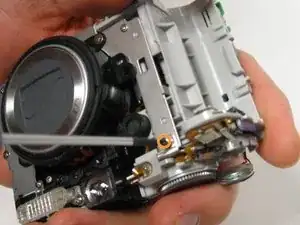

  9. MY15AWJDSLgQbMyG
    MY15AWJDSLgQbMyG
    d3kGZvldyhsZD6sO

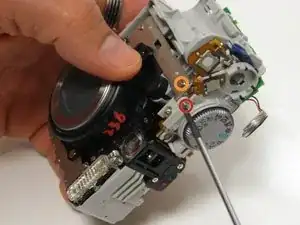

    • Turn the camera over and remove the 4.5 mm screw that is next to the settings dial using a Phillips #00 screwdriver.

    • Remove the 3 mm screw from the metal frame to detach the battery housing unit using a Phillips #00 screwdriver.

  10. tRvLGq2WGYErNJcl
    tRvLGq2WGYErNJcl
    jU5JtbQWE31uMUoP
    saHnciTvhbkxZkEi

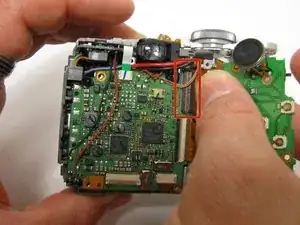

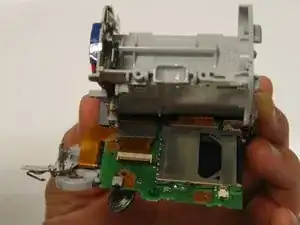

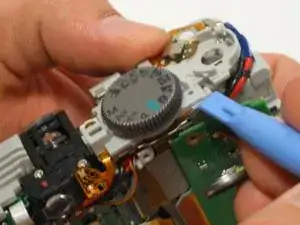

    • Use the plastic opening tool to separate the user button circuit board from the shutter button and settings dial housing unit.

    • Carefully disconnect the ribbon cable that is attached to the user buttons circuit board from the ZIF connector that is attached to the motherboard with your thumb and index finger. Get as close to the ZIF connector as possible without touching the motherboard.

    • Be careful not to the rip the ribbon cable out of the ZIF connector when removing.

    • Remove the user button circuit board.

  11. mLJfrfKYJA1hDKTh
    mLJfrfKYJA1hDKTh
    MoDLGbqBryXOHMP1

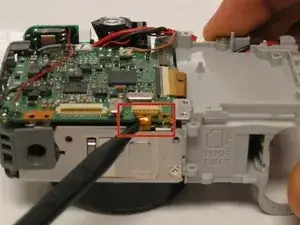

    • Use the spudger to carefully remove the attached ribbon cable.

    • Alternate applying pressure on both sides of the ribbon cable to remove it evenly from the ZIF connector.

    • Be careful not to rip the ribbon cable attached to motherboard out of the ZIF connector.

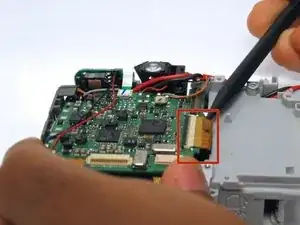

  12. rwoipWyFKVfotOhn
    rwoipWyFKVfotOhn
    6GNt2oRd4QE6tXkj

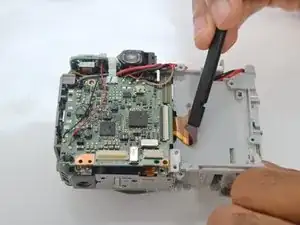

    • Use the spudger to remove the ribbon cable from the ZIF connector.

    • Apply pressure evenly between each side of the ribbon cable to avoid tearing the cable.

  13. fNGArWmajYj6QBvh

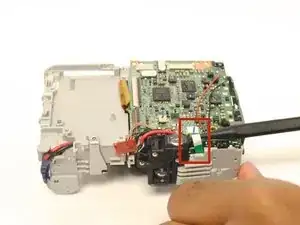

    • Use the spudger to remove the green ribbon from the attached ZIF connector.

    • Due to the size of the cable, it is very important to be gentle with the cable when removing it from the connector.

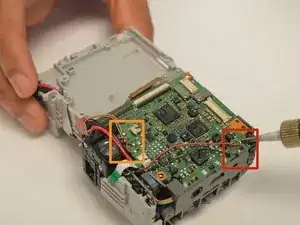

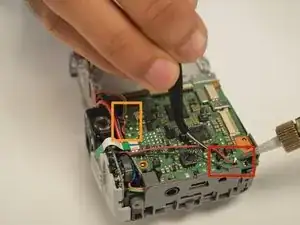

  14. qAJsUhciMuEjNGVc
    qAJsUhciMuEjNGVc
    cqlNlNtkJ5cCy4kW
    WVYLhWHQm2hPNNqW

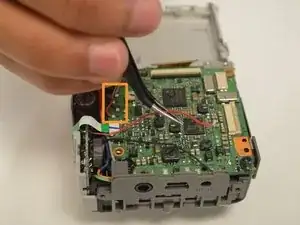

    • Desolder all of the wires attached to the motherboard and move them aside with the tweezers.

    • Be observant of where you are soldering because you can easily disrupt the power distribution.

    • Be mindful about not touching the board with the soldering iron. It is usually best to apply the tip of the soldering iron to the leads or the arms of the component.

  15. CY412Rj5It5GOEra
    CY412Rj5It5GOEra
    UqkkKX2NIDLdOLqC
    ZOv5HpWEdDubAK3c

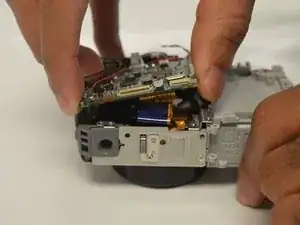

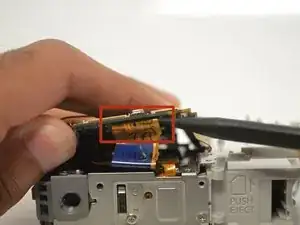

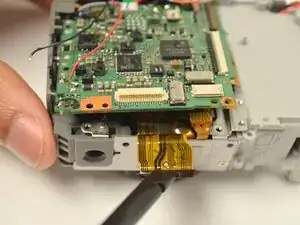

    • After all of the ribbons have been disconnected, gently lift the motherboard to expose the ribbon cable that connects the motherboard to the lens.

    • Use the spudger to remove the the ribbon cable attached to the motherboard. Be sure to alternate pressure to both sides of ribbon cable to evenly remove.

    • Double check that all cables are disconnected and free from the board.

  16. DS3oQ3s5ACAVXEW4
    DS3oQ3s5ACAVXEW4
    YBnQPLQ6sJyqB2EO

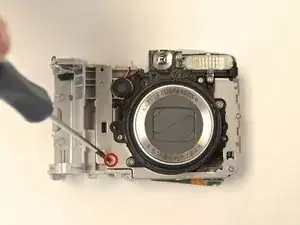

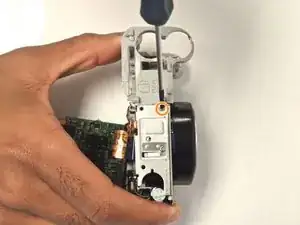

    • With the lens facing up, remove the 3 mm screw that attaches the bottom of the battery housing unit to the lens using a Phillips #00 screwdriver.

    • Turn the camera over so the bottom is now facing up.

    • Remove the 3 mm screw to disassemble the battery housing unit from the camera using a Phillips #00 screwdriver.

  17. 2pWZsKy4YBygZpyK
    2pWZsKy4YBygZpyK
    IJgv3OGTwCEQYL2o

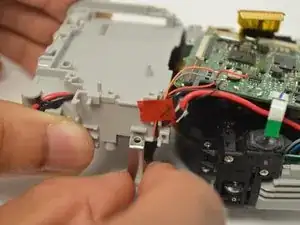

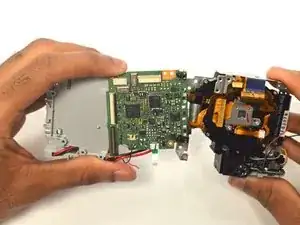

    • Remove the metal frame from battery housing unit.

    • Separate the lens from the body, being careful to keep all of the parts together. Set aside in a safe location.

    • Take a picture of how the lens is attached to the rest of the camera so that it is easy to put back on when re-assembling the camera.

    • Be careful not to apply too much force when pulling apart the metal frame. You may cause damage to nearby wires and/or stretch the metal frame.

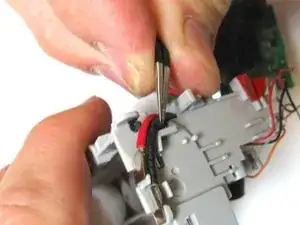

  18. Xo64fEDu6LCEtDUM
    Xo64fEDu6LCEtDUM
    2taDDPBE3KtyVMjO

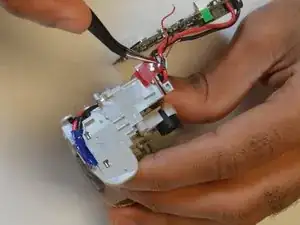

    • Use the tweezers to remove the red tape and rubber strap to begin removing the wires from the plastic hooks.

    • Be very careful when removing the wires; too much force can cause damage to the wires or the plastic hooks.

  19. nKQra6kpWxatxrJ2
    nKQra6kpWxatxrJ2
    GhXddfuTMuTGK6nj
    OY3CWgjeTDGF4Net

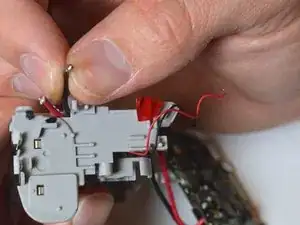

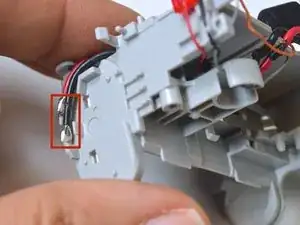

    • Use the soldering iron to remove the red and black wires from the battery contacts.

    • Be aware of the placement of the red and black power wires during re-assembly. Misplacement can cause damage to the camera.

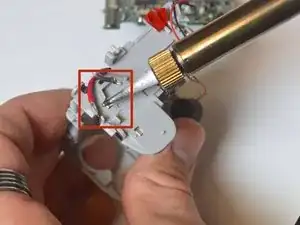

  20. QSHXpjsOiSpqNjTT
    QSHXpjsOiSpqNjTT
    Lbvoim4hFS1MuoRf

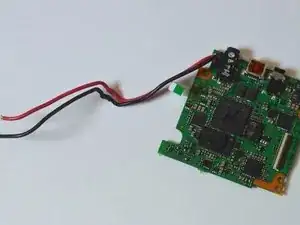

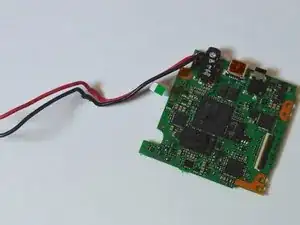

    • Use the soldering iron to melt the wire contact points and detach the motherboard.

    • Set aside in a place for later disposal and reference when re-assembling the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
