Canon Powershot A720 IS Shutter Button Replacement

Geschrieben von: Ismael R
  • Kommentare: 0
Canon Powershot A720 IS Shutter Button Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

Have you ever had your shutter button get stuck in the middle of taking pictures? Use this guide to get it back in place.

  1. jIUMqfXXdZCgkfxL

    • Carefully insert the tip of the tweezers in the space between the shutter button and the zoom dial. Gently insert the tip under the button and slowly lift.

    • If this step does not dislodge the shutter button, move on to step 2.

    • Do not force the tip of the tweezer or insert the tweezer too deep in between the shutter button and zoom dial. It will cause permanent cosmetic and button damage to the camera.

  2. DqaPg6iXVE2e1wvv
    DqaPg6iXVE2e1wvv
    OdTFL2ErLjSbAQLx

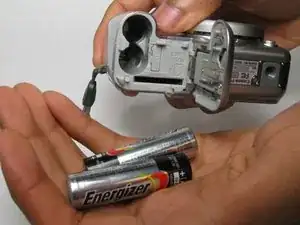

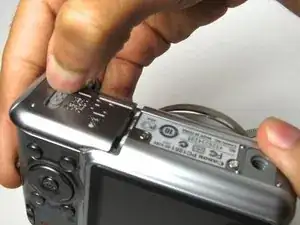

    • On the bottom of the camera, open the battery compartment by pushing the lock up. The door will then spring open allowing you to slide the batteries out.

    • If an SD card is also inserted, push on it to easily remove it from the camera.

  3. rUFH2qmqbjmthIJu
    rUFH2qmqbjmthIJu
    Sq1tDRnZTvENVZvv
    Eg2XitGE4EdcZ141

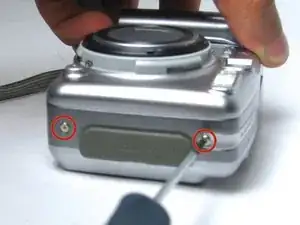

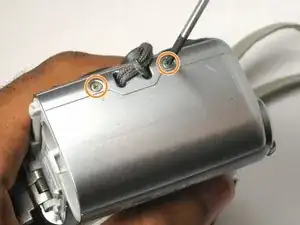

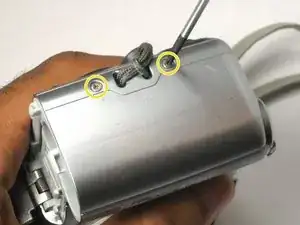

    • On the left side of the camera remove the two visible 4mm Phillips head screws.

    • On the right side of the camera remove the two visible 4mm Phillips head screws.

    • On the bottom of the camera remove the two visible 4mm Phillips head screws.

  4. Il22DWWbD112U3s4
    Il22DWWbD112U3s4
    I6OBn3BRX3VMYIYH
    NJHuh21rNMB4siia

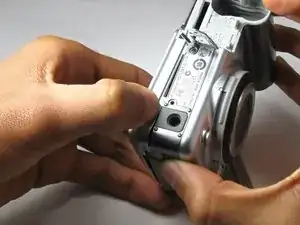

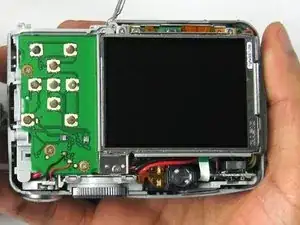

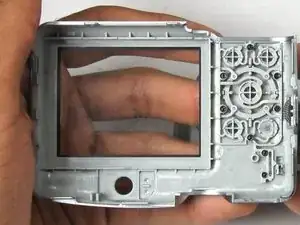

    • Slowly and gently pry open the back case panel from the rest of the camera.

    • The gray rubber cover labeled DC IN DIGITAL A/V OUT may fall out.

  5. bKXY5216DyHIBf1s

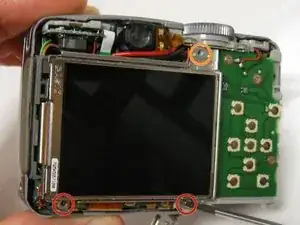

    • Remove the two 3 mm screws below the LCD screen using a Phillips #00 screwdriver.

    • Unscrew the top 4 mm Phillips head screw.

  6. hyd6dEVnDO4utgKn
    hyd6dEVnDO4utgKn
    HGdkWRQTRH3tO1Xq

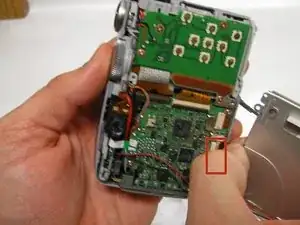

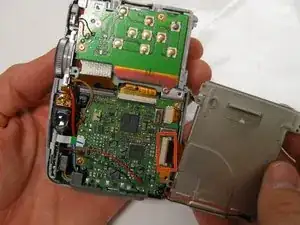

    • Gently turnover the LCD screen so that the motherboard is exposed.

    • Carefully pull the ribbon cable straight out using your thumb and index finger.

    • The ribbon cable is fragile and will break if bent too much.

  7. cibk4sZSaDhJLOwJ
    cibk4sZSaDhJLOwJ
    u4SwBaMN4KfVSvMp

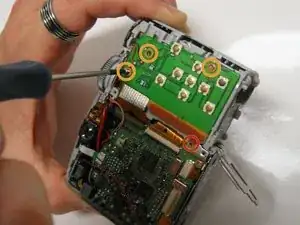

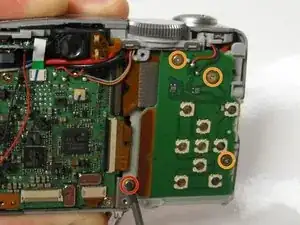

    • Remove the 3mm Phillips head screw between the circuit boards.

    • Remove the three 3.5mm Phillips head screws on the circuit board.

  8. hh5DpVkTvueITLfc
    hh5DpVkTvueITLfc
    aaxS3nnjpZ5LtQTO
    thk5ONIhFIBniQe4

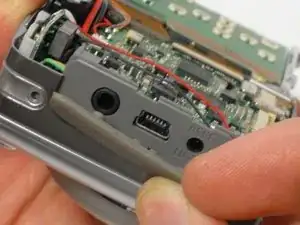

    • Remove the gray rubber cover labeled DC IN DIGITAL A/V OUT if it hasn't fallen out yet on its own.

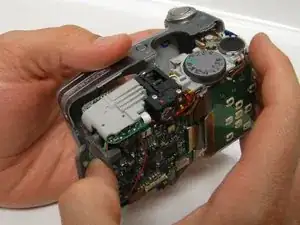

    • Carefully pull the front panel away from the rest of the camera.

  9. MXlhRybvtCqtRhSF
    MXlhRybvtCqtRhSF
    ltXJFBCcfnLtsxRk

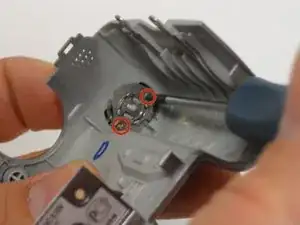

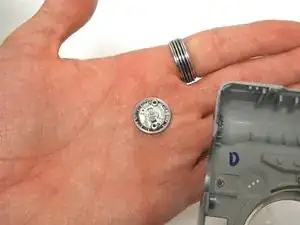

    • In the front panel remove the two 2.5mm Phillips head screws attached to the shutter button.

    • The shutter button and other components will fall out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
