Canon Powershot ELPH 100 HS LCD Display Replacement

Geschrieben von: Jacob
  • Kommentare: 0
Canon Powershot ELPH 100 HS LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

20 - 30 Minuten

Einleitung

A common issue with this camera is a cracked display screen or the screen not showing the picture, meaning it is damaged. This guide will walk you through the process of replacing the screen.

  1. TWGH1BEFRwCatOVG
    TWGH1BEFRwCatOVG
    PaPpARHCRNc5DMaX
    OXPNHbWxk55WLaA4

    • Locate the battery cover on the bottom of your camera.

    • Slide the tab to the right to open the battery cover.

  2. 3VjtsfISpLcIXJaq
    3VjtsfISpLcIXJaq
    4Yor2QGNYKLWxCVl

    • Flip the battery cover open.

    • Using your fingers, slide the battery out of the camera.

    • This was not the original battery that came the camera, so yours may look different.

  3. TXV1AxrSPgeHJxf3
    TXV1AxrSPgeHJxf3
    PvRH5yUcIHlLxjaF
    kBIVCCfsOsQX1UWq

    • Push down on the memory card until it clicks and releases.

    • Pull up on the memory card to remove it.

  4. 4i25NSBMoNyUJR5i

    • Using the Phillips #00 screwdriver, remove the two 3.1mm screws from the bottom of the camera.

    • Keep track of all the screws that are being taken out from the outer case.

    • The display screen of the camera should be facing towards you.

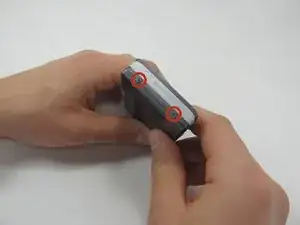

  5. WJQpUpOGpN6jKJfn

    • Ensure that the screen is facing you, and then rotate it till you see the screws on the side of the camera.

    • Use the Phillips #00 screwdriver to remove the two 3.1 mm screws.

  6. fPPIFChmlsAyqlTL
    fPPIFChmlsAyqlTL
    fqAWUlJVUNtjTbyt

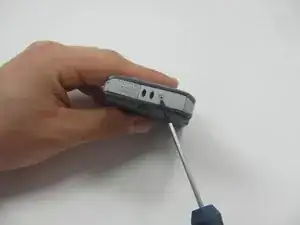

    • With the screen still facing you, rotate the camera 180 degrees.

    • The side with the charging port should now be facing up.

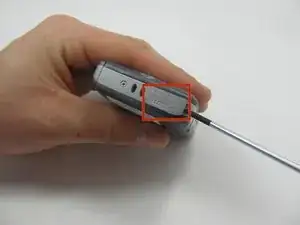

  7. JSO3DZwnYF4qAJmK
    JSO3DZwnYF4qAJmK
    WGmZJgN3vSREZyIp

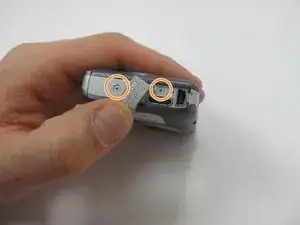

    • Use the Philips #00 screwdriver to pry open the charging port cover.

    • Once you pry open the charging port cover, rotate the cover so that you have access to the screw underneath. Which is seen in the next image.

    • Remove both 3.1 mm screws using the Phillips #00 screwdriver.

    • The image still shows the screw from step 3 in place.

  8. OHS1uPv2UHW5fxJd
    OHS1uPv2UHW5fxJd
    iEYKXSCCPYVeml1t

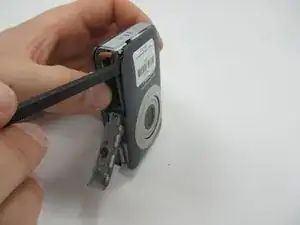

    • Turn the camera so the bottom is once again facing up.

    • With the battery door still open, use a spudger to remove the cover from the front of the camera.

    • Carefully go around all of the edges until the cover is released.

  9. 3RItXwdntYh1MZRy

    • Once the entire front cover has been released carefully pull it off.

    • Be careful not to break the tabs that hold it in place.

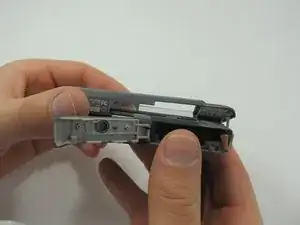

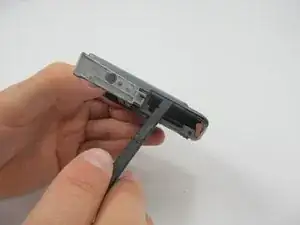

  10. lFX11wax1HDAWnrk
    lFX11wax1HDAWnrk
    lPHZJsANwshQpXfe
    6GWZDdhYmJfIDYEQ

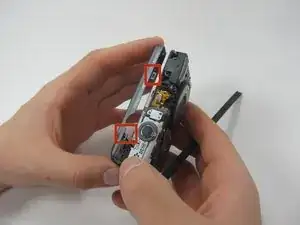

    • Just like Step 4-6 , carefully use the Spudger to remove the back cover.

    • Go along all the borders of the back cover so that it releases from the camera safely.

    • Be careful not to break the tabs.

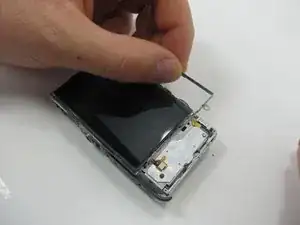

  11. cSRPVw34LdPRsDm3
    cSRPVw34LdPRsDm3
    RhAj3x2OClOIuwyX

    • Remove the 3.1mm screw on the top-right side of the LCD display screen.

  12. KwldELR4pL2xf3iY

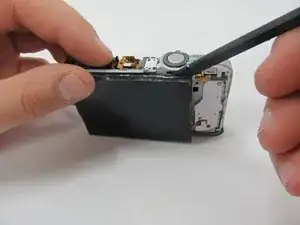

    • Use the spudger to carefully separate the screen from the frame.

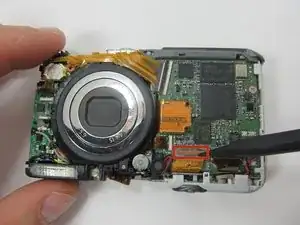

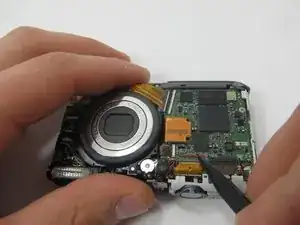

  13. UvfsXXVMKSbIkpAb
    UvfsXXVMKSbIkpAb
    QGAmvcnXSFvvtsbt

    • Use the spudger to lift up the latch on the zero insertion force connector (ZIF).

    • Slide the now free ribbon cable from the connector.

  14. wTdUJxr3M2rPTsEJ
    wTdUJxr3M2rPTsEJ
    55ouvEmXVvl4kI2Q

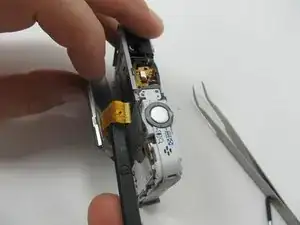

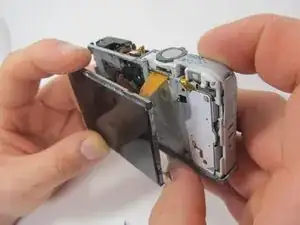

    • Holding the display screen, gently pull the ribbon cable out through the frame of the camera.

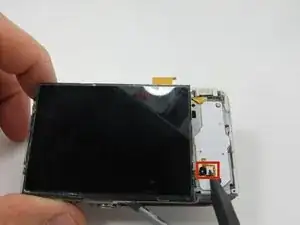

  15. o6gFlY6qSx4fFkQF
    o6gFlY6qSx4fFkQF
    r3MRBcZBMxw6vvjd

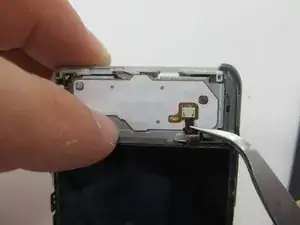

    • Using tweezers, carefully remove the ribbon cable from the connector shown.

  16. SWh5BiHpVFUXhUg1

    • The display screen should now be free.

Abschluss

To reassemble your device, follow these instructions in reverse order.
