Einleitung

The screen is a crucial part of the camera: it displays images for consumers to view their pictures instantly. Damage to the screen may require replacement.

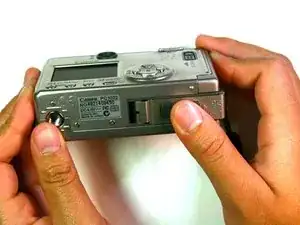

  1. jnG5EusXabWjUUcD
    jnG5EusXabWjUUcD
    iPaEuATZkHq3NONl
    • Slide the grey latch to open the battery compartment.

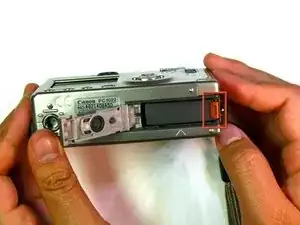

  2. ILSvsikeGm5VDBDU
    ILSvsikeGm5VDBDU
    LQqCmCa1ZuWNGHWj

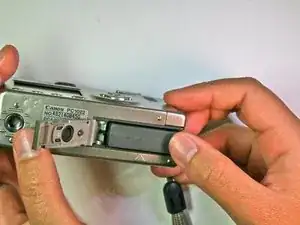

    • Push and slide the orange retaining clip to the right to remove the battery.

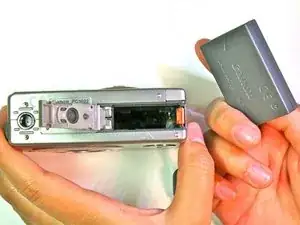

  3. Ng5LKyIfSSF4ZItG
    • Remove battery from the camera.

  4. FgNfZomEKeWVxAvE
    • Remove the lanyard.

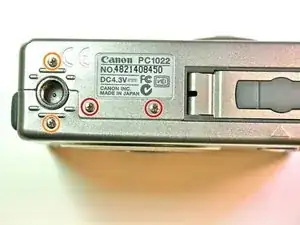

  5. ARCLXwgcvyLsZJg6
    • Position the camera so that the bottom is facing up.

    • Remove the two 2.3mm screws beneath the name plate.

    • Remove the two 2.8 mm screws surrounding the threaded tripod mount.

  6. 55YZVyDXHytDYF4G

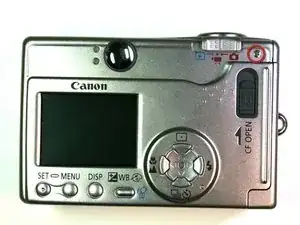

    • Remove the 3.8mm screw from the back face of the camera.

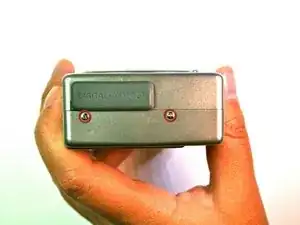

  7. DatMem3EBrQJtHAf
    • Remove the two 2.3mm screws from the right face of the camera.

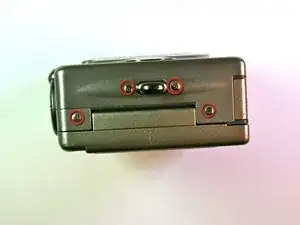

  8. M1hX242rya1yPONK
    • Remove the two outer 3.2mm screws from the left side of the camera

    • Remove the two inner 3.7mm screws from the left side of the camera.

  9. uMAPiWK1SV6QYy6w
    • Pull the back face panel away from the front end of the body. This may take some wiggling and force.

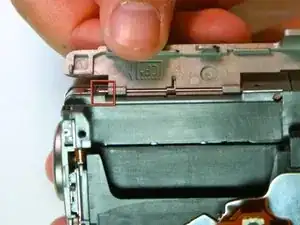

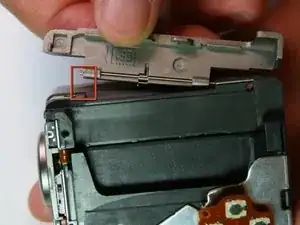

  10. NgZ3DTZsNolIUeMh
    NgZ3DTZsNolIUeMh
    QUoRlh2LBV3gUYxY
    • Remove the CF card door from the left side of the camera body.

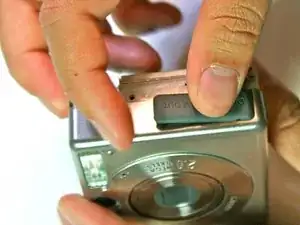

  11. ovrKyrxa1FmsQsXT
    ovrKyrxa1FmsQsXT
    GSxAnfOBNIGAyjQv

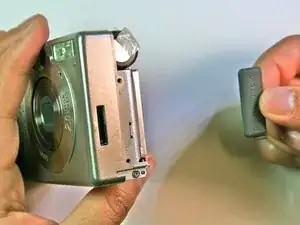

    • Slide the rubber digital a/v cap out of place on the front plate.

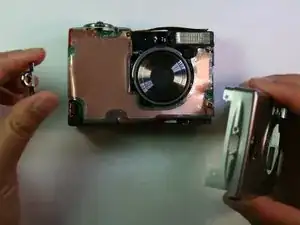

  12. RgoureTMknZwWY3m
    • Remove the front face by sliding it off.

  13. LcUtagAQEgQ4YDQX
    • Remove the rubber seal that covers the right side of the viewfinder.

  14. h2sDExe4TbFX5gI4

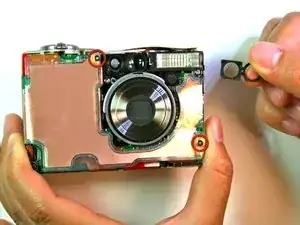

    • Remove the two 3.9mm screws that hold the laminated copper sheet.

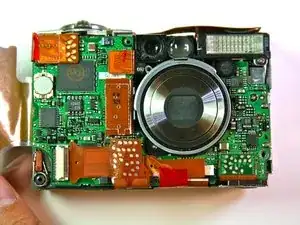

  15. OgRJQgGnTgnNcB5b
    OgRJQgGnTgnNcB5b
    5x5EmJpDCLDFpnWs

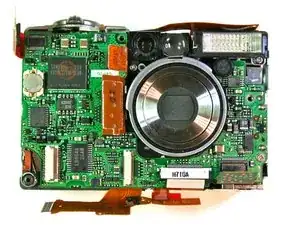

    • Remove the wire connections that connect along the bottom of the motherboard.

  16. Q3t1RqIp53n5ykR5

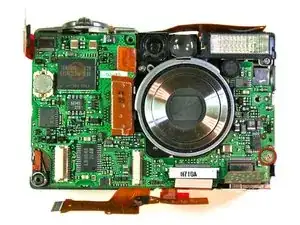

    • Remove the single 3.8mm screw that is on the motherboard.

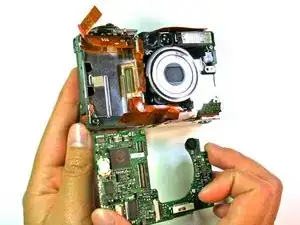

  17. WcR5GVmyArHoIETg
    • Remove the motherboard from the main frame of the camera body.

  18. eyGdHXOgYcZyOF1Q
    • After completing the removal of the motherboard, remove the tripod mounting screws (3.4mm) on the left side

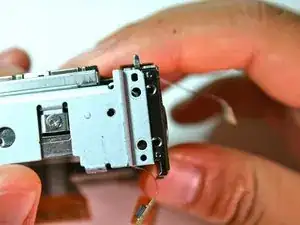

  19. klblcEXNurvcGmGA
    • Carefully pry the left side of the housing plate from the bottom of the tripod mounting plate, releasing it from the two alignment pegs next to the screws

  20. aaSchJFjL2YRY1Uo

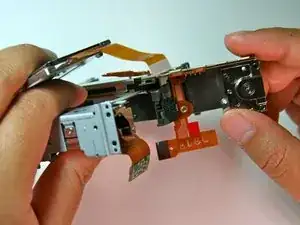

    • Lift the left side of the tripod mounting plate towards you, lift free the mounting plate from the rest of the assembly

    • Be careful because there are still wire connections attached to the mounting plate which you don't want to remove

  21. jqCMUqLwifGfOTLh

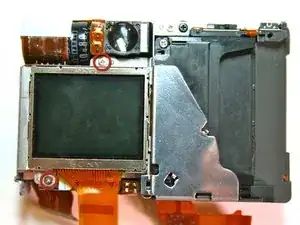

    • Remove the 2.1mm screws from the bottom and top of the screen connecting it to the housing plate

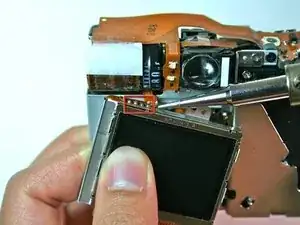

  22. tnbFEUnupCdJCyx2
    • Unsolder the four points at the top of the screen with a soldering iron

Abschluss

To reassemble your device, follow these instructions in reverse order.
