Canon Powershot SD550 Motherboard Replacement

Geschrieben von: Luke Thompson
  • Kommentare: 3
Canon Powershot SD550 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 Minuten

Einleitung

This guide provides the steps to follow to disassemble the Canon Powershot SD550 down to the main system board. Removal of the main system board is required if the existing board has failed, is in need of cleaning, or requires maintenance.

  1. O4N4YhNqefgppANR

    • Remove the battery and SD card from the camera.

  2. RcfWZ4sVXCwdHkJw

    • Remove the three 3.8 mm screws from the underside of the camera.

    • Each of the screws is slightly different, so it is important that you note the original location of each screw.

  3. mFXsf6DuNvpBvWSM
    mFXsf6DuNvpBvWSM
    LoWipxOowNgnjGpj
    2tPxL1WggNERhuyL

    • Remove the 3.2 mm screw from the right side of the camera.

    • Remove the 2.2 mm screw from the right side of the camera.

    • One of these screws is hidden under the USB port cover.

    • Lift the side panel off.

    • Remove the 1.8 mm screw from underneath the side panel.

  4. l5PQGGmVqpfpGrF2
    l5PQGGmVqpfpGrF2
    F3BUqEqHERjbmHGe
    BBC46DSkXE2chl5H

    • Remove the two 2.2 mm screws from the left side of the camera.

    • Lift the plate from the camera.

  5. XZbXPoKfJfmcOeKN
    XZbXPoKfJfmcOeKN
    ndlQK5QfmHAJGKjG
    MWWjUkluRo2cigTG

    • Gently lift the rear of the case to remove it from the camera.

  6. iTQeOPAORDIotnCN
    iTQeOPAORDIotnCN
    Wug1VjVVJPokWyJ2
    MFSQtIRSFMstdgF2

    • Remove the front of the camera body.

    • Be sure to keep track of the rubber ring.

    When removing the front, this little clear rubbery piece might fall out.

    Cody -

  7. YaLsNsnJRL1PE55j
    YaLsNsnJRL1PE55j
    pLbCiPRDaKBheMfg
    FhTkXiBxDhgbSiSh

    • Peel the navigation buttons from the button panel and set them aside.

    • To free the LCD display, remove the 2.9 mm screw in the top left corner.

    • Rotate the screen clockwise until it lifts away from the camera.

    • There are two ribbon cables attached to the rear of the screen. Do not try to pull the screen off at this point.

    After removing the screw, there are two metal hooks overlapping. Once those are separated, it was easy to lift the display. Also, this metal bracket kept falling off.

    Cody -

  8. TgFtUSnFxYCFvCPN
    TgFtUSnFxYCFvCPN
    nZf31k4D1pTIKltO

    • To unplug the ribbon cables, pull them straight out of their plugs. Do this gently to avoid damaging the connections.

    • After disconnecting both cables, pull the screen away from the camera to remove it.

    During reassembly, I had to remove the button assembly to attach the large ribbon cable. I had to remove these two screws (there is a hidden ribbon cable under the button assembly, be careful)

    Cody -

  9. MSHEe3BhiDQxHmVq
    MSHEe3BhiDQxHmVq
    RXqHKT142txIf3o2

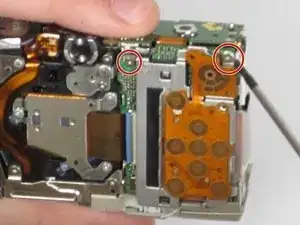

    • Remove the two 3.4 mm screws still holding the button contact panel onto the camera.

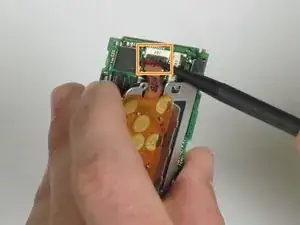

    • Using the spudger, disconnect the ribbon cable attaching the button contact panel to the motherboard.

    • Gently pull the button contact panel away from the motherboard.

  10. UuUhpdxjCSHOFQOU
    UuUhpdxjCSHOFQOU
    ym1pHBeykJcWAVOH

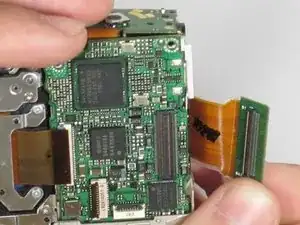

    • Underneath the button contact panel, you will find a large connector.

    • Using the spudger as leverage, unplug the connector, and pull it away from the motherboard.

  11. vhMoVLH3cFCPsDG4
    vhMoVLH3cFCPsDG4
    fERTFoXFUIYXWDcj
    mtYNbfIeqJKugIUw

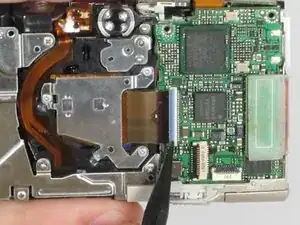

    • The last ribbon is held in place by the blue flap. Insert the spudger under the blue flap.

    • Using the spudger as leverage, flip the blue flap up, which will unlock the ribbon.

    • Place the spudger into the hole in the ribbon, and pull the ribbon away from the connector.

  12. UEQ4AGM4nPhuByoC

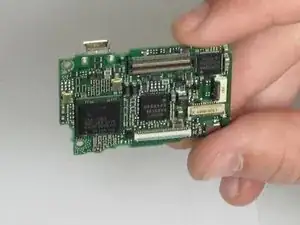

    • Remove the motherboard by pulling it out with either tweezers or the spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
