Canon Powershot SD550 Shutter Button Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

The shutter button is one of the most commonly used buttons on a camera. Therefore, it is also the most likely to break.

  1. O4N4YhNqefgppANR

    • Remove the battery and SD card from the camera.

  2. RcfWZ4sVXCwdHkJw

    • Remove the three 3.8 mm screws from the underside of the camera.

    • Each of the screws is slightly different, so it is important that you note the original location of each screw.

  3. mFXsf6DuNvpBvWSM
    mFXsf6DuNvpBvWSM
    LoWipxOowNgnjGpj
    2tPxL1WggNERhuyL

    • Remove the 3.2 mm screw from the right side of the camera.

    • Remove the 2.2 mm screw from the right side of the camera.

    • One of these screws is hidden under the USB port cover.

    • Lift the side panel off.

    • Remove the 1.8 mm screw from underneath the side panel.

  4. l5PQGGmVqpfpGrF2
    l5PQGGmVqpfpGrF2
    F3BUqEqHERjbmHGe
    BBC46DSkXE2chl5H

    • Remove the two 2.2 mm screws from the left side of the camera.

    • Lift the plate from the camera.

  5. XZbXPoKfJfmcOeKN
    XZbXPoKfJfmcOeKN
    ndlQK5QfmHAJGKjG
    MWWjUkluRo2cigTG

    • Gently lift the rear of the case to remove it from the camera.

  6. iTQeOPAORDIotnCN
    iTQeOPAORDIotnCN
    Wug1VjVVJPokWyJ2
    MFSQtIRSFMstdgF2

    • Remove the front of the camera body.

    • Be sure to keep track of the rubber ring.

    When removing the front, this little clear rubbery piece might fall out.

    Cody -

  7. CXQhBfXuNXTVGHUg
    CXQhBfXuNXTVGHUg
    UTE16NRKPGD24yic

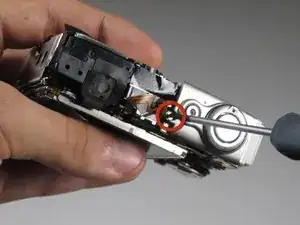

    • Next, unscrew the .115 inch screw fastening the shutter button to the camera.

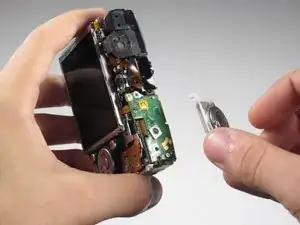

    • Now lift the button away from the camera, exposing the button board.

    • You have successfully removed the shutter button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
