Quick guide on removing and replacing the plastic back cover. Replacement is required if the functions buttons fail to work, or the casing has been damaged.
-
-

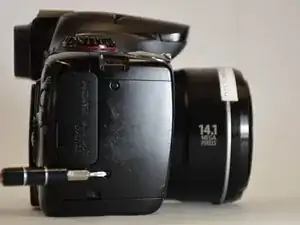

Position the camera so that the right side is visible as shown.
-

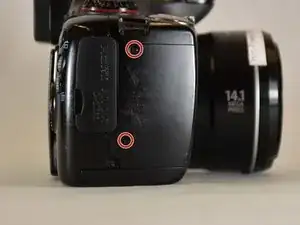

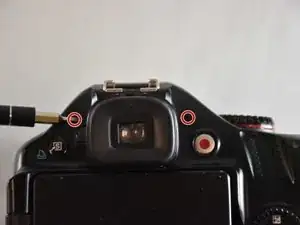

Unscrew the two 6 mm screws shown using a screwdriver.
-
-
-

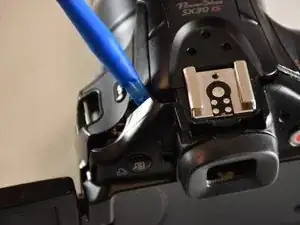

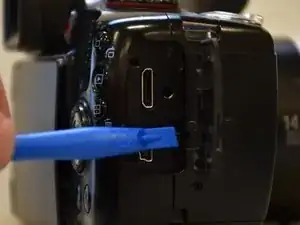

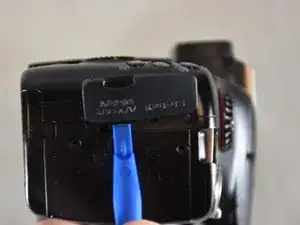

Remove the plastic flap by pressing down on the center of the hinge and pulling on the flap with the spudger.
-

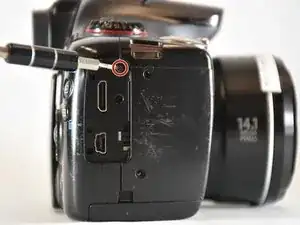

Then, unscrew the lone 6mm screw that was under the plastic flap.
-
-
-
Turn the camera so that the bottom is visible, as shown.
-

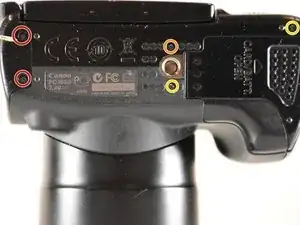

Unscrew the three 4mm screws shown red using a screwdriver.
-

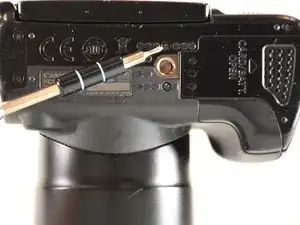

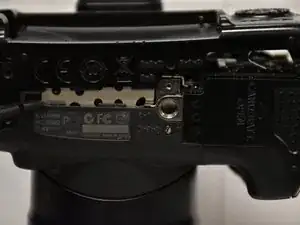

Unscrew the single 6mm screw.
-
Do not touch the screw shown yellow, removal is unnecessary. (Note: the top right yellow screw should be removed)
-
-
-

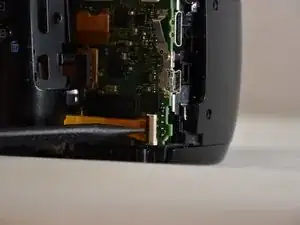

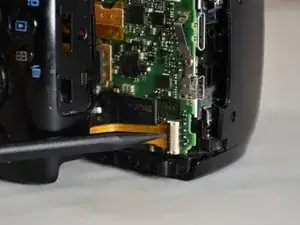

Detach the wire by lifting the small black bar that holds it to the main body of the camera.
-
To reassemble your device, follow these instructions in reverse order.
