Einleitung

  1. ABbeCsVPGTEJntAh
    • Turn the camera so the back of it is facing you.

    • Pull the LCD screen towards you in order to open it,

  2. sEIhZrWMCGTvGdoB
    sEIhZrWMCGTvGdoB
    CbM1XNtZpwZBvQ3Q
    • Unscrew the two 3 mm screws shown on the left side of the LCD screen panel using a Phillips screwdriver.

  3. ZtXASnZywg6yEKLs
    ZtXASnZywg6yEKLs
    HMJbANw12DZnVABg
    AV5Eu3qWvZIqYTkn
    • Unscrew the two 3 mm screws shown on the right side of the LCD screen panel.

  4. nAfIfUveJG1TcCSr
    nAfIfUveJG1TcCSr
    VITXpIPUvcRyu2TM
    • Using the plastic opening tool, remove the rear case of the front LCD cover.

  5. FCXnNFOqW6HiBWMW
    • Pull off the back panel of the LCD screen and the plastic wire protector. Then replace the back panel.

  6. qYt1P1wD5BxhEQEh

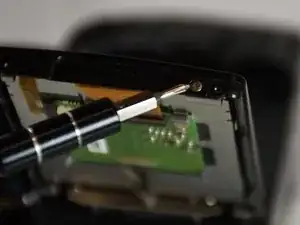

    • Unscrew the 2mm screw on the outer edge of the panel

  7. luvKsGGGHjVYn2TW
    luvKsGGGHjVYn2TW
    VWSFDXGpyamHSpQQ

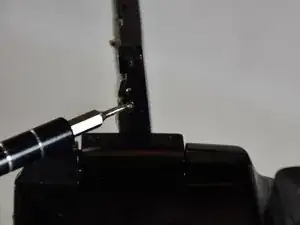

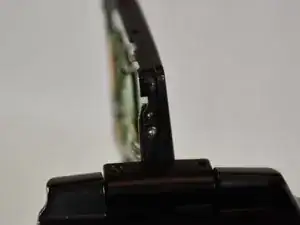

    • Unscrew the 3mm screw on the inner edge of the panel. This is easily done by rotating the screen to be perpendicular to the body of the camera, but be careful not to damage the wires or the circuit board.

    • The panel will fall right off

Abschluss

To reassemble your device, follow these instructions in reverse order.
