Canon Powershot SX30 IS LCD Panel Rear Cover Replacement

Geschrieben von: Ellis DeVoe
  • Kommentare: 0
Canon Powershot SX30 IS LCD Panel Rear Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

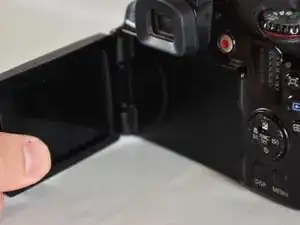

  1. ABbeCsVPGTEJntAh

    • Turn the camera so the back of it is facing you.

    • Pull the LCD screen towards you in order to open it,

  2. sEIhZrWMCGTvGdoB
    sEIhZrWMCGTvGdoB

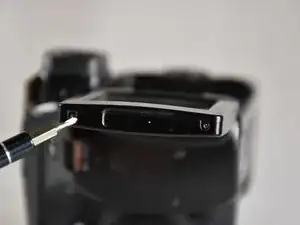

    CbM1XNtZpwZBvQ3Q

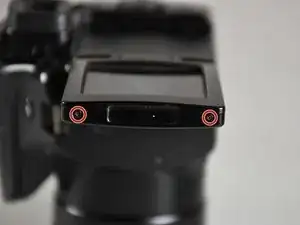

    • Unscrew the two 3 mm screws shown on the left side of the LCD screen panel using a Phillips screwdriver.

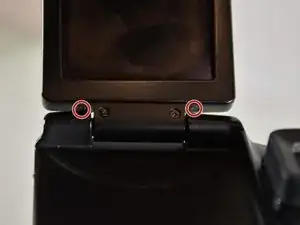

  3. ZtXASnZywg6yEKLs
    ZtXASnZywg6yEKLs

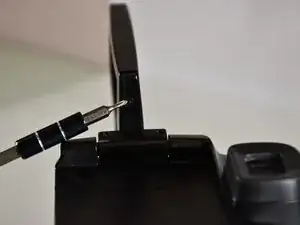

    HMJbANw12DZnVABg

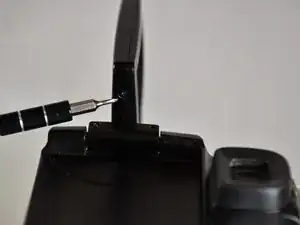

    AV5Eu3qWvZIqYTkn

    • Unscrew the two 3 mm screws shown on the right side of the LCD screen panel.

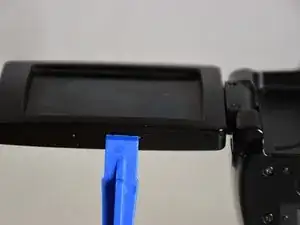

  4. nAfIfUveJG1TcCSr
    nAfIfUveJG1TcCSr
    VITXpIPUvcRyu2TM

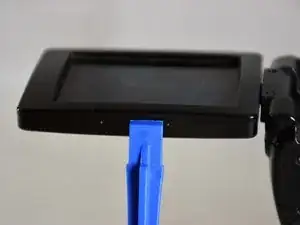

    • Using the plastic opening tool, remove the rear case of the front LCD cover.

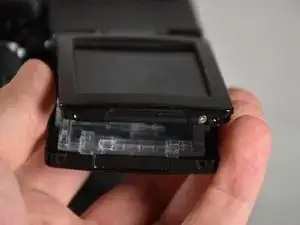

  5. FCXnNFOqW6HiBWMW

    • Pull off the back panel of the LCD screen and the plastic wire protector. Then replace the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
