Canon SX40 HS camera Battery Door Contact Replacement

Geschrieben von: John Bui
  • Kommentare: 0
Canon SX40 HS camera Battery Door Contact Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. nUWBF2IxDOEcwQVY

    • Orient the camera so that the bottom of the camera is facing up and open the battery compartment.

  2. 6dHNLNvcBRAHqucV

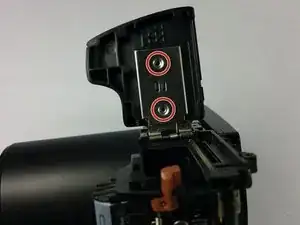

    • Remove the two circled 2mm screws with a Phillips #00 screwdriver.

  3. bbP42RoDRfMVKK3B

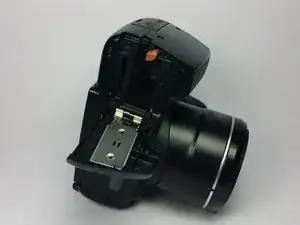

    • Slide the metal battery contact away from the battery compartment cover.

  4. jxHWpIcIfvgEolpI

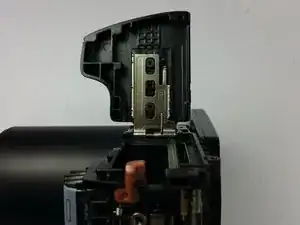

    • Remove the battery compartment cover from the metal bracket.

  5. IgyuXrsIeVKeEE1e

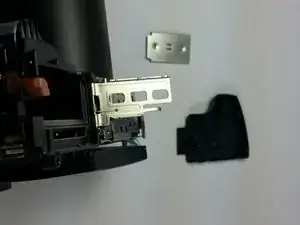

    • Replace either the internal metal battery contact or external battery compartment cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
