Canon Selphy CP720 Cooling Fan Replacement

Geschrieben von: Peter Ely
  • Kommentare: 0
Canon Selphy CP720 Cooling Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide shows how to replace the cooling fan on the Selphy CP720. This is done to fix overheating problems caused by a faulty fan.

  1. 16IC1xoXXsNVUS1V
    16IC1xoXXsNVUS1V
    rV2lsdpRBCYPuMRI

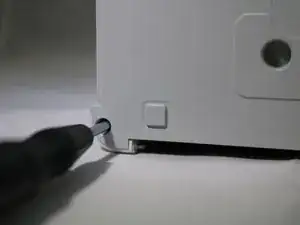

    • Remove the four 8mm Phillips #1 screws from the bottom of the printer.

  2. DJIAZ66jUtRFtCxX

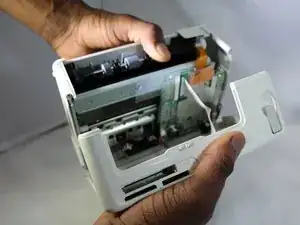

    • Gently lift the top half of the printer off its base

    • A data ribbon attaches the two halves, so don't pull hard and keep the two halves close together.

  3. WJui241KlAkd3MtE
    WJui241KlAkd3MtE
    YwJlUpkCegNJqJcB
    XkJgYiMERN2Sodel

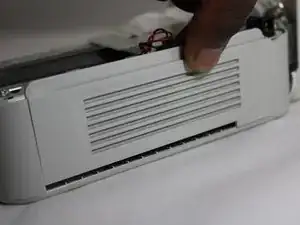

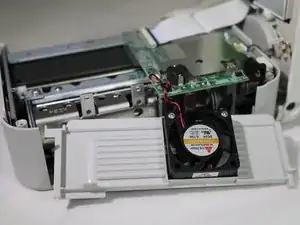

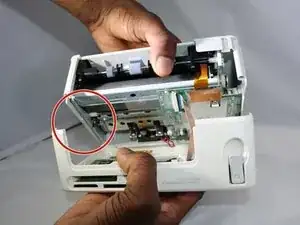

    • Remove the side panel by lifting it out.

  4. CXCkSuhPxDyq1XYk
    CXCkSuhPxDyq1XYk
    UvBZyTNiYLpbXDNs

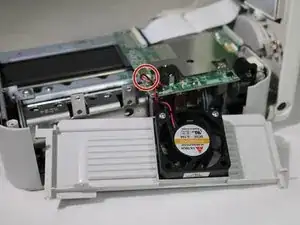

    • Unplug the fan from the circuit board by gently pulling on the wire connector at the base of the port.

    • Do not tug on the wires. Slowly increasing force as you pull is the best way to detach the wires.

  5. IckEYRQHCJuCrOlO

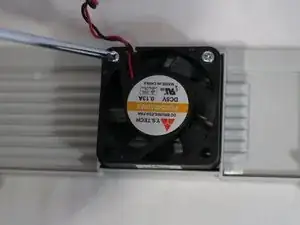

    • Unscrew the two 8mm Phillips #1 screws from the fan.

    • Remove the fan from the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
