Canon Selphy CP910 Buttons Replacement

Geschrieben von: Christie Peralta
  • Kommentare: 2
Canon Selphy CP910 Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

2 - 4 Minuten

Einleitung

The Canon Selphy CP910 is used to print pictures from a camera and WiFi connection. If there are any issues with the buttons on the printer, it may be necessary to remove them. For information regarding troubleshooting issues with the Canon Selphy CP910, go to Canon Selphy CP910 Troubleshooting.

Contact the manufacturer for inquiries about receiving parts of the Canon Selphy CP910.

  1. 2pCUDX3Pagfu3RhQ
    2pCUDX3Pagfu3RhQ
    KijFhMIZ4TCywXyY

    • Turn the printer over.

    • Use the PH1 screw bit to remove the three 8 mm screws in the middle of the back plate.

    • Keep track of these screws because you will need them to reassemble the printer.

  2. YZGkWBhe3t4rvLJB
    YZGkWBhe3t4rvLJB
    ThqRsbV1NDFS5jfv
    bWuXBFsFWZMRb1ZY

    • Loosen up the four 10 mm corner screws.

    • A screwdriver with a long shaft approximately 7mm in diameter will make it easier to reach these screws.

  3. cfjaCwAgne1Yqs1s
    cfjaCwAgne1Yqs1s
    euZEyHfAT1v6ehFk
    cxrU62kJAXwwIQWI

    • Turn the device around and remove the "open" lid.

    • This lid needs to be removed in order to take the printer apart.

    • Gently bend the lid and remove it from its hinges.

  4. YRZOMpokqVSxMfU2
    YRZOMpokqVSxMfU2
    22E1THhOTiSsNWLs
    eDNwuwoevefePGeK

    • Turn the device back over and lift the top panel up.

    • Disconnect the ribbon cables leading to the LCD screen.

    • Pull the top panel off.

    Funktioniert auch mit Selphy CP520 aber mit PH2 Schraubenzieher in Schritt 1 und PH 00x2mm im Schritt 2

    trilex1 -

    The top panel is really tight, i must have broken the body since it is very tight, please be careful while open the top panel

    Alvin -

  5. XSjTyUcGJrlwMiTU
    XSjTyUcGJrlwMiTU
    3j4AGeKfnHyi1B4D

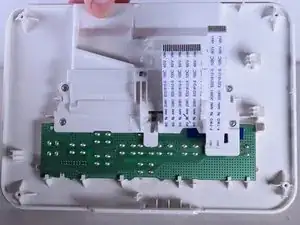

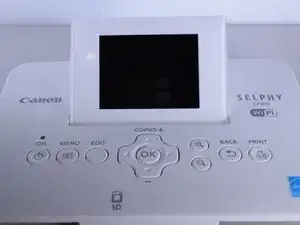

    • Turn the top panel over so the inside faces toward you.

  6. PTTgGx11iqrPoOkA
    PTTgGx11iqrPoOkA
    Ru33wQvxcK1R2FeX
    dUaQW3DUnHttZxxB

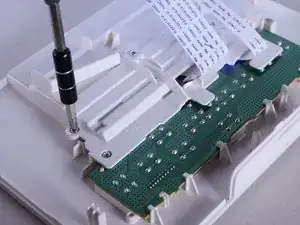

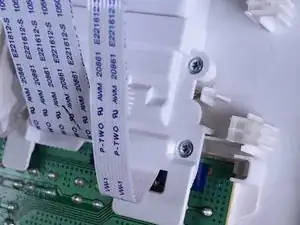

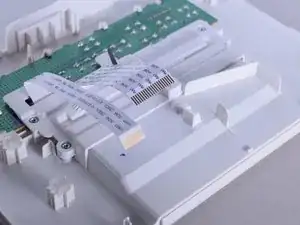

    • Use the PH0 screw bit to remove the five 10 mm screws located above the circuit board.

  7. DeMpaQ2SNUhjNRR5
    DeMpaQ2SNUhjNRR5
    AMxyBQerUBaeKUQS

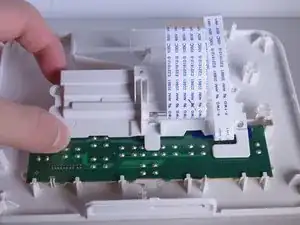

    • Carefully remove the frame attached to the screen.

  8. YZGxsSUD2Q4hEMko
    YZGxsSUD2Q4hEMko
    c4dbLbpV4YBQEkan
    aFgkIgk5RHbEIbEx

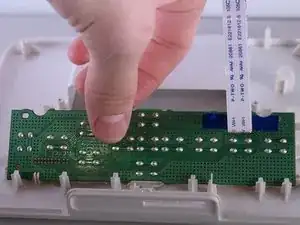

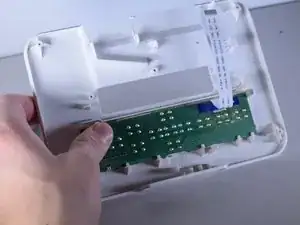

    • Take out the circuit board.

    • Once you take out the circuit board, you should be left with just the case.

  9. U3sVDqvRMNYkX3JC
    U3sVDqvRMNYkX3JC
    O2JQVNBDLHCHVjUX

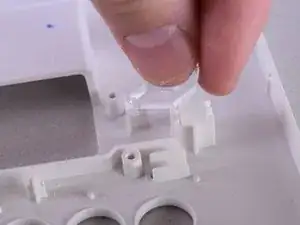

    • There is a clear plastic “L” shaped piece that acts as the power light for the printer. The piece is not attached to the printer so take care not to lose it.

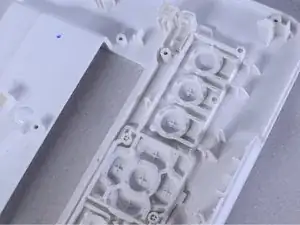

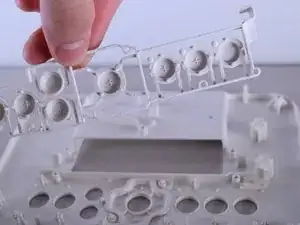

    • Remove the button framework and replace it with new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
