Canon Selphy CP910 LCD Screen Replacement

Geschrieben von: Christie Peralta
  • Kommentare: 2
Canon Selphy CP910 LCD Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 - 4 Minuten

Einleitung

The Canon Selphy CP910 is used to print pictures from a camera and WiFi connection. If there are any issues with the LCD screen of the printer, it may be necessary to remove it. For information regarding troubleshooting issues with the Canon Selphy CP910, go to Canon Selphy CP910 Troubleshooting.

Contact the manufacturer for inquiries about receiving parts of the Canon Selphy CP910.

  1. 2pCUDX3Pagfu3RhQ
    2pCUDX3Pagfu3RhQ
    KijFhMIZ4TCywXyY

    • Turn the printer over.

    • Use the PH1 screw bit to remove the three 8 mm screws in the middle of the back plate.

    • Keep track of these screws because you will need them to reassemble the printer.

  2. YZGkWBhe3t4rvLJB
    YZGkWBhe3t4rvLJB
    ThqRsbV1NDFS5jfv
    bWuXBFsFWZMRb1ZY

    • Loosen up the four 10 mm corner screws.

    • A screwdriver with a long shaft approximately 7mm in diameter will make it easier to reach these screws.

  3. cfjaCwAgne1Yqs1s
    cfjaCwAgne1Yqs1s
    euZEyHfAT1v6ehFk
    cxrU62kJAXwwIQWI

    • Turn the device around and remove the "open" lid.

    • This lid needs to be removed in order to take the printer apart.

    • Gently bend the lid and remove it from its hinges.

  4. YRZOMpokqVSxMfU2
    YRZOMpokqVSxMfU2
    22E1THhOTiSsNWLs
    eDNwuwoevefePGeK

    • Turn the device back over and lift the top panel up.

    • Disconnect the ribbon cables leading to the LCD screen.

    • Pull the top panel off.

    Funktioniert auch mit Selphy CP520 aber mit PH2 Schraubenzieher in Schritt 1 und PH 00x2mm im Schritt 2

    trilex1 -

    The top panel is really tight, i must have broken the body since it is very tight, please be careful while open the top panel

    Alvin -

  5. wI1cRevutBOL1UP4
    wI1cRevutBOL1UP4
    GCnontGiPhjqQxAC
    HbJckHwkyFmVgWJy

    • Once you detach the top, turn the device around.

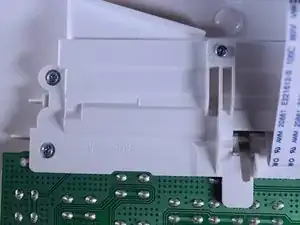

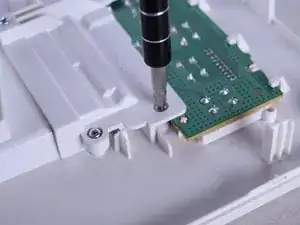

    • Use the PH0 screw bit to remove the five [size] screws.

  6. VtDPBwEAMAphcuVj
    VtDPBwEAMAphcuVj
    VcrmHgFsiEMwweaZ
    3qXPWdkmgnAo6ZUH

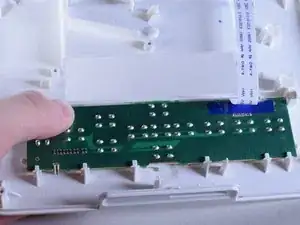

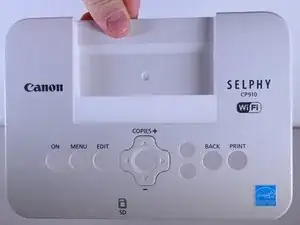

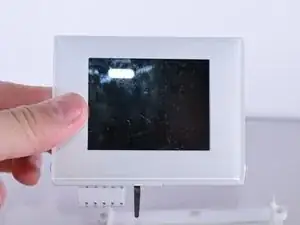

    • Push out the LCD screen from the main case.

    • The screen should slide out freely.

  7. JMXsExAWhFnhEEKY
    JMXsExAWhFnhEEKY
    6jQD2KjbrUrVdxmG
    LPsKpYkf6hf6qIx2

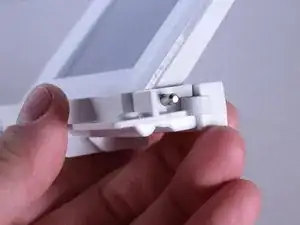

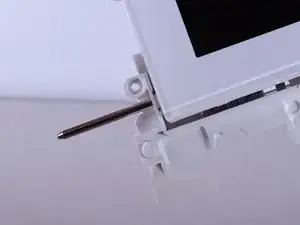

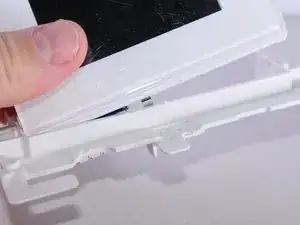

    • Pull out the rod connecting the LCD screen to the frame.

    • Insert the new screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
