Einleitung

The Canon Selphy CP910 is used to print pictures from a camera and WiFi connection. If there are any issues with the body of the printer, it may be necessary to remove it. For information regarding troubleshooting issues with the Canon Selphy CP910, go to Canon Selphy CP910 Troubleshooting.

Contact the manufacturer for inquiries about receiving parts of the Canon Selphy CP910.

  1. 2pCUDX3Pagfu3RhQ
    2pCUDX3Pagfu3RhQ
    KijFhMIZ4TCywXyY
    • Turn the printer over.

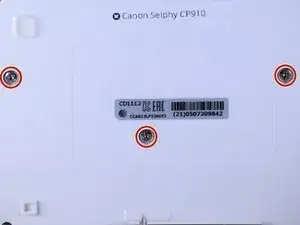

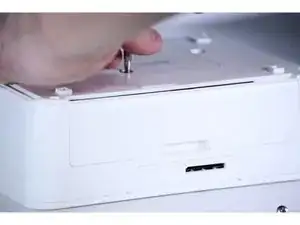

    • Use the PH1 screw bit to remove the three 8 mm screws in the middle of the back plate.

    • Keep track of these screws because you will need them to reassemble the printer.

  2. YZGkWBhe3t4rvLJB
    YZGkWBhe3t4rvLJB
    ThqRsbV1NDFS5jfv
    bWuXBFsFWZMRb1ZY

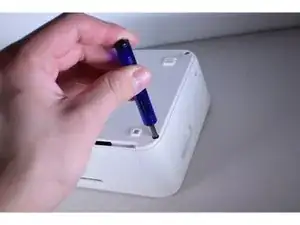

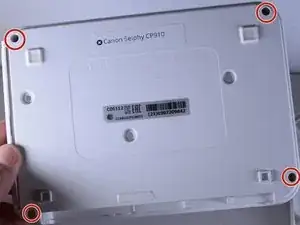

    • Loosen up the four 10 mm corner screws.

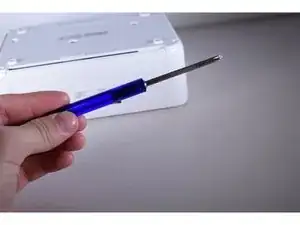

    • A screwdriver with a long shaft approximately 7mm in diameter will make it easier to reach these screws.

  3. cfjaCwAgne1Yqs1s
    cfjaCwAgne1Yqs1s
    euZEyHfAT1v6ehFk
    cxrU62kJAXwwIQWI

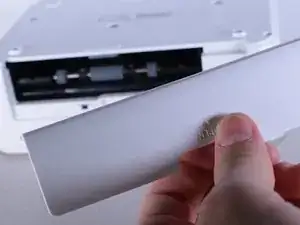

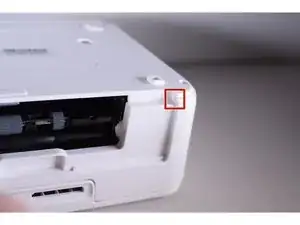

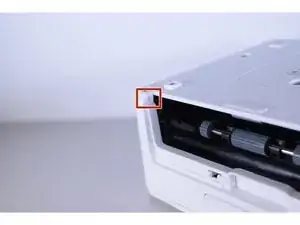

    • Turn the device around and remove the "open" lid.

    • This lid needs to be removed in order to take the printer apart.

    • Gently bend the lid and remove it from its hinges.

  4. YRZOMpokqVSxMfU2
    YRZOMpokqVSxMfU2
    22E1THhOTiSsNWLs
    eDNwuwoevefePGeK

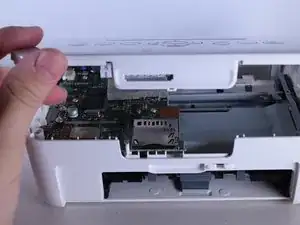

    • Turn the device back over and lift the top panel up.

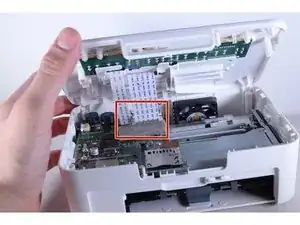

    • Disconnect the ribbon cables leading to the LCD screen.

    • Pull the top panel off.

    Funktioniert auch mit Selphy CP520 aber mit PH2 Schraubenzieher in Schritt 1 und PH 00x2mm im Schritt 2

    trilex1 -

    The top panel is really tight, i must have broken the body since it is very tight, please be careful while open the top panel

    Alvin -

  5. JM3TJgG3Hx4HPlOc
    JM3TJgG3Hx4HPlOc
    TSGQdHHD1fYgAMFT

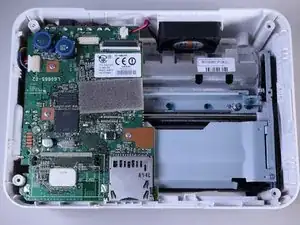

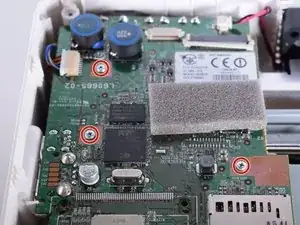

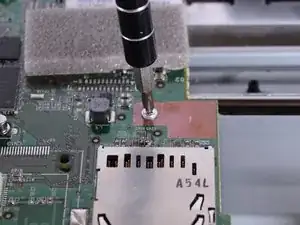

    • Use the PH1 screw driver to remove the three screws on the motherboard.

  6. qPmZGXleYVWkOlRq
    qPmZGXleYVWkOlRq
    1mCbF5JKaFso6My2

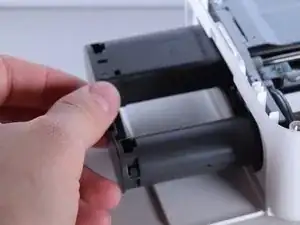

    • Remove the printer.

    • This will prevent the printer from falling out during repair.

  7. 6eppvW5KUE2MEQwr
    6eppvW5KUE2MEQwr
    jT52ADj3P5lg2Agt
    4QGlJlUxZJbnafIS

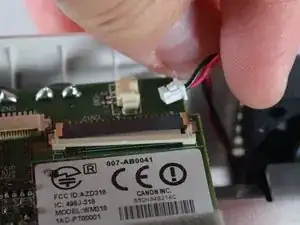

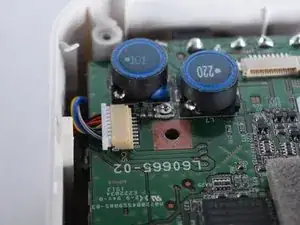

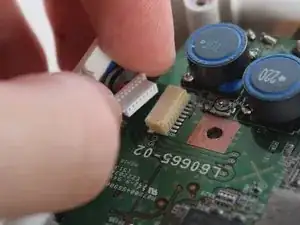

    • Remove the output connections.

    • Be careful! Do not pull too hard because the wires might rip.

    • Output connections are located on the corners of the motherboard.

  8. ceX6NCoLliNHJFoU
    ceX6NCoLliNHJFoU
    6iLo1mnjSi3FBp5A

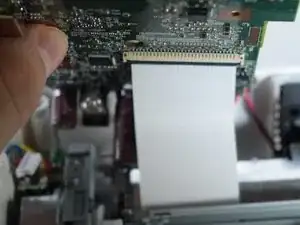

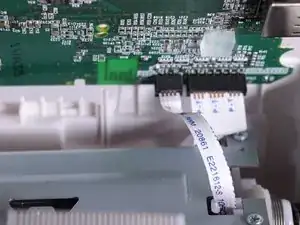

    • The motherboard is attached to three more ribbon wires.

    • Detach these wires.

    • Be careful not to pull too hard.

  9. 3ME4kSNrdZtvLrIi
    3ME4kSNrdZtvLrIi
    OIMt5qeWDXYPSYLD

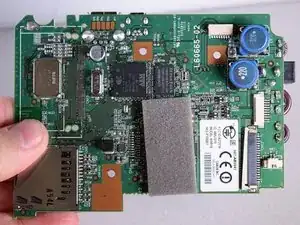

    • Separate the motherboard from the main hard drive.

  10. UAlInEOiVtpfELfK
    UAlInEOiVtpfELfK
    TUKA6KLsMyJGKqLZ
    VdYSvMO6dXvPGjFS

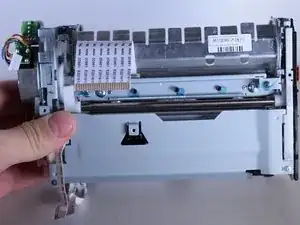

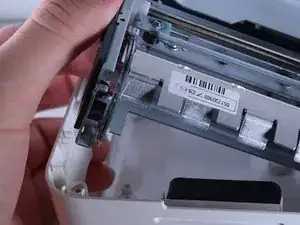

    • Remove the main hard drive from the printer body.

  11. sIPlsQ1WY5CuU2aq
    sIPlsQ1WY5CuU2aq
    veSRwgOnHbXDO32M

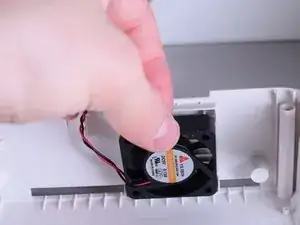

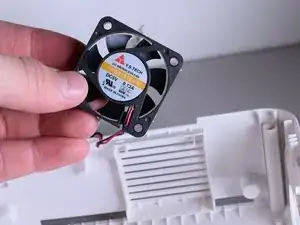

    • Gently remove the fan from the body.

    • The fan is glued to the case. When you install it in the new body, use hot glue to secure it in place.

  12. PysiWTqWpIJmEH1e
    PysiWTqWpIJmEH1e
    anjt2oWVwLFAP561

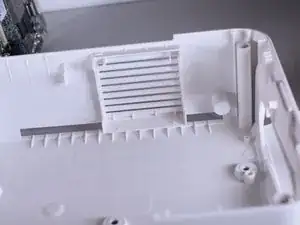

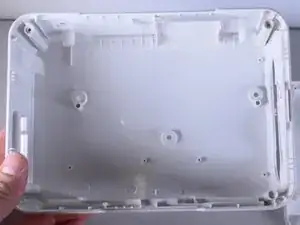

    • The empty case will look like this once all the parts are removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
