This guide will show you how to remove the mode selection wheel from the Canon Sure Shot Z115 Caption Camera. This could be useful if you want to replace the mode selection wheel or if the wheel on your camera stops functioning normally and you want to try to fix it.
Werkzeuge
Ersatzteile
-
-
Push down on the black switch located on the side of the camera. This will cause the back of the camera to pop open.
-
-
-

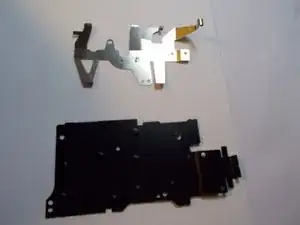

Pull on the metallic piece that is sticking out from underneath the plastic. This will allow you to remove both the piece of black plastic and the metallic piece from the camera.
-
-
-

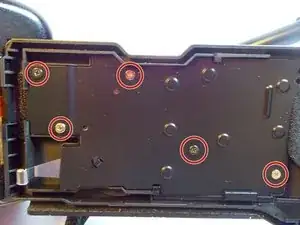

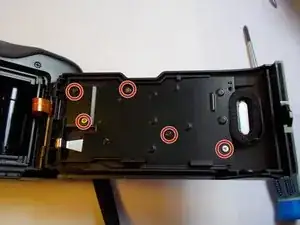

You should now see the a strip of black plastic covering the back of the display's logic board. Remove the screw circled in red.
-
-
-

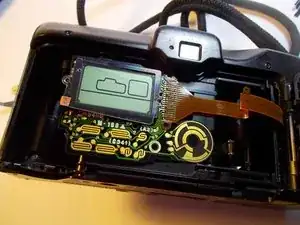

Pull on the orange cable connected to the logic board to lift the logic board out of place.
-

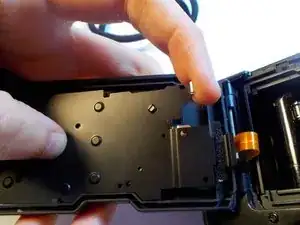

Move the logic board out of the way, as it is covering the screw that holds the wheel in place.
-
-
-

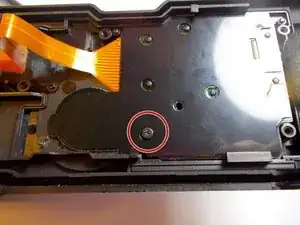

Remove the screw that is circled in red. This is the screw that holds the mode selection wheel in place.
-
-
-

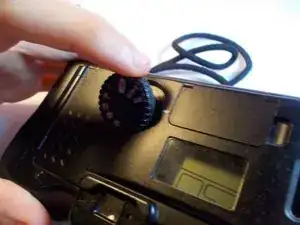

With the screw holding it in place removed, the mode selection wheel should come right off. Simply remove it from its socket.
-
Congratulations, you have successfully removed the mode selection wheel from your camera. To reassemble your device, follow these instructions in reverse order.
