Einleitung

This guide will show you how to remove and replace the LCD display panel of the Vixia HF R62.

  1. bXpqptbUXqUYdRaI
    bXpqptbUXqUYdRaI
    hAti3NPN4VIM6MPX
    • Remove the strap by undoing the Velcro and pulling it through the thread points.

    • Remove the external battery pack by pressing down on the slide release and sliding it out.

  2. YDJgJFDa3lffdMUn
    YDJgJFDa3lffdMUn
    EcwJ4G2nDLnQJsrA
    • Remove the three 5mm Phillips #000 screws on the bottom of the device.

  3. 4QNAFYyLEeDHtYGV
    4QNAFYyLEeDHtYGV
    cKyPfi1ORwURNkFF
    • On the side of the device, remove the following Phillips #000 screws:

    • One 3mm screw

    • One 5mm screw

  4. aKChsewJBPbrE1HW
    aKChsewJBPbrE1HW
    KjpPR211wtR6Dgic
    • Remove the panel opposite the display by pulling up perpendicular to the side.

  5. WRRNqtBMKjfVakXQ
    • Remove the 4mm Phillips #000 screw that was exposed after taking off the side panel.

  6. WWhWYHQLcLi5QZ1s
    WWhWYHQLcLi5QZ1s
    QccSaYG5KSK6sg6U
    • Remove the three 4mm Phillips #000 screws shown.

    • There will be foam covers protecting some or all of these screws. These will need to be removed before you will be able to unscrew them.

  7. 1Q6IJQvHVYotmrFk
    1Q6IJQvHVYotmrFk
    Z6cGXrrcePuBXMZN
    IMQmxUPRVZ4wvTks
    • Using tweezers, disconnect this ribbon cable by pulling straight out.

  8. ug2rJkM6WkuGZ3pf
    ug2rJkM6WkuGZ3pf
    onPvXtBSunsltqxP
    6lXmerQTZPulvatr
    • Repeat step seven (7) for the remaining three wires shown.

  9. 3scJHJR4JnhAUhU4
    3scJHJR4JnhAUhU4
    mdYL5WVPElQksapu
    JvAbQFUdDqBSODsG
    • Grasp the top of the camera and pull straight up to remove the top panel.

  10. Racjh4FXaiOwMwUV
    • Remove the 5mm Phillips #000 screw on top of the inner case.

  11. 4wplxMQKOHWJqJG1
    4wplxMQKOHWJqJG1
    MnLImMnSBpuX4kR5
    • Remove the two 5mm Phillips #000 screws near the display panel.

  12. iU1VQcJApHtmYgQf
    iU1VQcJApHtmYgQf
    EgrSGUGYvlnNpRCC
    • Disconnect the small bundled cable connector on the side of the lens cover by pulling it straight out.

  13. gRVFJiAfE1WYmmfB
    gRVFJiAfE1WYmmfB
    iFPMBpkJxXx3MFeo
    • Remove the lens cover by pulling straight away from the body.

  14. 3WrtC1MdIR3nAULH
    3WrtC1MdIR3nAULH
    OuYICdGC2GRuvPrb
    • Remove the three 6mm Phillips #000 screws shown.

  15. km3OAEYnNmFtSBlJ
    km3OAEYnNmFtSBlJ
    1dkqZMolMOWLxaCH
    • Remove the lens by pulling straight away from the main body.

    • Be aware of the small rubber gasket around the lens as it may come loose.

  16. NKFEjFUfNQLaOZNU
    NKFEjFUfNQLaOZNU
    IKCBTMGsL4GsacOL
    ewaD1vA2QSTIrgPF
    • Remove the two 3mm Phillips #000 screws.

    • Remove the 4mm Phillips #000 screw.

  17. BEoLRm4NUOJEaDTA
    BEoLRm4NUOJEaDTA
    lLjmiSG5W2VH2YGo
    • Disconnect the ribbon cable shown.

  18. bwCGuU1EZspWOhyJ
    • Remove the 4mm Phillips #000 screw at the bottom of the camera.

  19. 2gNLgqY2cZFFCVeX
    2gNLgqY2cZFFCVeX
    SaRFGnWSXpOOdaeu
    gsMJR2rsrPDDoCBL
    • Place the spudger under the tab shown.

    • While prying the tab up with the spudger, pull the case away.

  20. JWEOBu5IJpoxFXt2
    JWEOBu5IJpoxFXt2
    ZTXZvvrKVEUBWLLA
    TAGiMyludNhTKhrI
    • Using a spudger, disconnect the ribbon cable connector from the PC board shown in the picture.

  21. 1dLZkShifOgTnYff
    1dLZkShifOgTnYff
    rpfhSECAIaJMIQop
    • Using tweezers, disconnect the ribbon cable shown in the picture by pulling straight out.

  22. mthFx62vYM5mFyaO
    mthFx62vYM5mFyaO
    OpNZti5oEBknYqDd
    Fs6BtWNSM3whHkmN
    • Using a spudger, gently pry up the top tab on the ZIF connector. The wire will now disconnect with no force needed.

    • When reassembling you will need to place the ribbon wire tightly against the tab in order to properly secure it.

  23. rXaSKXDEbYCE1SQD
    rXaSKXDEbYCE1SQD
    EVWbp1VMuEqUrOS3
    SfpQXeK3UFeyDcmM
    • Using your fingers, firmly grasp both ends of the capturing device and gently pull the assembly straight out.

  24. thYqgeQOIFVfmImT

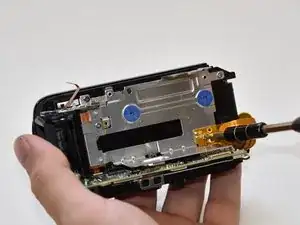

    • Remove the 3mm Phillips #000 screw holding the display's ribbon wire to the casing.

  25. TNHVYbmtIefyTlm2
    TNHVYbmtIefyTlm2
    GnlgGHKcEiTIUPSR
    SnvInyZT3lXO5XOp

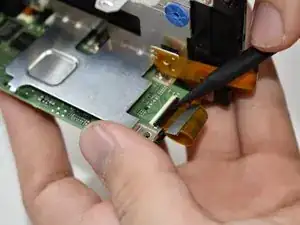

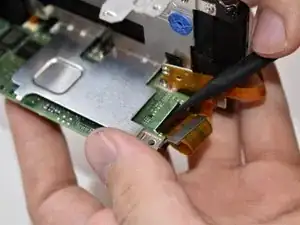

    • Undo the ZIF connector from the motherboard using a plastic spudger. Use the spudger to pry the small tab on top of the ZIF connector and the ribbon cable will fall free.

    • When reassembling, you will need to place the ribbon cable tightly against the tab in order to properly secure it.

  26. AeCx6CeV2fEh3utC
    AeCx6CeV2fEh3utC
    uQVPdIpeMG2SW2FD

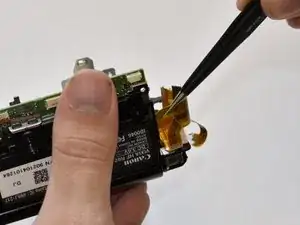

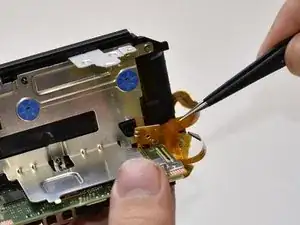

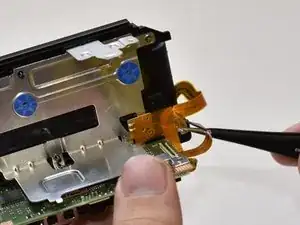

    • There is a small component of the ribbon cable clipped to the casing. Remove this by pulling it away from the casing with tweezers.

    • Some of the ribbon may become entangled in the clips that held the component. Ensure they are untangled before the display is removed to avoid damage.

  27. EFhZQnvpN4KHRPiR
    EFhZQnvpN4KHRPiR
    mavLvNkoPIijgRO3
    5PoK1LJiBFJeOWDa

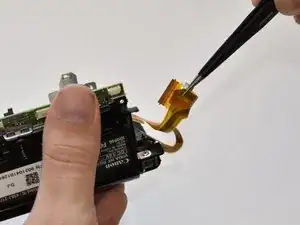

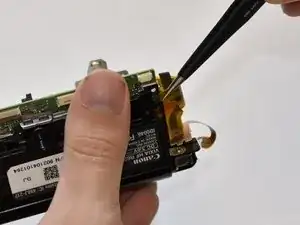

    • The ribbon cable is also looped around a piece of the casing under the motherboard. Unfasten this cable with tweezers by sliding down and then pulling out.

  28. fsCVqPMvg3CTHiuS
    fsCVqPMvg3CTHiuS
    fh5kImuVTiFEdwGL

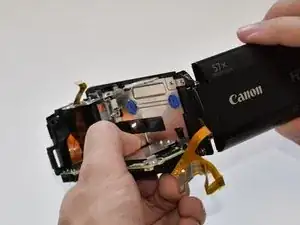

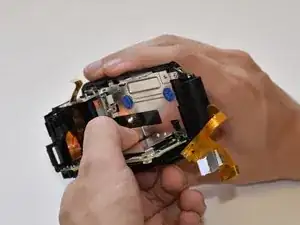

    • Open the display panel.

    • This will help during the reassembly as one of the hinges locks in place and is difficult to reassemble if in the closed position.

  29. dgP2GU2lhhtW56t4
    dgP2GU2lhhtW56t4
    pUSGSIQHYCNRaRxR

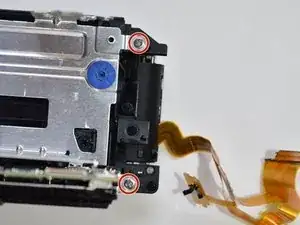

    • Remove the two 3mm Phillips #000 screws connecting to the display panel's hinges.

  30. gnVrVpD1JEqDkARb
    gnVrVpD1JEqDkARb
    CD2KN5DdYsJrBZWx

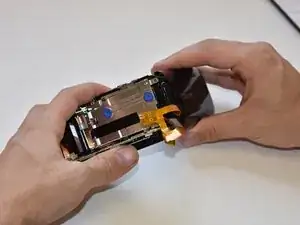

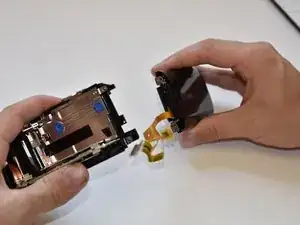

    • Remove the display panel by pulling the display straight away from the body.

Abschluss

To reassemble your device, follow these instructions in reverse order.
