Einleitung
For this particular fix you will need a few items; your hands, a plastic opening tool, a Phillips screw, and a magnetic mat to keep the screws in place. As well as a marker to organize where each screw needs to be placed when reassembling. It is important to have the audio speaker replaced so that the camcorder will have sound.
-
-

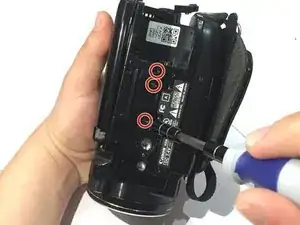

Turn the camcorder upside down and remove the three 3x4 mm Phillips screws securing the black plastic case.
-

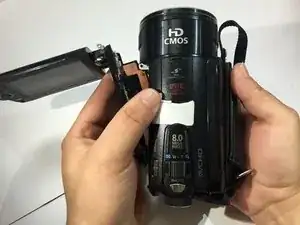

Flip open the LCD screen.
-
Remove the three 3x4 mm Phillips screws securing the black panel plastic case.
-
-
-

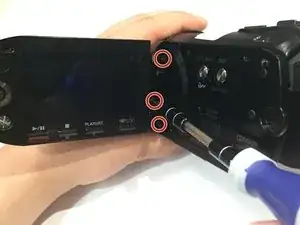

From the inner corner in between the panel and the LCD screen, remove the two 2x2.5 mm Phillips screws and the 3x4 mm Phillips screw.
-
Remove the black plastic covering with your fingers. Underneath the covering, you will find a screw hinge.
-
Remove the 2x2.25 mm Phillips screw located at the top of the screw hinge.
-
-
-

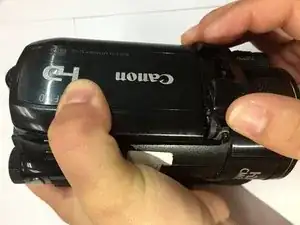

Using your fingers, remove the panel from the base of the camcorder.
-
After removing the panel, remove the two 2x2.25 mm Phillips screws located at the top right of the inside of the panel.
-

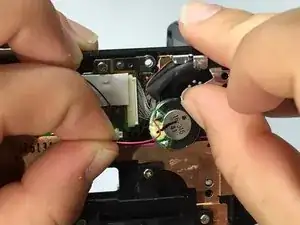

Using one hand, gently move the silver piece holding the speaker down while using the other hand to remove the speaker.
-
To reassemble your device, follow these instructions in reverse order.
