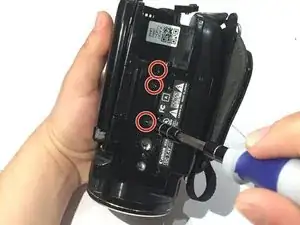

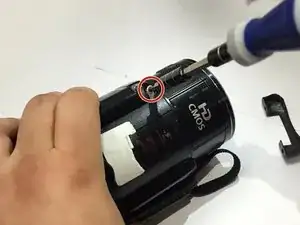

Turn the camcorder upside down and remove the three 3x4 mm Phillips screws securing the black plastic case.
-
-
-

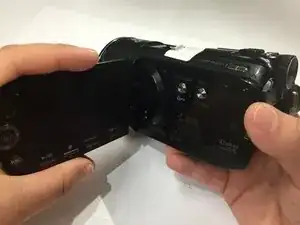

Flip open the LCD screen.
-

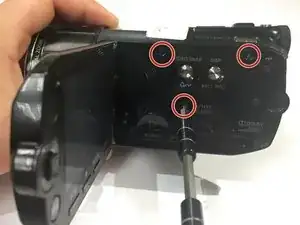

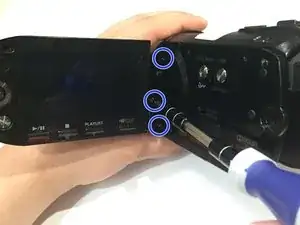

Remove the three 3x4 mm Phillips screws securing the black panel plastic case.
-
From the inner corner in between the panel and the LCD screen, remove the two 2x2.5 mm Phillips screws and the 3x4 mm Phillips screw.
-
-
-
Using your fingers, remove the black plastic covering. Underneath the covering, you will find a screw hinge.
-
Remove the 2x2.5 mm Phillips screw located at the top of the screw hinge.
-

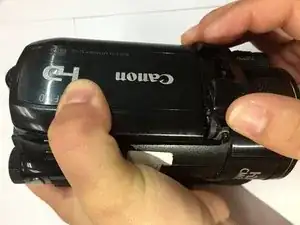

Using your fingers, remove the panel from the base of the camcorder.
-
-
-

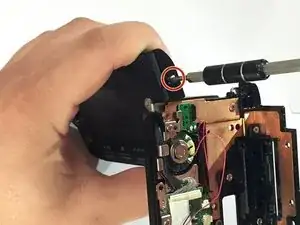

Remove the 2x2.5 mm screw from the right side of the plastic case surrounding the LCD screen.
-
Flip over the plastic case and remove the 2x2.5 mm screw.
-

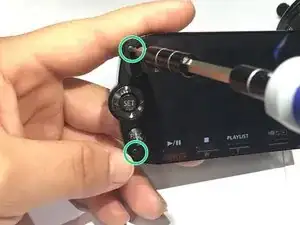

Remove the two 2x2.5 mm screws from the front plastic case.
-
-
-

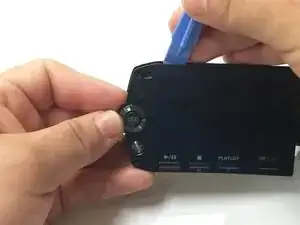

Using a plastic opening tool, pry off the plastic case surrounding the LCD screen.
-

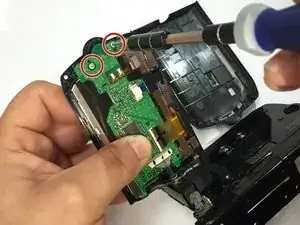

Remove the two 1x2.5 mm screws from the motherboard on the back of the LCD screen.
-

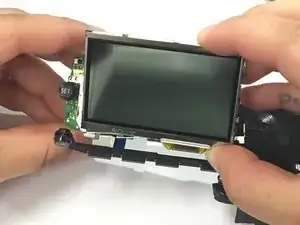

Gently pull off the motherboard from the LCD screen.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
Not enough detail to be really useful. For example,doesn't mention how to reconnect the ribbon strip. To be fair, no one else says how to be sure it's connected properly either.
