Einleitung
If your power button is jammed or isn't working properly, this guide will simply demonstrate on how to replace the power button in a Canon Vixia HF S10. For this particular fix, you will need a few items: your hands, a plastic opening tool, a Phillips screwdriver, and a magnetic mat to keep the screws in place.
-
-
Turn the camcorder upside down.
-

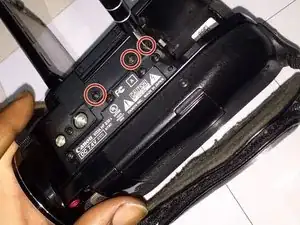

Remove the three 3x4 mm Phillips screws securing the black plastic case.
-
-
-
Flip open the LCD screen.
-

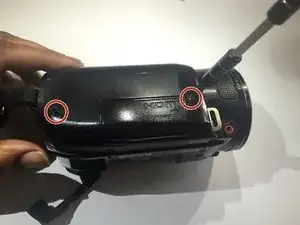

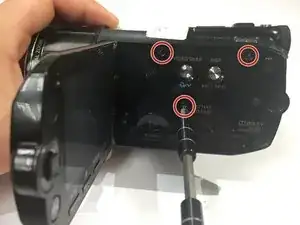

Remove the three 3x4 mm Phillips screws securing the black panel plastic case.
-
From the inner corner in between the panel and the LCD screen, remove the two 2x2.5 mm Phillips screws and the 3x4 mm Phillips screw.
-
-
-
Remove the black plastic covering with your fingers.
-

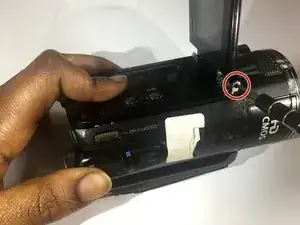

Remove the 2x2.25 mm Phillips screw located at the top of the screw hinge.
-
-
-

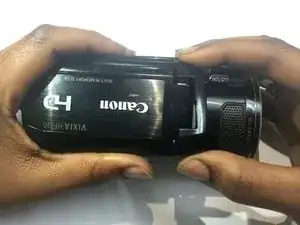

Using your fingers remove the panel from the base of the camcorder.
-

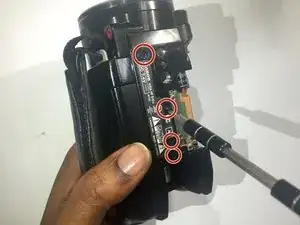

Once panel is off, remove the two 1x2.5 mm Phillips screws.
-
-
-

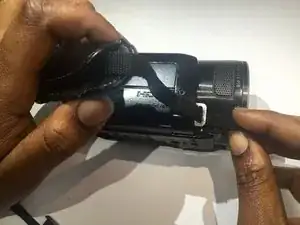

Turn the camcorder to the side and remove the strap.
-

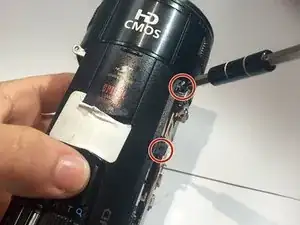

Remove the two 1x2.5 mm Phillips screws.
-
-
-

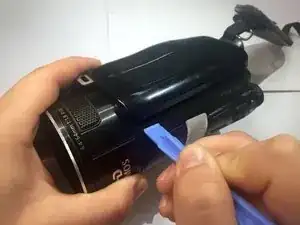

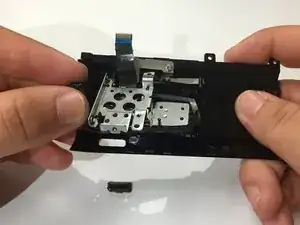

Using a plastic opening tool, pry off the side panel from the base of the camcorder.
-

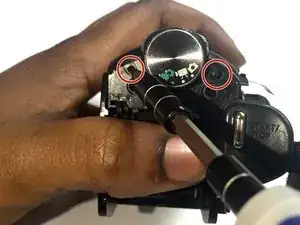

Remove the two 2x2.5mm Phillips screws located at the top
-
-
-

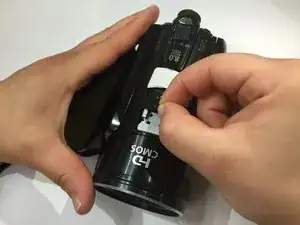

Slide open the "Optical Image Stabilizer" cover located at the top of the camcorder.
-

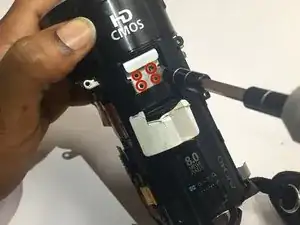

Remove the four 3x2.5 mm Phillips screws.
-
Using your fingers, remove the metal casing.
-
-
-

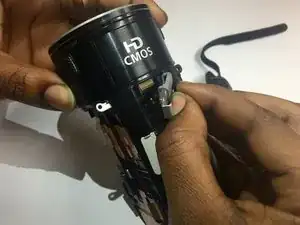

Using your fingers pop off the top cover of the camcorder.
-

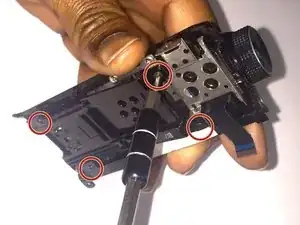

Remove the four Phillips screws located underneath the top cover..; three 3x4 mm Phillips screws and one 2x2.5 mm Phillips screw.
-

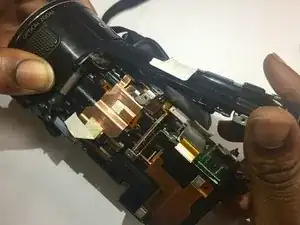

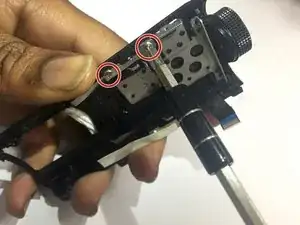

Remove the two 3x2.5 mm Phillips screws from the metal casing located underneath the top cover.
-
To reassemble your device, follow these instructions in reverse order.
