Canon Vixia HF20 Attachment Port for Optional Accessory Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. EOBg153RGTbyG2yl

    • Remove the mini advanced shoe from the top of the camcorder.

  2. tjEwI2jmMqilWueQ

    • Unscrew the four 6 millimeter screws with the Phillips screwdriver.

  3. 4QWgfTYriRpGmAvJ

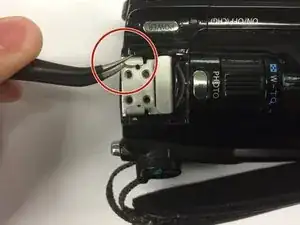

    • Carefully remove the silver plate with needle nose pliers.

    • Clean the silver plate with isopropyl alcohol and a cotton swab to remove any debris.

  4. MwmliGU4sdCYqWlT

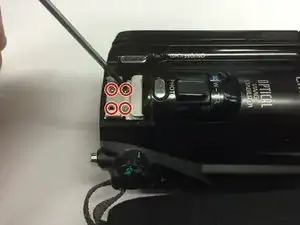

    • Reinsert the silver plate and the four 6 mm screws and screw them securely into their holes.

Abschluss

To reassemble your device, follow these instructions in reverse order.
